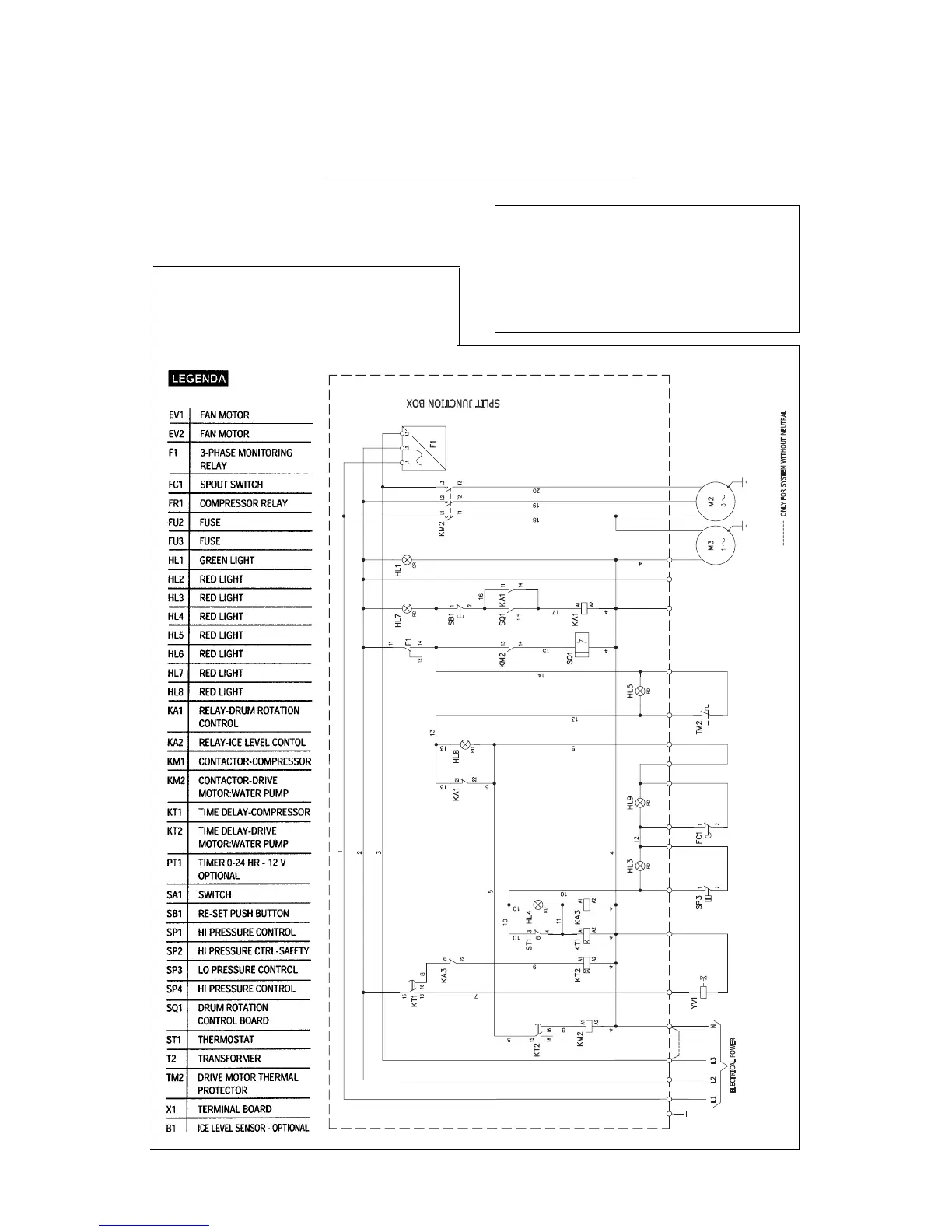

SECTION VIII
WIRING DIAGRAMS (MACHINE OPERATING)
This section is provided as an aid in under-
standing the electrical circuit of the MAR Split
Unit.
WARNING - When conducting a continuity
check of the MAR Unit:
1. Disconnect the main power source.
2. DO NOT use an incandescent lamp or
jumper wire, conduct all tests with a
voltohm-meter.
B - WHITE
G - GREY
M - BROWN
A - BLUE
N - BLACK
G-V - YELLOW-GREEN
MAR SPLIT
