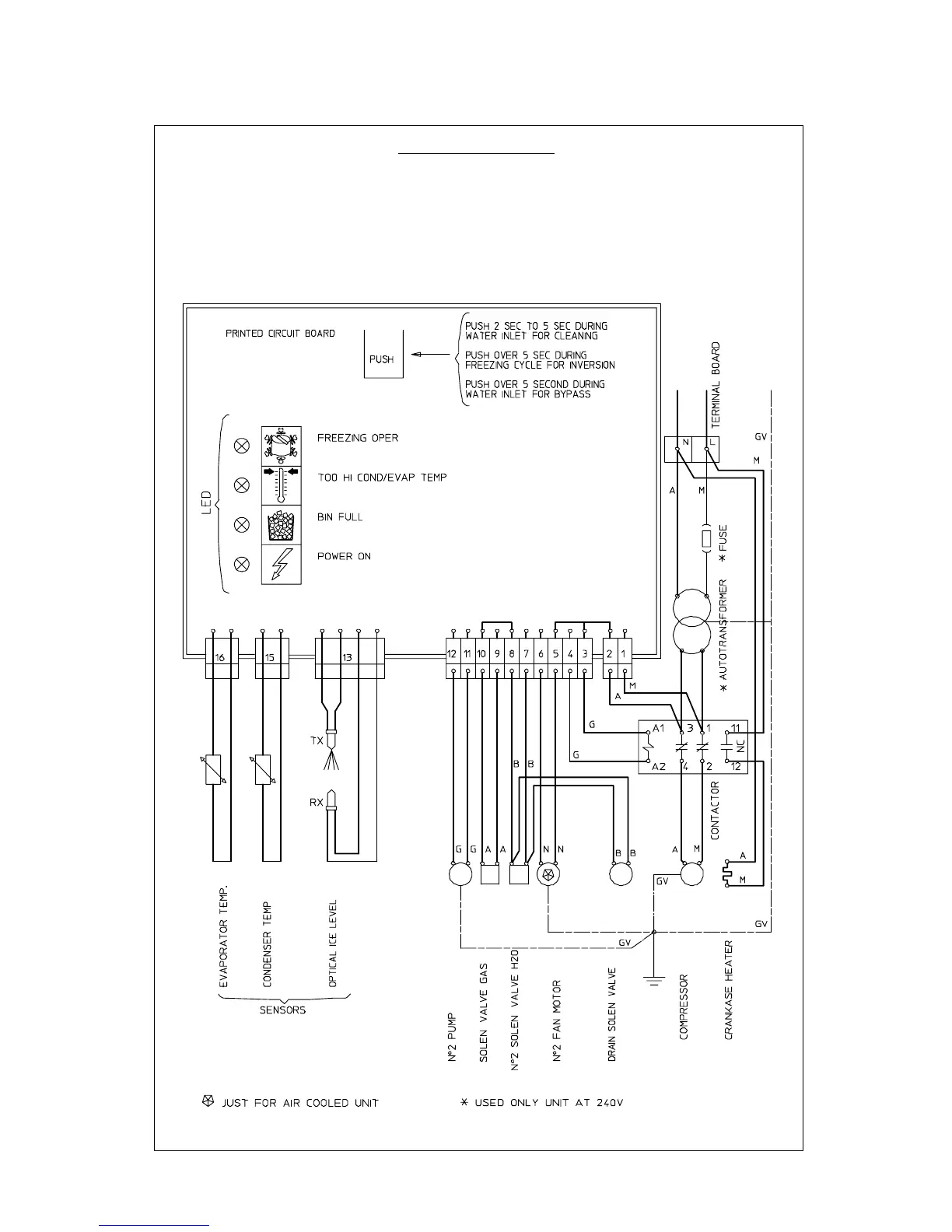

WIRING DIAGRAM
MC-45 A-W
230/50/1 - 240/50/1
B - WHITE
G - GREY
N - BLACK
A - BLUE
M - BROWN
GV - YELLOW GREEN
