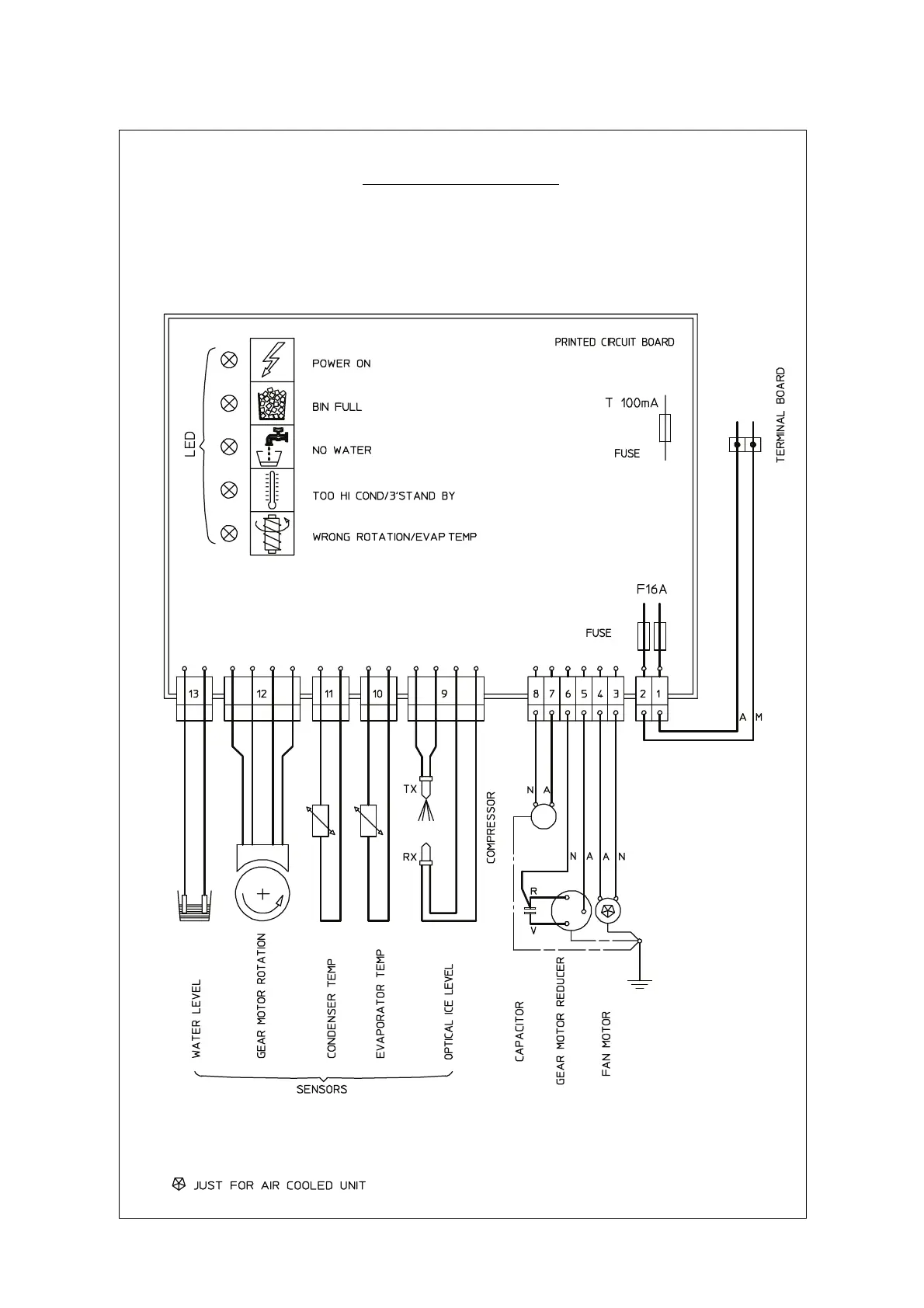

WIRING DIAGRAM MF 26-36
AIR AND WATER COOLED
230/50/1
Page 35
GV - YELLOW GREEN
B - WHITE
G - GREY
N - BLACK
A - BLUE
M - BROWN
V - GREEN
