FREEZE CYCLE
the evaporator surface by gravity. As it flows
accross the refrigerated evaporator, some of the
water will be chilled enough to change form, turn
to ice, and stay frozen onto the evaporator cells.
Most of the water returns to the reservoir, to be
sucked back into the pump, and repumped over
the evaporator.

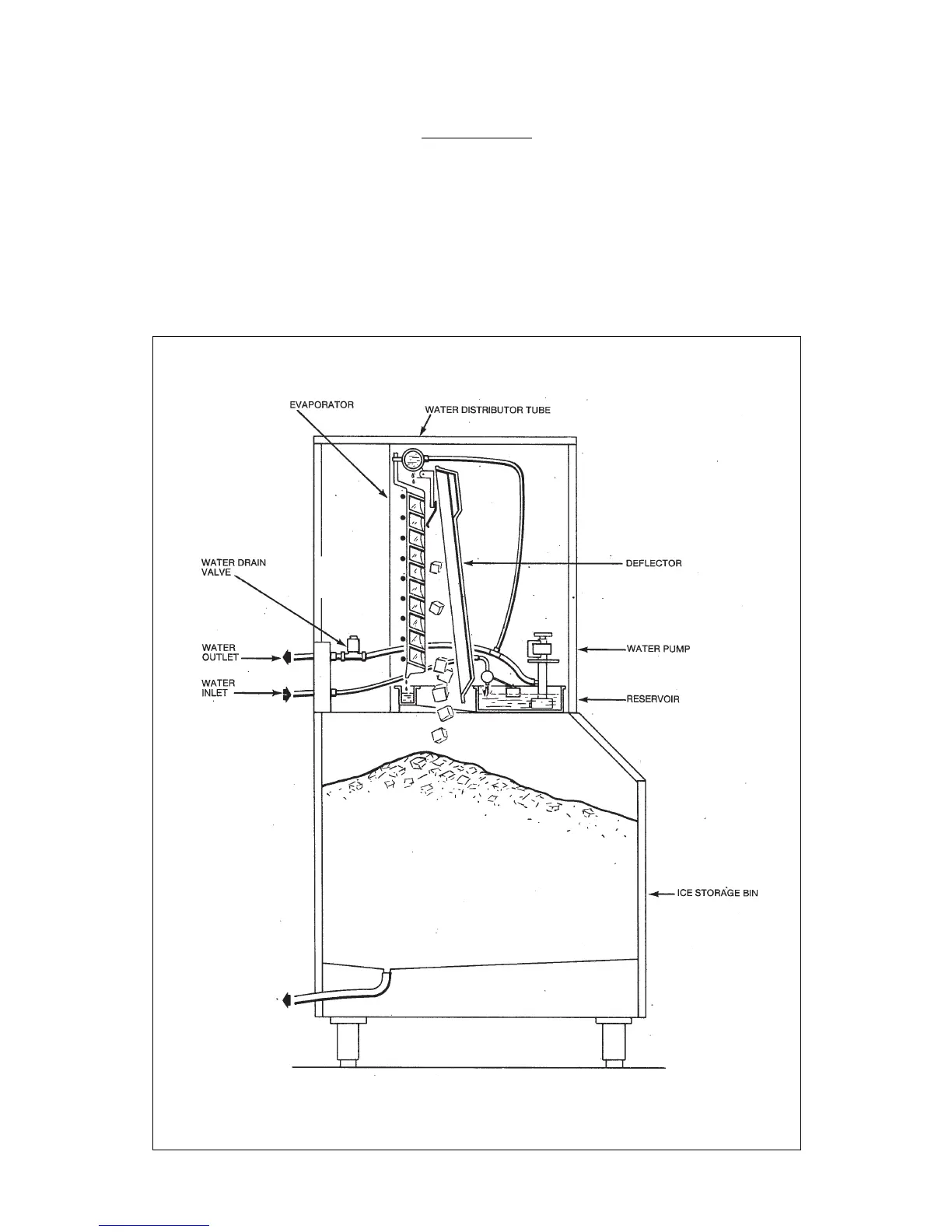

WATER SYSTEM
A mechanical float valve is used to control the
level of the water into the reservoir/sump.
A pump, running continuously, after the first
minute of freezing cycle, forces the water to the
top of the evaporators, where it is distributed
through a water tube and then cascades down
