E. Check to see through the ice discharge
opening that the self propeller spray bar is
correctly rotating and that the water jets uniformely
reach the interior of the inverted mold cups and
there is not excessive water spilling through it.
F. The ice making process takes place thereby,
with the water sprayed into the molds that gets
gradually refrigerated by the heat exchange with
the refrigerant flowing into the evaporator
serpentine.
16
15
14
13
2
1
7
8
9
10
3
4
5
6
11
12

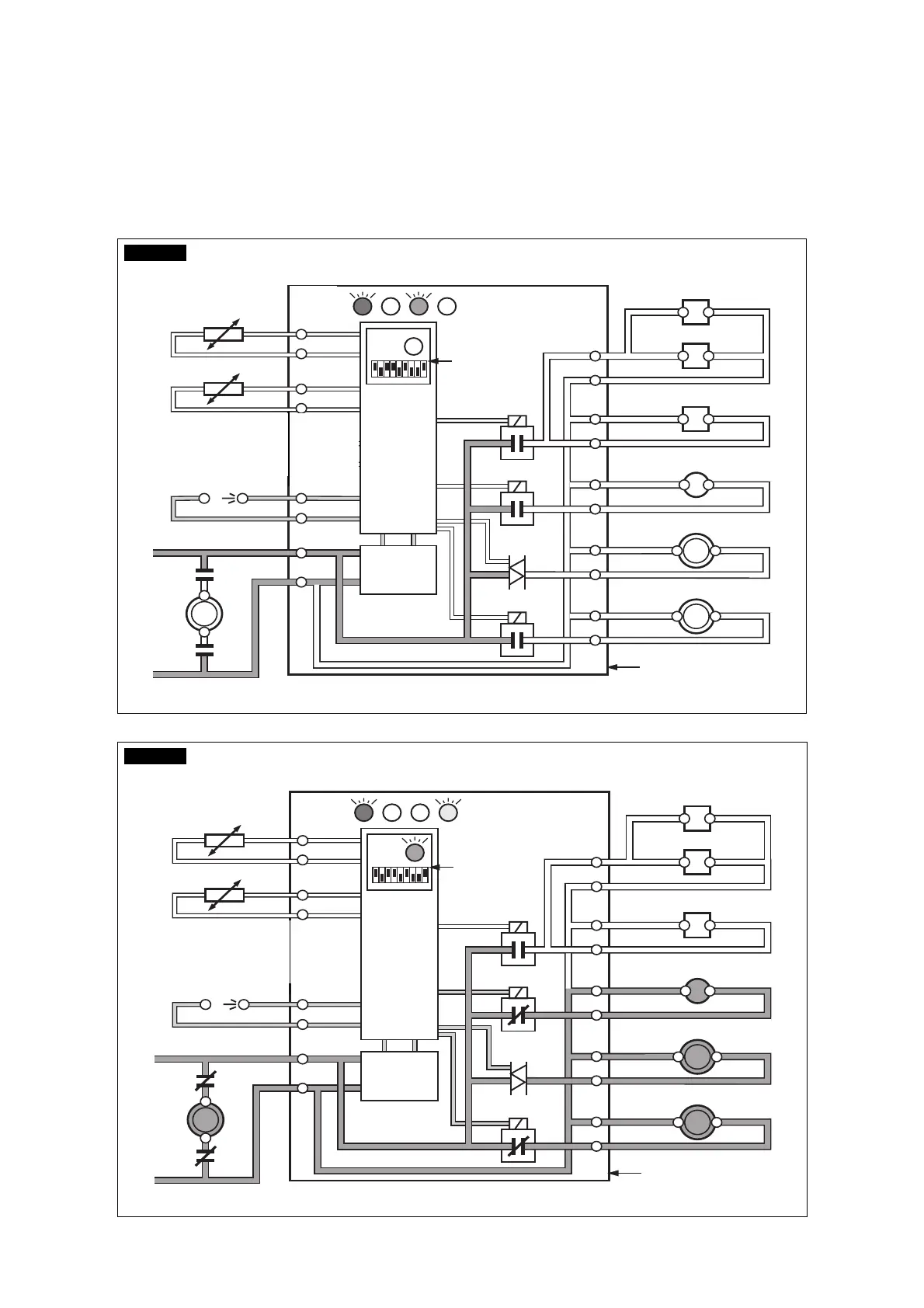

Rx Tx
