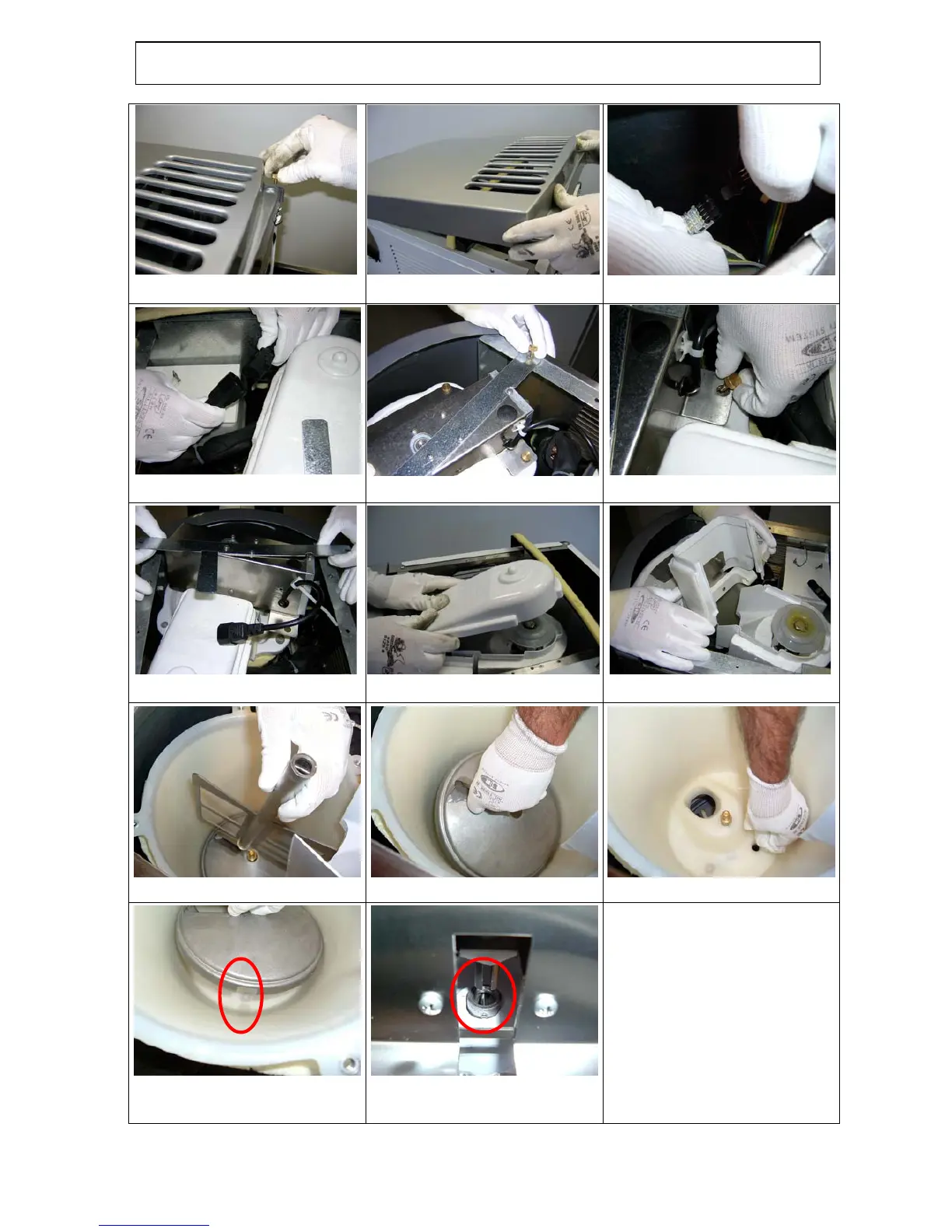

1 Unloose and remove the holding screws 2 Remove top panel 3 Unplug the ice level control connection
4 Unplug the drive motor connections… 5 Unloose the top bracket holding screws 6 Remove the bin cover holding screws
7 Lift up drive motor and bracket assembly 8 Remove spout plastic cover 9 Lift up and remove bin cover
10 Remove bin vane 11 Remove bin bottom 12 Clean/sanitize inside storage bin
13
Pay attention to the slot when place
again bin bottom
14
Pay attention to match drive motor
shaft with bin vane shaft pin when
place again the drive motor assy
TC 180 - CLEANING-SANITIZING INSTRUCTIONS
