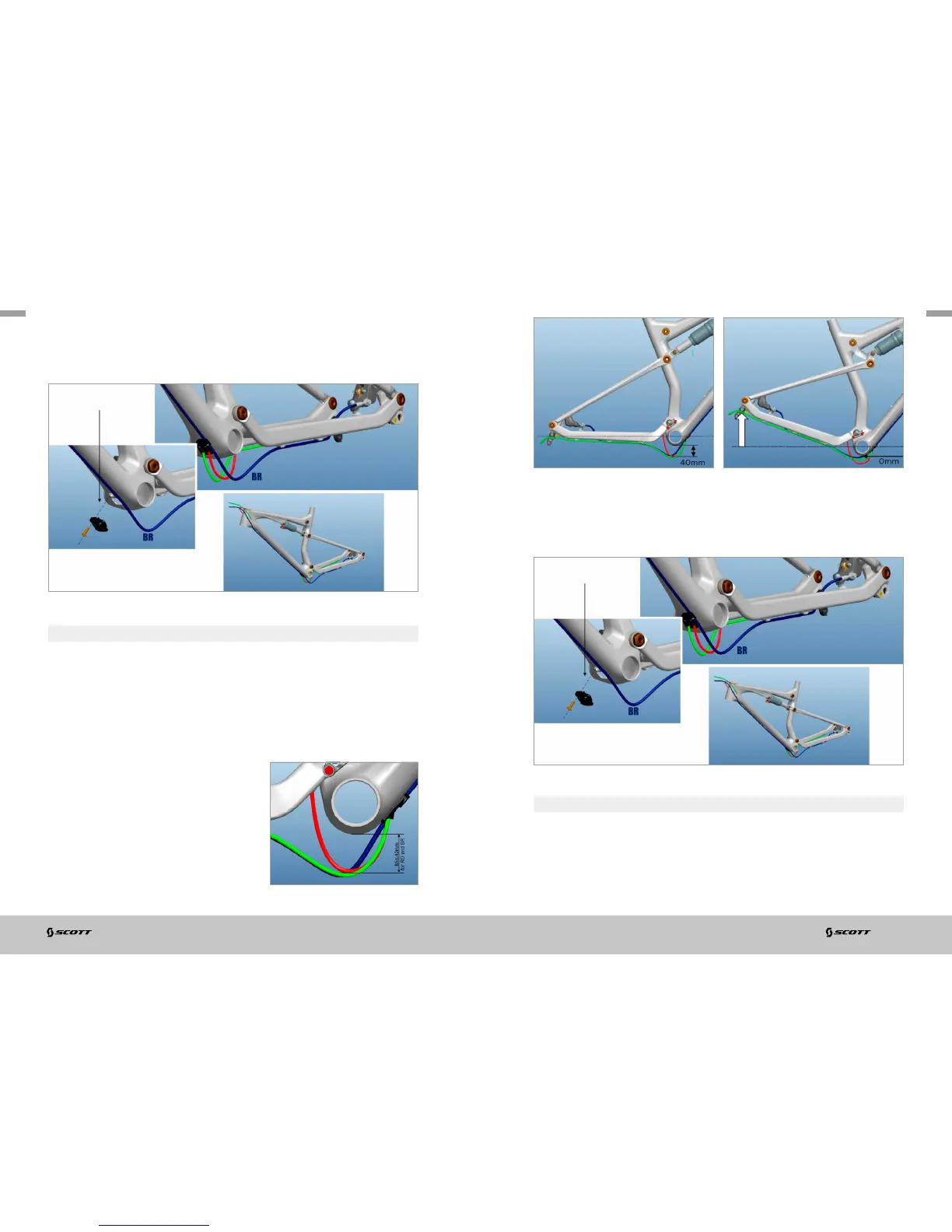

For the rear brake please assemble the cable as shown in the following drawings:
Please keep in mind to have a minimum distance of 40mm between the brake
hose and the BB housing as abovementioned!
The cable guide can be ordered via the SCOTT distribution with parts number:
223305 BB Cableguide Spark 2012
ALLOY FRONT FRAMES
Please fix the cable housings and the brake hose on the frame on the cable mounts
with cable zippers by following the routing information as shown below:
Please make sure to respect the 40mm distance
between the cables and the BB (bottom
bracket) housing to avoid “ghost-shifting” and/
or damage to the shift cables and brake hoses.
For the rear brake please assemble the cable as shown in the following diagrams:
Please remember to maintain a minimum distance of 40mm between the brake
hoses and the BB housing as mentioned previously!
The cable guide can be ordered via SCOTT distribution with parts number:
223305 BB Cableguide Spark 2012
Use the plastic guide
to fix the brake cable
Use the plastic guide
to fix the brake cable
