The direct and straight cable system on all our full suspension models offers perfect
shifting performance combined with lightweight and high resistance against water
and dirt.
CARBON FRONT FRAMES
SPARK CABLE ROUTING

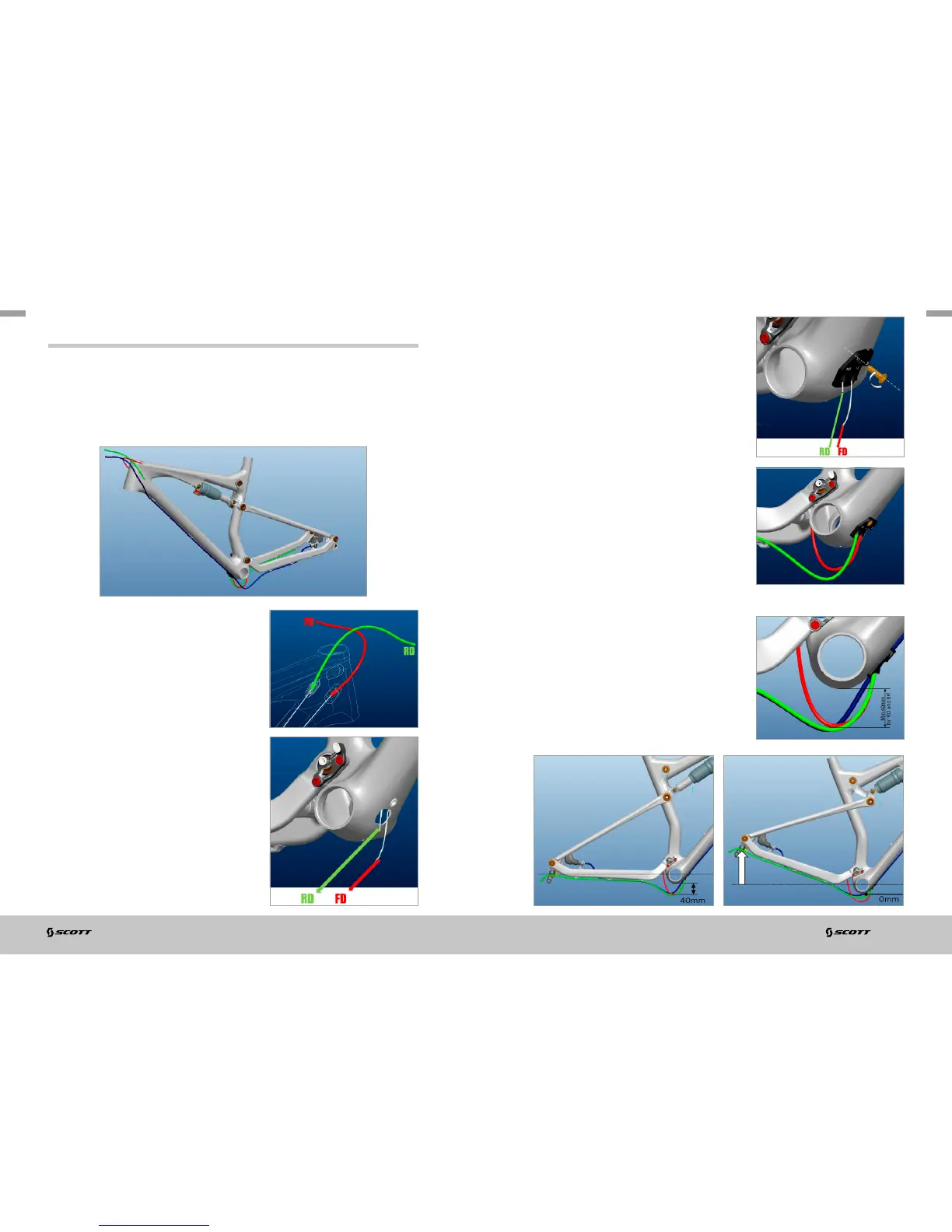

The carbon frames of Spark have an internal
shifting cable routing with cable stops on the
front end of the downtube as shown in the
drawing below.
Please note that the inner cables need to cross
each other 1 time on the inside of the downtube
before you pull them out through the cable slot
on the lower downside of the downtube.
Push the cables through the cable guide as
shown below and fix the cable guide on the
downtube with a 3mm allen key and a tightening
torque of max. 4Nm/35in/lbf.
Push the outer cable housings on the cables into
the cable guide but make sure to respect the
needed length as shown in the next drawing!
Please make sure to respect the 40mm distance
between the cables and the BB (bottom
bracket) housing to avoid “ghost-shifting” and/
or damages on the shift cables and brake hoses.
