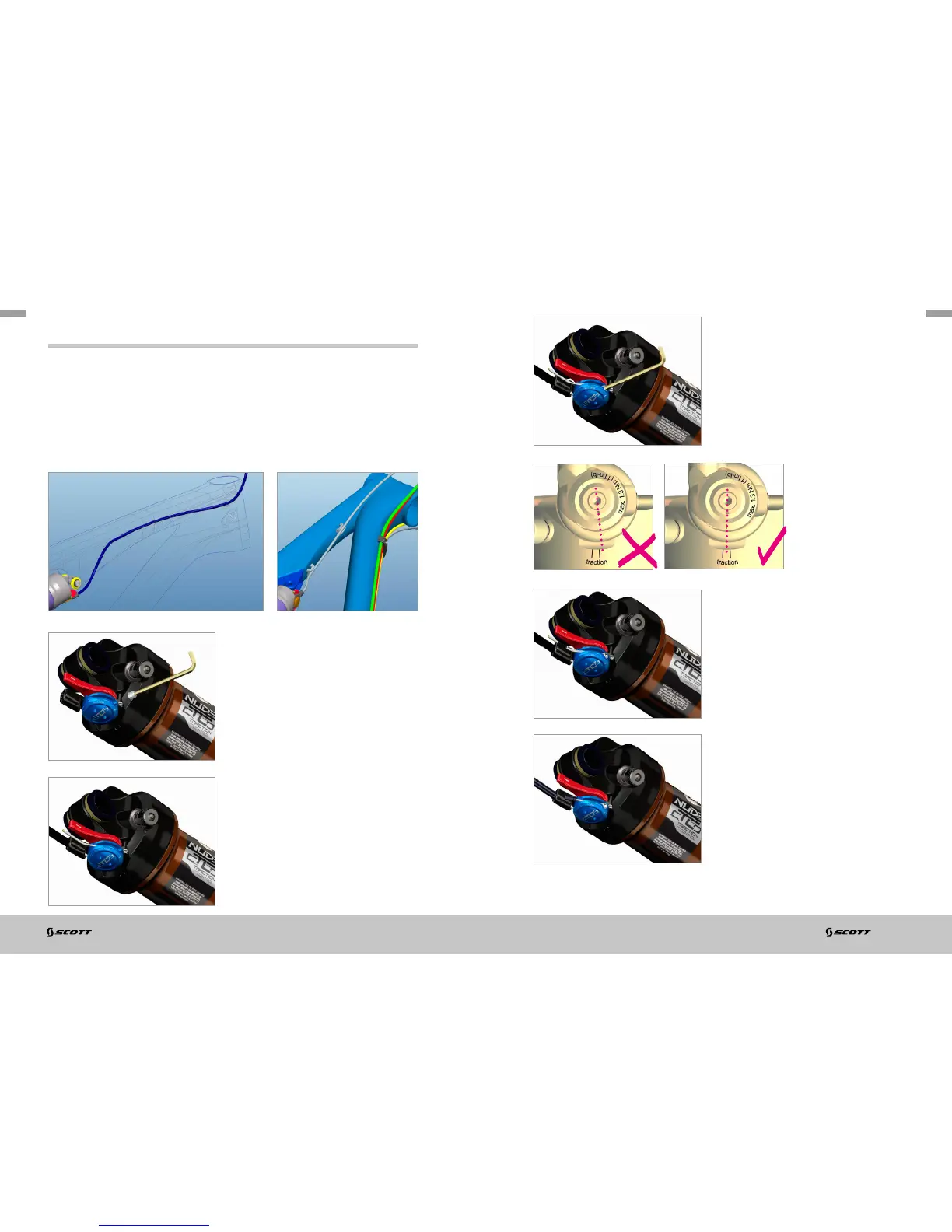

BASIC SET-UP OF THE TWINLOC REMOTE CONTROL OF
FOX NUDE SHOCK
1. loosen the cable fixing screw (S7) by
turning it counter clockwise with a 2mm
allen key.
To ensure the FOX Nude shock functions perfectly, it is very important to strictly
follow the below steps.
On Spark Carbon frames you will find an internal cable routing.
Push the inner cable first through the remote
lever in the upper cable routing of the lever
and then through the cable housing inside the
toptube as shown below.
On Spark alloy frames a regular
outside cable routing, the outer
cable housing is fixed on cable
mount ports with cable zippers.
2. insert a new cable via lever hole and
cable housing and push it into the
shock as shown around the remote
wheel (S6).
3. tighten the cable and fix the cablefixing
screw (S7) by turning it clockwise with
a 2mm allen key and a max. tightening
torque of 1.6Nm.
4. Check that the
handlebar lever
is in the traction
position. Refer to the
diagram below.
5. cut the cable approx. 20mm away from
the remote wheel. Fix it by squeezing it
with pliers.
6. push a cable end-cap on the cable until
it touches the end of the cable. Fix it by
squeezing it with pliers.
