SCOTT Bicycles User Manual

OWNER MANUAL

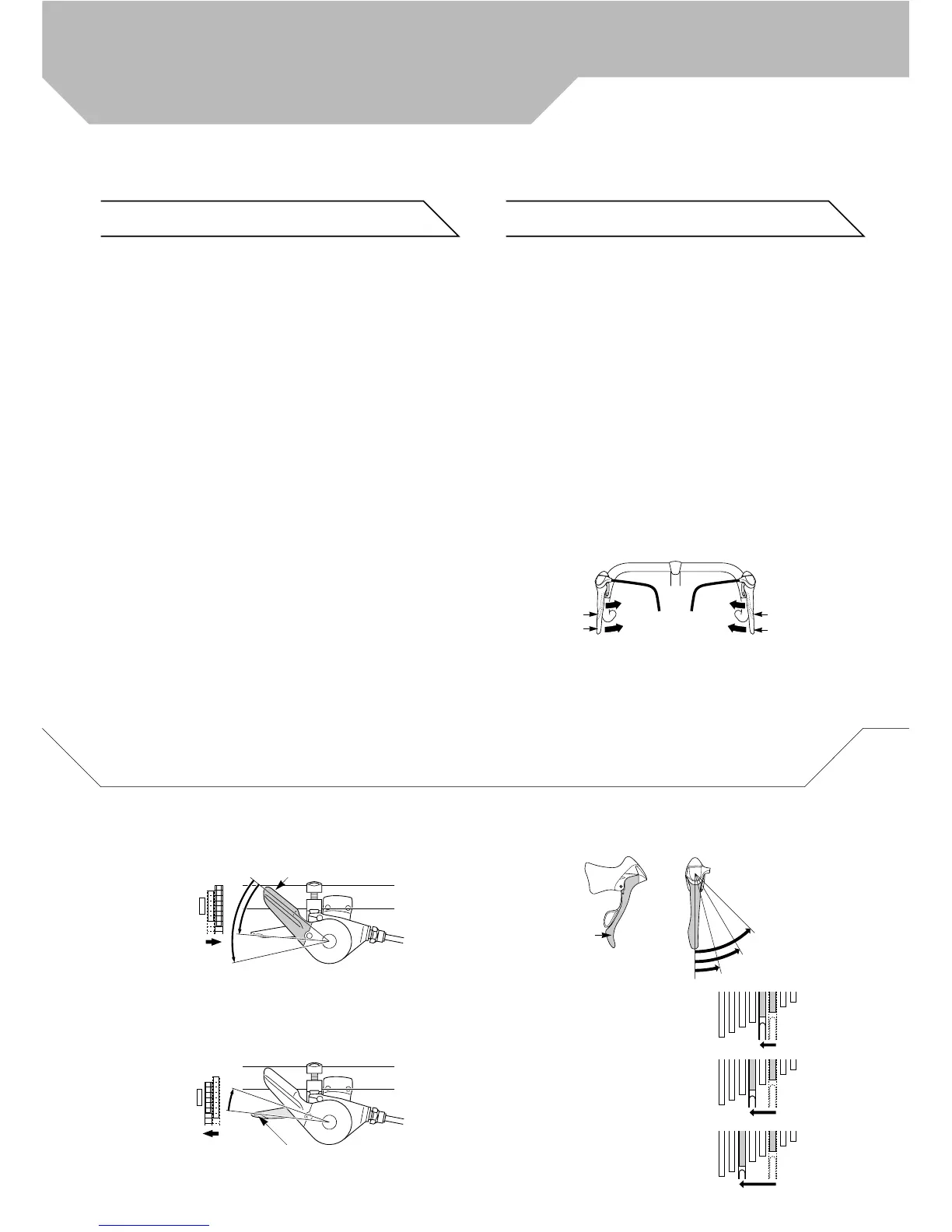

Front Lever operation
For both lever A and lever B, the lever always returns to
the initial position when it is released after changing.
To change from a small chain wheel to a larger
chain wheel
As is shown in the illustration, when lever A is pressed
to the mid-point of a full stroke, it clicks and there is a
change (of one gear) from a small chain wheel to the
next larger chain wheel.
Example: From the intermediate chain wheel to the lar-
gest chain wheel.
When the lever is pressed the full stroke (position 2),
there is a change from the smallest to the largest chain
wheel.
To change from a large chain wheel to a smaller chain
wheel.
When lever B is pushed once, there is a one step chan-
ge from a large chain wheel to a smaller chain wheel.
Example: From the largest chain wheel to the interme-
diate chain wheel.
Lever A to change from a small sprocket to a larger
sprocket.
Lever B to change from a large sprocket to a smaller
sprocket.
Lever a to change from a small chain wheel to a
larger chain wheel.
Lever b to change from a large chain wheel to
a smaller chain wheel.
All levers return to the initial position when released.
Levers:
Lever A
(Shift to larger chainring)
Lever A stops in positionen 1, 2 and 3.
Operation Rapidfire plus system
Hebel (A) Ausgangsstellung
Hebel (B)
Hebel B
Hinten Vorne
Hebel A
Hebel b
Hebel
a
Hebel A
Startposition
Hebel
A
Klickposition
Klickposition
Klickposition
4 3
35
3
6
Operation of Shimano Dual
Control System
To shift from a small chainring to a larger chainring
When Lever (A) is pressed once, ther is a shift of one step from a
small chainring to a larger chainring.
To shift from a large chainring to a smaller chainring
When lever (B) is pressed once, there is a shift of one step from a
large chainring to a smaller chainring.
Lever (A) initial position
Lever (B)
rear
lever b
lever a
lever b
lever a
front
click
lever a
shift one gear to next bigger
sprocket:
Example: Change from 3rd to
4th gear
shift two gears to bigger
sprocket:
Example: Change from 3rd to
5th gear
shift three gears to bigger
sprocket:
Example: Change from 3rd to
6th gear
initial
position
lever a
click
click
Operation of rear derailleur lever
Lever A: Shifts from smaller to lager rear sprocket
Lever B: Stops at positions 1, 2 and 3
