SCOTT Bicycles - V-Brake Adjustment and Maintenance; V-Brake Adjustment and Centering

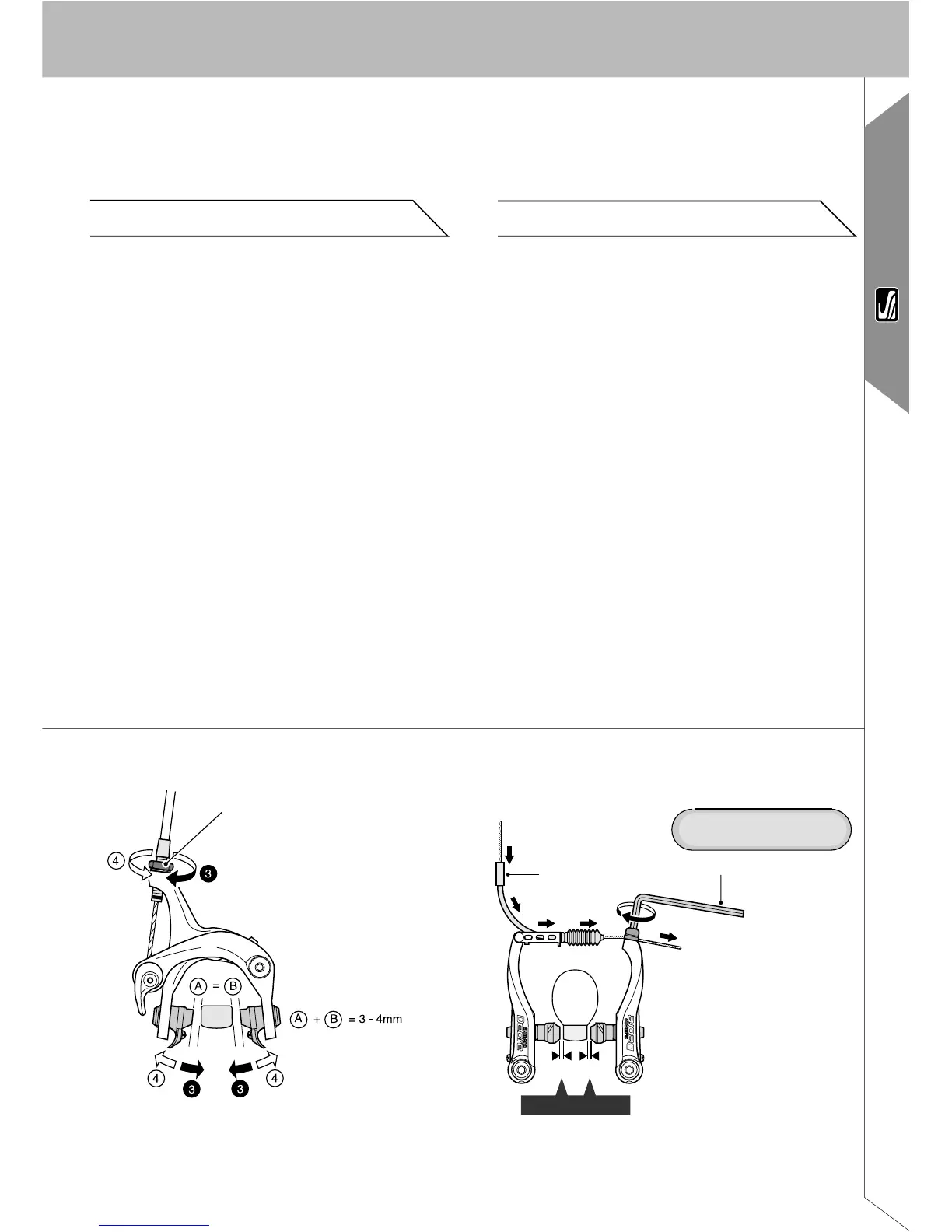

Make a minor adjustment by using the centring
adjustment screw.
Readjustment of the brake shoe clearance
Turn the cable-adjustment bolt to readjust the
brake shoe clearance.
1. While holding the shoe against the rim, tighten
the shoe fixing nut.
2. Pass the inner cable through the inner cable
lead, and after setting so that the total of the
clearances between the left and right shoes and
the rim is 2 mm tighten the cable fixing bolt.
OWNER MANUAL
12-13
Centring the brake shoe V-Brake
Anzugsdrehmoment:
6 — 8 Nm
BC
B
+
C
=
2 mm
centering adjustment bolt
inner cable lead
5mm allen key
tightening torque :
6-8 Nm (52-69 in. lbs.)
