OWNER MANUAL

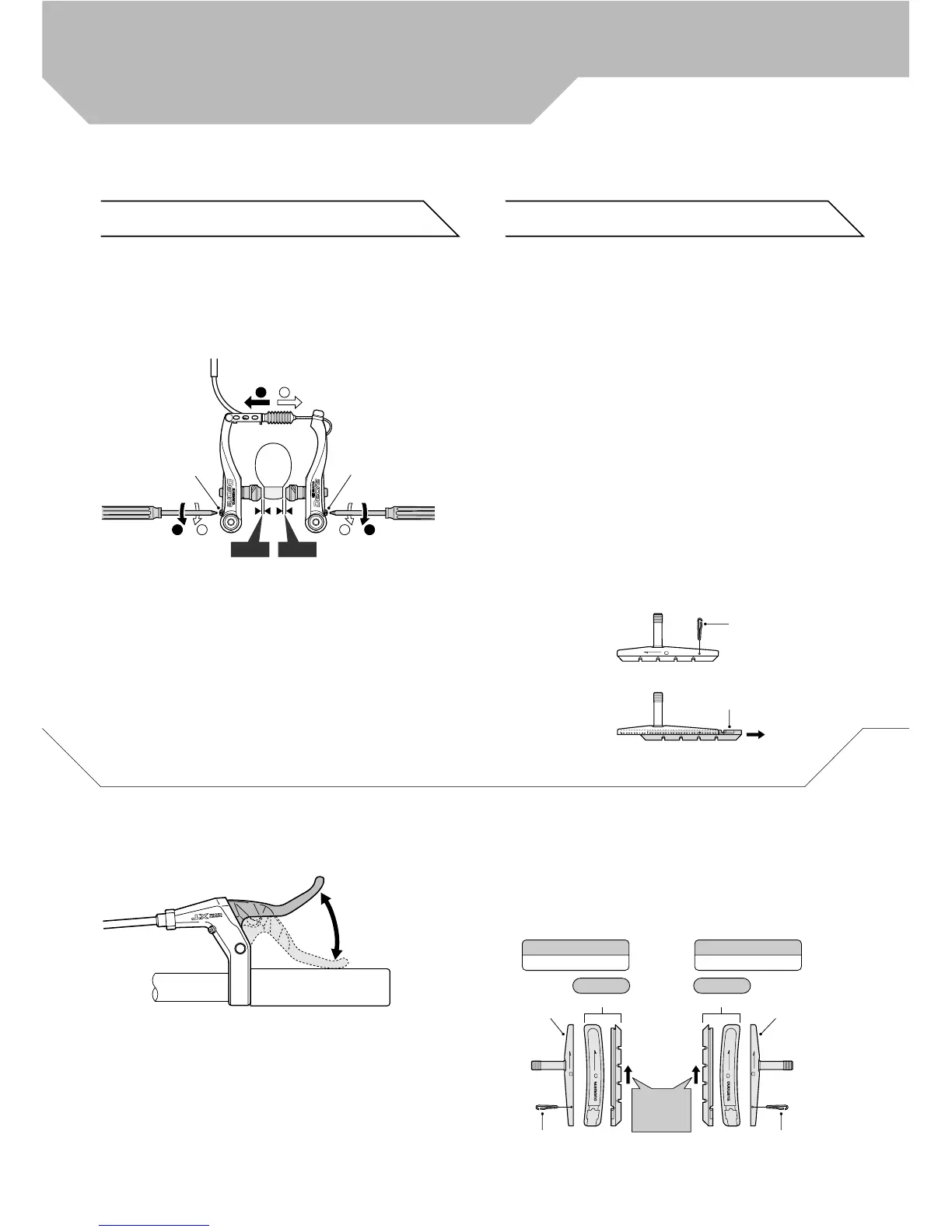

3. Adjust the balance with the spring tension
adjustment screws.
Remove the security pin on the brake shoe.
1. Remove the brake pad by sliding it along the groove of
the brake shoe bar.
2. Make sure to use the correct brake pad and brake
shoe for each side. Those for the left side are different
from those for the right side.
3. Slide the new pad into the shoe and make sure that
the direction is correct and that the security pin holes
concord.
4. The insertion of the security fixing pin is very impor-
tant. It keeps the shoe properly in place
4. Depress the brake lever about 10 times as far as the
grip and check that everything is operating
correctly and that the shoe clearance is correct
before using the brakes.
V-Brake
Replacement of the brake pads/
cartridge shoe
Federeinstellschraube Federeinstellschraube
1 mm 1 mm
12
1 1
2 2
Bremshebel circa 10
mal anziehen
Remove the shoe fixing pin.
Remove the shoe by sliding it along the groove of the shoe holder.
shoe
shoe fixing pin
Insertion of shoe fixing pin is very critical to keep shoe properly fixed in place.
There are two different types of shoe and shoe holder to be used
in the left and right positions respectively. Slide the new shoes into the grooves
on the shoe holders while taking note of the correct directions and pin hole
positions.
Shoe
insertion
direction
for the left
for the right
same at front and rear
same at front and rear
front
front
shoe holder
shoe holder
shoe
shoe
shoe fixing pin
shoe fixing pin
