The heart of the TC-System is the newly developed
and innovative Scott Equalizer TC Shock, offering three
functions which make this system possible.
By using the remote lever you can choose between fol-
lowing functions:
1. ALL TRAVEL MODE: full travel of 165mm
2. TRACTION MODE: by reducing the chamber volume
inside the shock the travel of the shock will be reduced
to around 60% (approx. 100mm), the characteristic of
the air spring gets harder. This results in climbing
without “bobbing” and offers still optimum traction of
the rear wheel.
3. LOCK OUT MODE: the shock is locked, climbing on
asphalt roads is now possible without any power loss.
Simultaneously a blow-off-system prevents the shock
being damaged in case the rider did not open the sys-
tem while crossing obstacles.
You will find following positions on the remote lever.

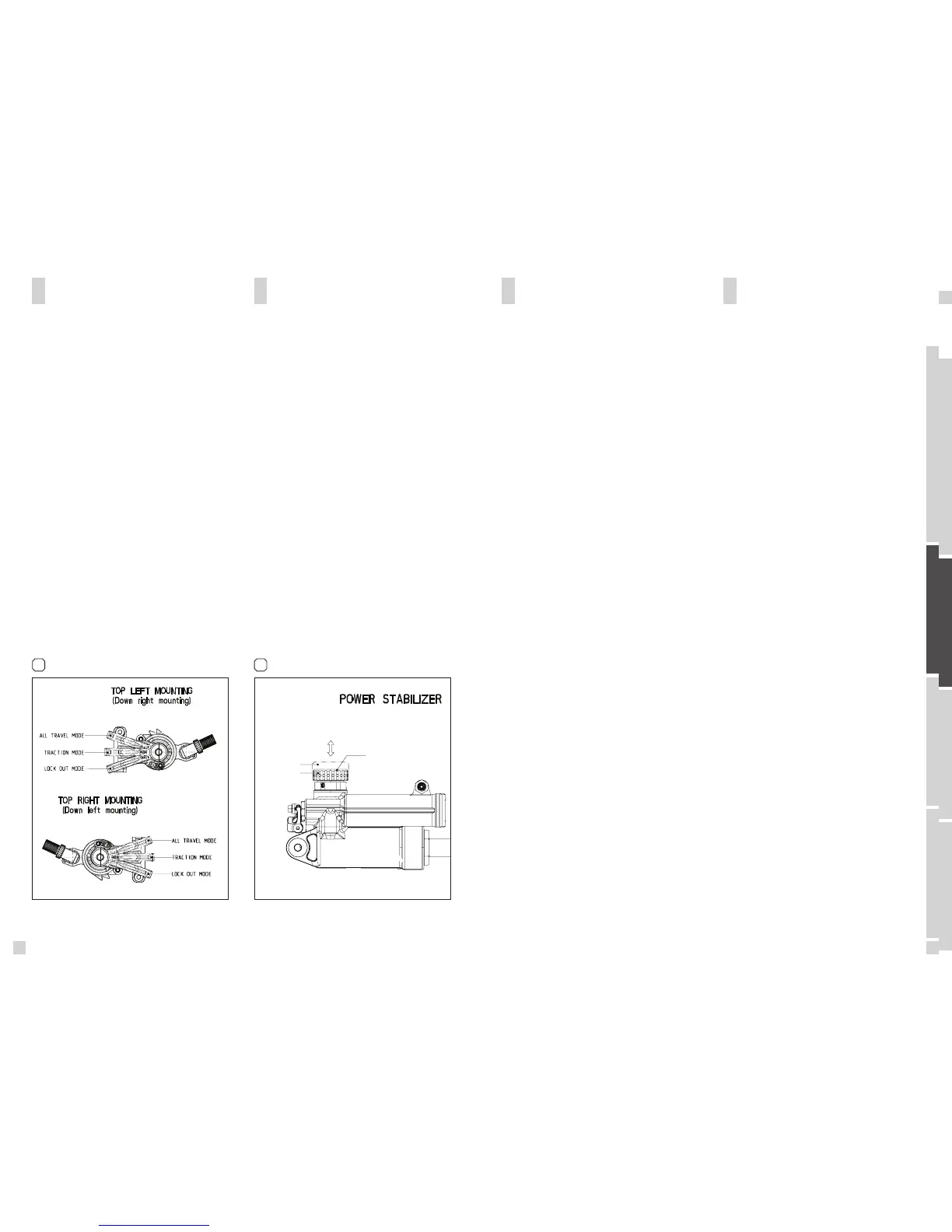

[1]
TRACTION CONTROL-
FUNCTIONS INTELLIGENT REBOUND VALVE OIL TRANSFER SHOCK
In contrary to conventional systems which have the
piston with compression and rebound shim stack
moving in an oil bath, our new developed OTS-sys-
tem pushes the oil through a fixed piston from one
oil chamber to another.
By using this fixed piston Scott was able to inte-
grate more functions (e.g. Power Stabilizer,
Intelligent Rebound Valve) beside the standard
compression/ rebound adjustment devices.
In addition the shock works with a bigger volume
of oil which results in a bigger heat resistance
and a reduced wear and tear of the oil.
Scott found a revolutionary way to design a valve that
adjusts itself by the speed of impact on the rebound
motion.
In contrary to conventional systems our new designed
Intelligent Rebound Valve system can distinguish
if the shock should rebound fast or slow.
On small impacts the system stays fully active and
reacts with a fast rebound.
After a jump or big impacts/grooves the rebound is
slowed down automatically. Doing so, the kick back of
the saddle that results from too fast rebound, is elimi-
nated.
1
remote lever
The Power Stabilizer is a option to ride with or
without Pedal Platform by just tapping one button on
the shock.
By pulling the rebound adjuster knob upward you
switch off the pedal platform for a supple break
away.
By pushing the rebound adjuster knob downward you
switch on the pedal platform for a better climbing
without bobbing when standing on the pedals. [2]
