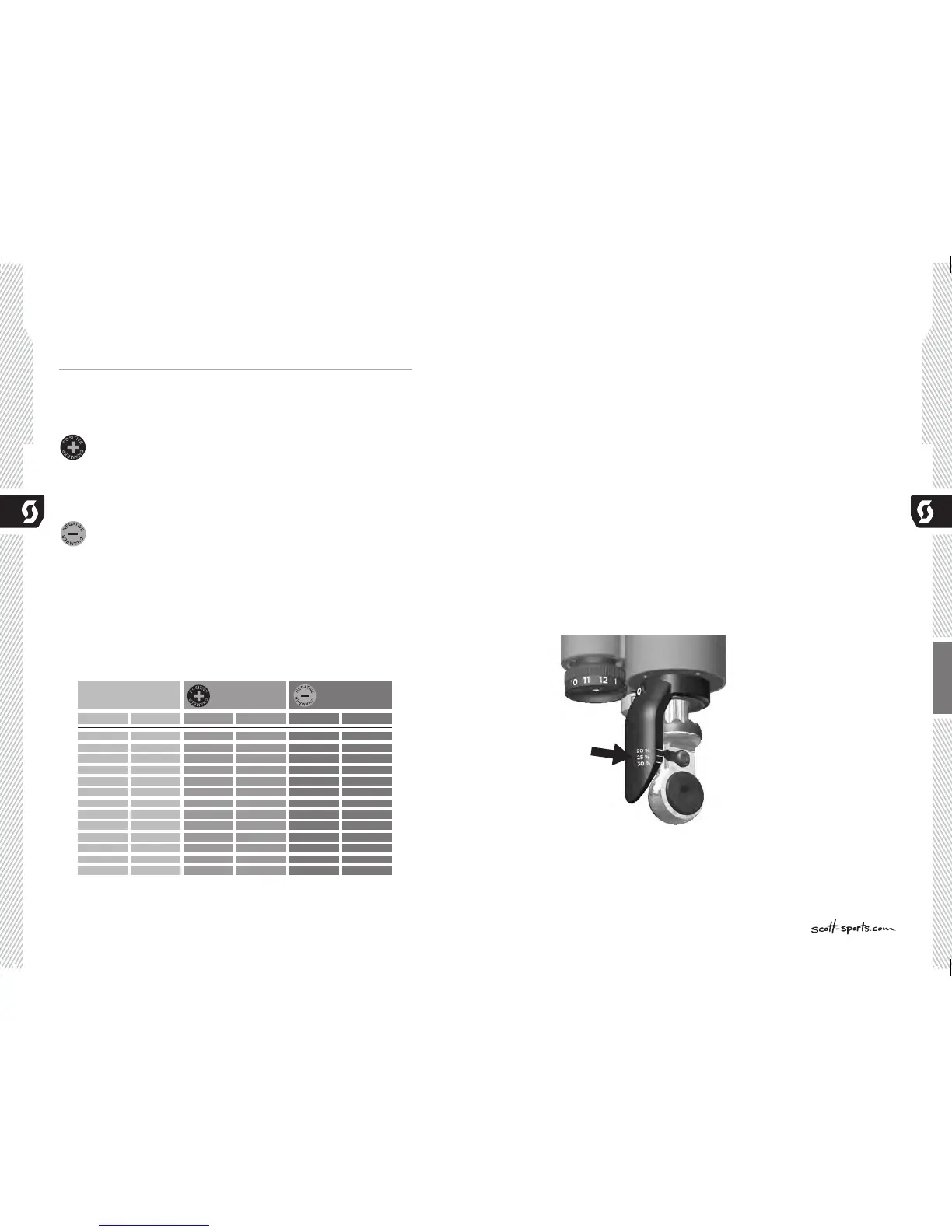

SET-UP GENIUS WITH EQUALIZER 2 SHOCK
Recommended Air Pressure
The Set-Up of the Scott/DT Equalizer 2 Shock can be easy done within a few minutes..
To adjust the air pressure of the air chamber of the Scott Equalizer 2 Shock please refer
to the following instruction:
1. remove the valve cap of the positive valve (S8) which is the UPPER valve on
the shock body and mount the shock pump with its adaptor on the valve.
2. pump the recommended pressure into the shock. On the shock body
you will find a table showing the recommended air pressure of the positive
chamber according to the rider’s weight.
3. when you reached the needed pressure remove the pump and put the valve
cap on the valve
4. remove the valve cap of the negative valve (S9) which is the LOWER valve
on the shock body and mount the shock pump with its adaptor on the valve
5. pump the recommended pressure into the shock. On the shock body
you will find a table showing the recommended air pressure of the negative
chamber according to the rider’s weight.
6. when you reached the needed pressure remove the pump and put the valve
cap on the valve
AIR PRESSURE
POSITIVE
RIDERS WEIGHT AIR PRESSURE
NEGATIVE
KG LBS BAR PSI BAR PSI
40 88 11.0 160 8.0 116
45 99 12.0 174 8.5 123
50 110 13.0 189 9.0 131
55 121 14.0 203 10.0 145
60 132 15.0 218 10.5 152
65 143 16.0 232 11.0 160
70 154 17.0 247 12.0 174
75 165 18.0 261 12.5 181
80 176 19.0 276 13.5 196
85 187 20.0 290 14.0 203
90 198 21.0 305 14.5 210
95 209 22.0 319 15.5 225
100 220 23.0 334 16.0 232
SAG
The SAG should be 12.5mm on the shock piston, which means approx. 25% SAG in
Full Travel Position
To check the adjustment, please follow as shown below:
1. Sit on the bike, put your feet on the pedal.
2. check if the arrow of the SAG indicator arrow matches with the 25% indication
on the mudguard.
(In case you want go for a harder set up you could go for 20% SAG, in case you
want to go for a softer set-up you could go for 30% SAG as shown as well on the
indicator)
- If the arrow matches with the SAG percentage indication of your choice
the air pressure is matching to your weight
- If the arrow is at a lower percentage indication then the one of your choice the
air pressure I the positive air chamber is too high and should be carefully reduced
by using the bleed knob of the shock pump until the arrow matches with the SAG
percentage of your choice
- If the arrow is at a higher percentage indication then the one of your choice the
air pressure I the positive air chamber is too low and should be increased by using
the shock pump until the arrow matches with the SAG percentage of your choice
20%
25%
30%
