GENIUS
14 2011 SCOTT BIKE OWNERS MANUAL
GENIUS
15
ENGLISH
EQUALIZER 2 SHOCK AND TWINLOC
REMOTE CONTROL LEVER
BASIC SET-UP OF THE TWINLOC
REMOTE CONTROL OF EQUALIZER 2 SHOCK

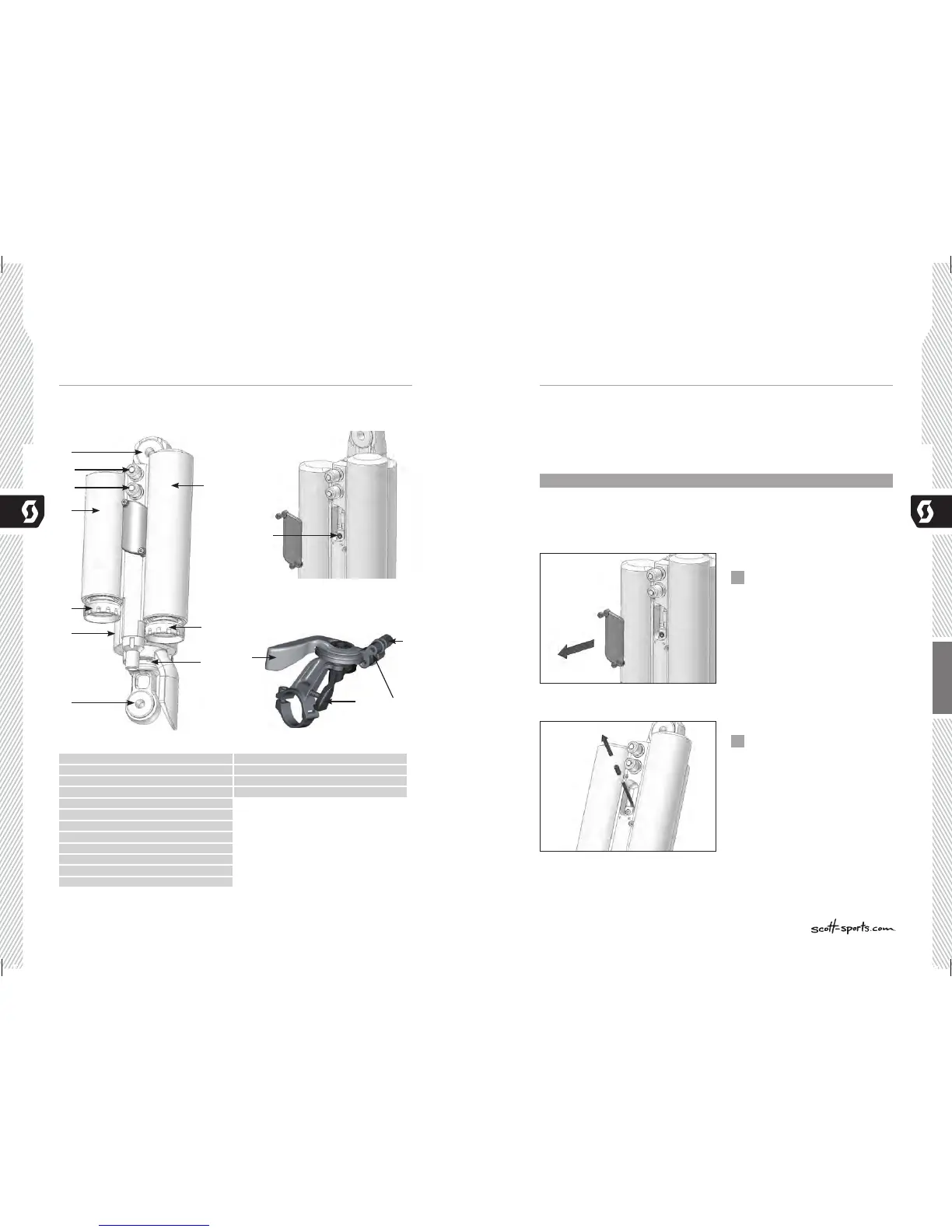

In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and set-up.
To ensure perfect function of the Equalizer 2 shock it is very important to follow the
steps shown below exactly.
Please note that the following explanation shows a complete exchange/replacement
of the cable, so in case you just want to double check e.g. the cable tension please see
only steps 1, 7, 8 and 9.
Important:
For all following actions the TWINLOC lever needs to be in “ALL TRAVEL-MODE”
position!
Remove the cap of the cable
housing window on the shock
by turning the screws counter
clockwise using a 1.5 mm allen key
1
remove the end cap of the cable
with pliers
2
S6
S7
S5
S4
S1
S3
S12
S2
S11
S8
S9
S1 Top eyelet/ Shock Bolt L1 Remote Lever
S5 Shock Housing
S9 Negative Chamber Valve
S3 Traction Mode Chamber L3 Remote Control Cable
S7 Rebound- Screw
S11 Cable fixing Screw (hidden behind dust protector plate)
S2 Down eyelet/ Shock Bolt L2 Release Button
S6 Rebound- Screw
S10 Remote Control Cable
S4 Full Mode Chamber L4 Cable Tension Screw
S8 Positive Chamber Valve
S12 Shock Piston
L3
L1
L4
L2
