GENIUS
16 2011 SCOTT BIKE OWNERS MANUAL
GENIUS
17
ENGLISH

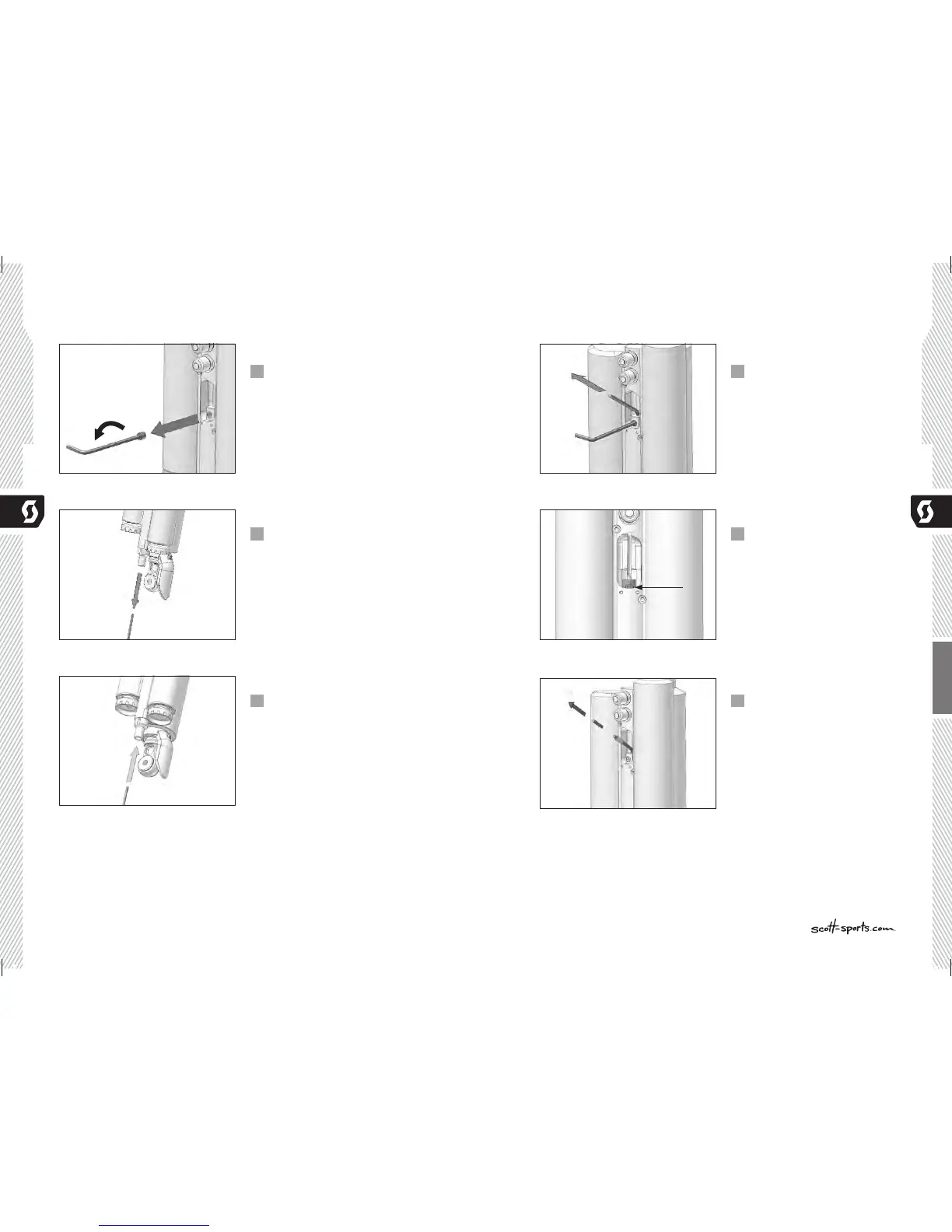

loosen the cable fixing screw (S10)
by turning it counter-clockwise
with a 2.0 mm allen key
3
remove the old cable by pushing/
pulling it out from the TWINLOC
lever
4
insert a new cable via lever hole
and cable housing and push it into
the shock as shown
5
tighten the cable and fix the cable
fixing screw (S10) by turning it
clockwise with a 2.0 mm allen key
and a max. tightening torque of
1.6 Nm
6
to double check accurate cable
tension please push the TWINLOC
lever to “TRACTION-MODE”.
The mid of the cable fixing screw
(S10) should be at the edge of
the lower cable housing window
on the shock. For fine-tuning
please adjust the cable tension
via the barrel adjuster (L4) on the
TWINLOC lever.
7
push the “open-ended” cable cap
on the cable until it touches the
cable sled, fix it by squeezing it
with pliers and cut the cable just
above the cap
8
E_genius_en.indd 16-17 01.04.10 19:11
