SCOTT GENIUS User Manual

GENIUS
6 2011 SCOTT BIKE OWNERS MANUAL
GENIUS
7
ENGLISH

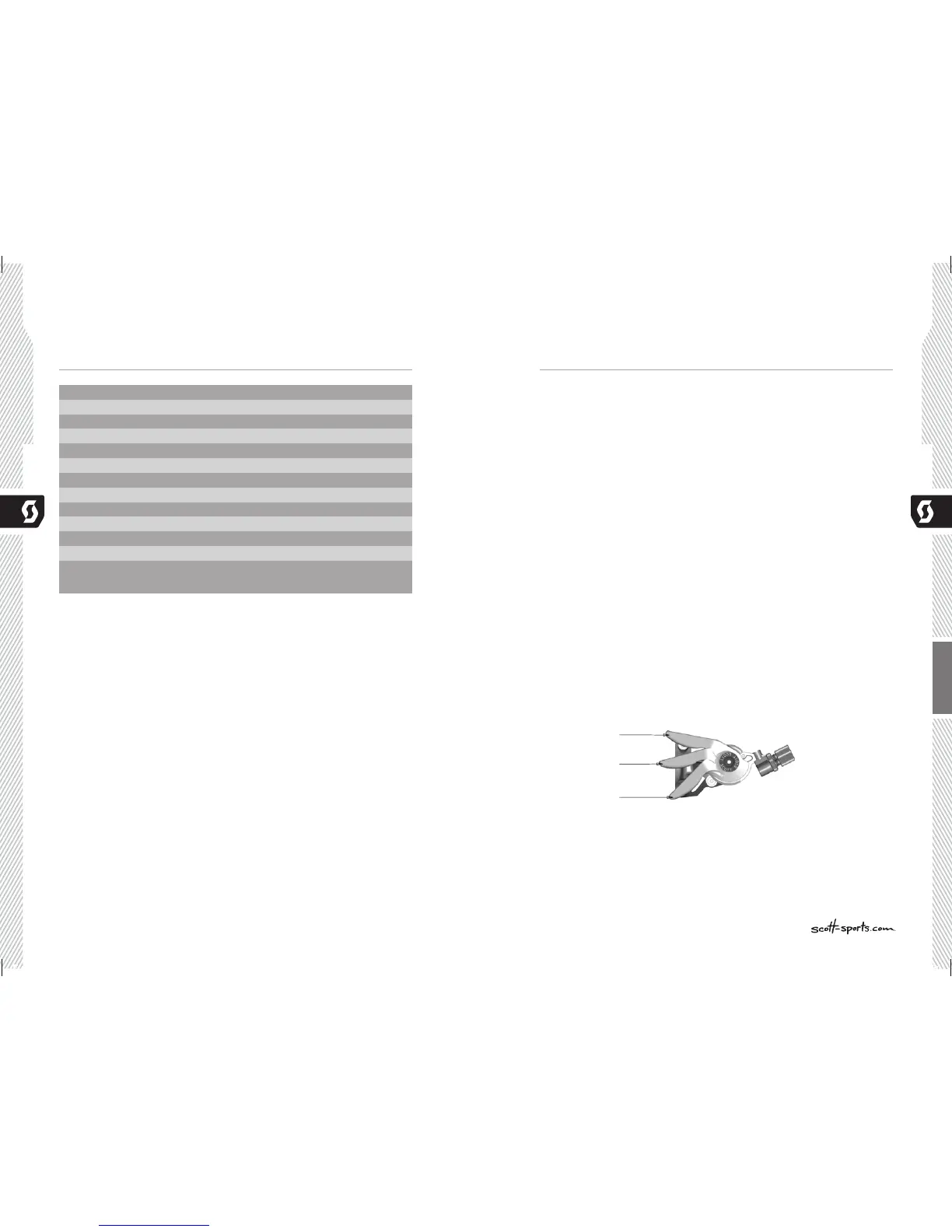

TECHNICAL DATA GENIUS TWINLOC – REMOTE CONTROL LEVER
Travel 150/95/0mm
Suspension Ratio 3.0
Piston stroke 50mm
Shock length (Eye to Eye) 165mm
Hardware Mainframe 14mm x 6mm
Hardware Swingarm 14mm x 6mm
Seatpost diameter 34,9mm
Headset 1 1/8“semi integr. with 44.0mm cups
Fork travel 140 - 150mm
Fork length 518 - 525mm
BB housing 73mm
Front derailleur E-type, direct mount, down pull
Bearings 61900-2RS (Ø22xØ10x6) /
61800-2RS (Ø19xØ10x5)
The TWINLOC remote control lever is the evolution of the already outstanding
TRACLOC system of Scott.
While TRACLOC allows the change on the Scott rear shocks Nude TC and Equalizer
2 between the Scott patented Lock-out, traction and full-mode on the fly from the
handlebar, the TWINLOC now allows also the remote control of the front fork to shift
between lock-out and open mode at the same time when you change the modes on
the Scott rear shox.
The 3 modes on the lever and suspension units are:
- FullTravelMode: full travel rear, full travel front
- TractionMode: traction mode rear, full travel front
- Lock-outMode: lock-out rear, lock-out front
Scott offers different TWINLOC levers with following fork/rear shock combinations:
- Equalizer2 with adapters for SRAM /RockShox fork and FOX fork/DT Swiss fork
( Scott Article number: 216350)
Important: You can only assemble the TWINLOC remote lever in “left side upward
position” on the handlebar.
You have 3 positions on the TWINLOC remote lever.
- mostforwardposition: lock-out rear, lock-out front
- middleposition: traction mode rear, full travel front
- mostbackwardposition: full travel rear, full travel front
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ALL MODES
- -
A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
LOCK OUT MODE
TRACTION MODE
ALL TRAVEL MODE
PRESS TO RELEASE
Lock Out Mode
Traction Mode
Full Travel Mode
E_genius_en.indd 6-7 01.04.10 19:11

SCOTT GENIUS Specifications

General

Model	GENIUS
Category	Mountain Bike
Suspension	Full Suspension
Gears	12-speed
Brakes	Hydraulic Disc
Travel	150mm
Wheel Size	29"
Frame Material	Carbon
