FOX-DT Swiss forks
Important:
Please make sure the lockout of FOX/DT fork is activated after transport correctly.
Therefore please compress fork 5-10 times before following the manual on remote
cable installation and adjustment.

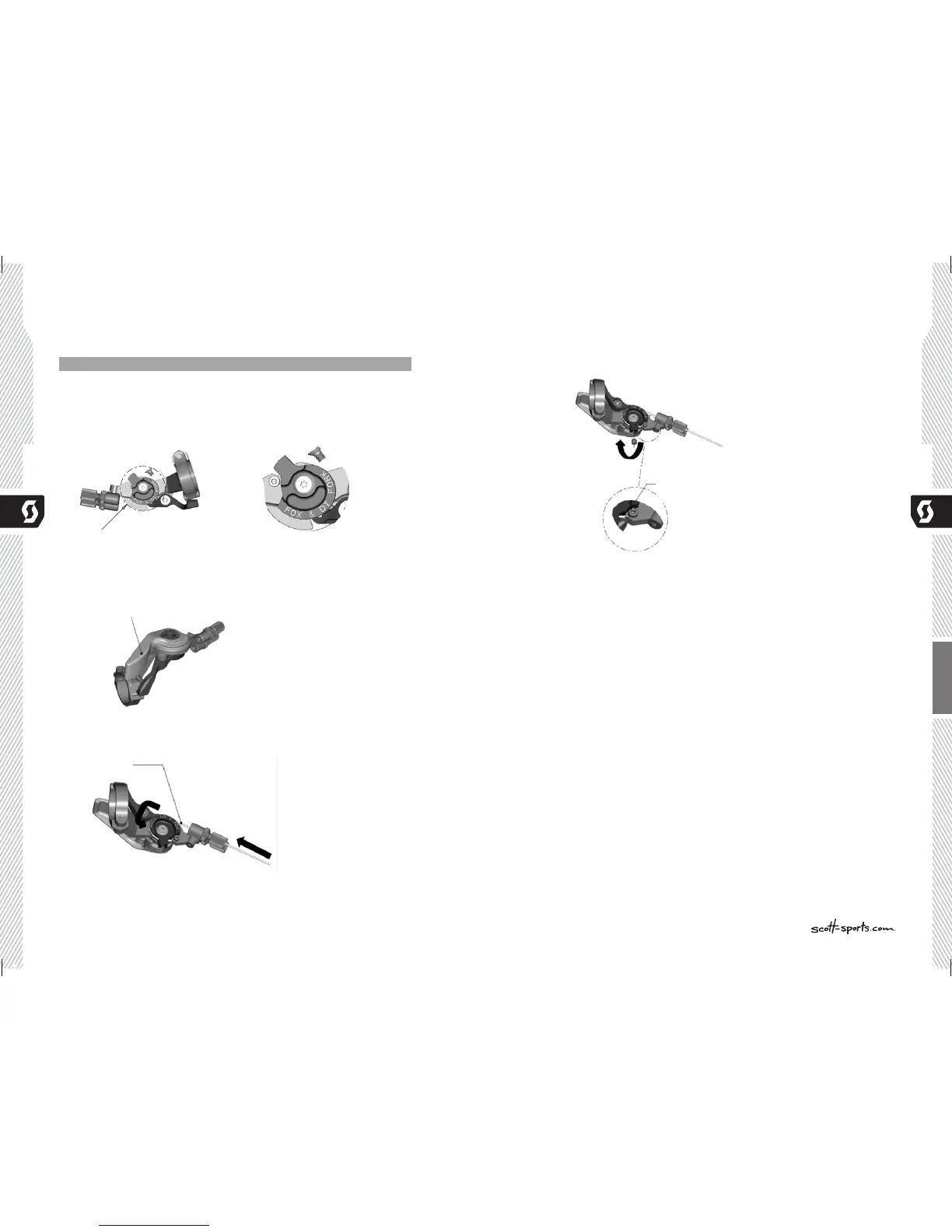

The lever should show on the downside of the cable roll follow indication:
To assemble the cable please bring the lever into the Full (Travel) Mode
and secure the cable by fixing the 2mm allen screw with a tightening torque of
0.9Nm/ 8lb/in as shown on the drawing below on the roll.
Cut the cable 5mm behind the roll and secure it with a cable end-cap.
Please refer for this action also to the manual of FOX or DT Swiss attached to the bike.
In case you need to remove the remote cable completely from the forks of FOX
or DT Swiss please follow the instructions of the related fork manuals of the fork
manufacturers or contact a fork service center / your local dealer to do so.
TIP:
To check for accurate cable tension, please try to move the plastic end cap of the cable
housing at the barrel adjuster on the remote lever. There should be “no-play” between
cap and barrel adjuster.
In case of “play” please turn the barrel adjuster clockwise until “no-play”.
push the pre-cut cable through the pre-cut cable housing into the lever as shown on
drawing below
