FINAL PREPARATION
1. Verify that a full air supply cylinder is properly installed and attached to the
pressure reducer. Refer to the AIR CYLINDER INSTALLATION section of this
instruction.
2. Open the air supply cylinder and verify that the remote pressure gauge con-
sole and LED display lights are working properly.
3. Make sure that the hook-and-loop fasteners on all covers are securely
sealed.
4. Verifythat allstrapsare installedasneeded.Variousattachmentsare pos-
sible, but the following represent some typical uses:
a) The long strap can be attached to each side to two alternate side rings
to provide a shoulder strap. See FIGURE 23.
b) The long strap can be also connected at each end to provide a shoulder
strap. See FIGURE 24. If separated at the seat belt buckle, the long
strap can be used as a single drag pull.
c) The long strap can also be attached to two end rings to provide a loop
dragpull.SeeFIGURE25.
PREPARATION FOR USE CONTINUED...

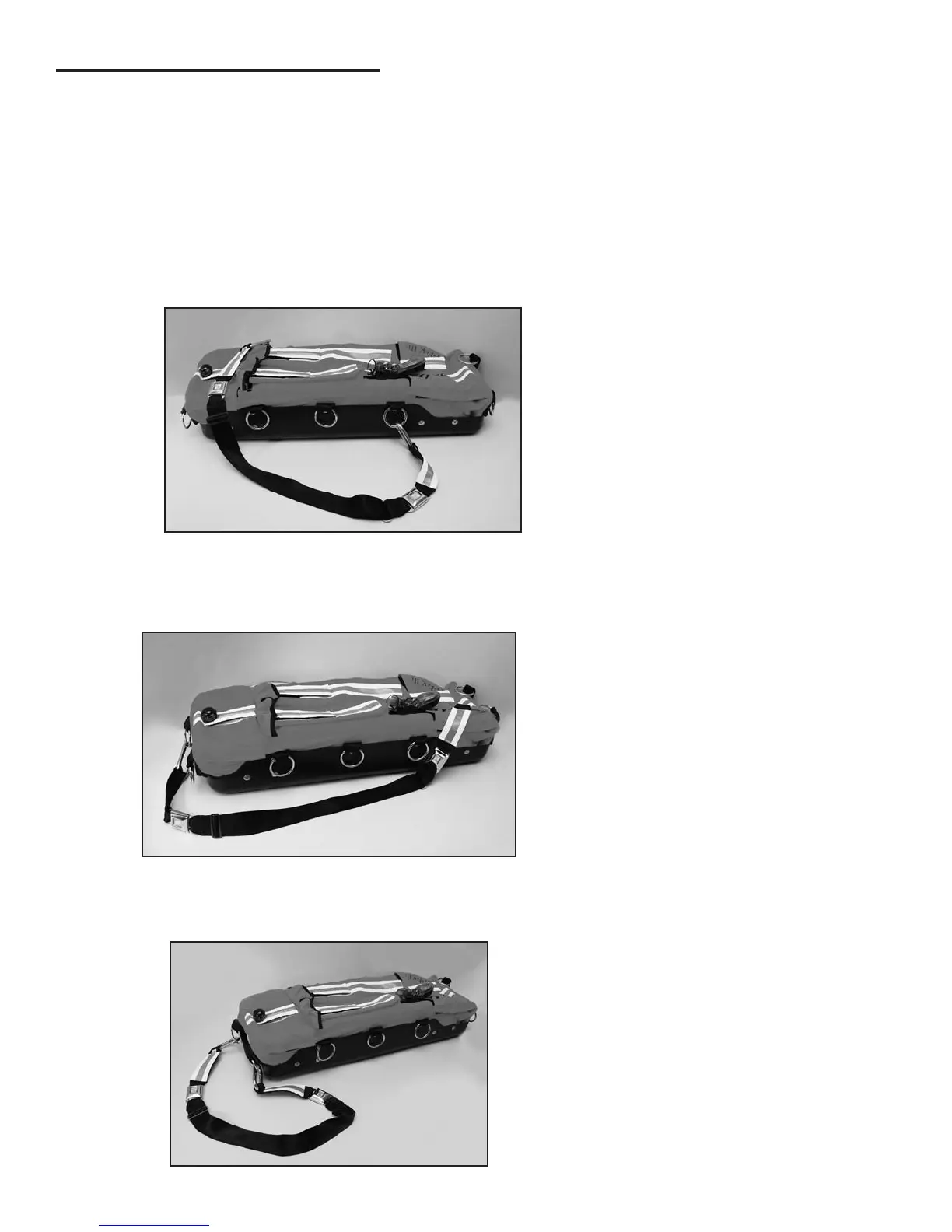

FIGURE 23
FIGURE 24
FIGURE 25
