SCOTT RIT-PAK III User Manual

Page 8 of 36
P/N 595225-01 Rev C 4/12
WARNING
BATTERIES MUST ONLY BE CHANGED IN
AN AREA KNOWN TO BE NONFLAMMABLE.
CHANGING THE BATTERIES IN A
FLAMMABLE ATMOSPHERE MAY CAUSE
AN IGNITION WHICH COULD RESULT IN
SERIOUS INJURY OR DEATH.
The RIT-PAK III Portable Air Supply requires two (2) AA batteries in the remote gauge
console for operation of the air cylinder volume LED DISPLAY indicator lights. The batter-
ies should be replaced only by a trained maintenance technician in a clean area known
tobenonammable.
Install or replace the batteries as follows:
1. Locate the remote gauge console.
2. Using a Phillips driver, remove bothbatterycapsholding.SeeFIGURE5.
3. If previously installed, slide the two batteries out of the battery
compartments.
4. For best results, replace batteriesonlywithapairof the following 1.5 volt
AA batteries:
–
Eveready
1
Energizer Alkaline EN91
–
Eveready Energizer Alkaline E91.
– Duracell
2
AlkalineMN1500
– DuracellAlkalineMX1500
– DuracellAlkalinePC1500
Be sure batteries are properly oriented in battery compartments with the
"+" end and the "–" end of each as shown in FIGURE 6.
5. Thebatterycoversmustbeinstalledsothattheyarewatertightafterreplace-
ment. Clean the inside edge of each battery compartment and seal around
the outside of the cover by wiping with a clean damp cloth to remove any dirt
or foreign matter which might prevent a proper seal. Check cover gasket for
tears or cuts. If damage is found, remove equipment from service and tag for
repair by authorized personnel.
6. When cover is placed in position and the batteries are properly installed, all
lights in the LED DISPLAY will light for approximately twenty (20) seconds
to verify operation.
7. Thread the battery cover screws in until the edge of each battery cover is
touching the face of the battery compartment. Tighten the screw HAND TIGHT
only. DO NOT OVERTIGHTEN. Perform the REGULAR OPERATIONAL IN-
SPECTION to verify proper operation of the LED DISPLAY.
WARNING
REGULARLY INSPECT THIS EQUIPMENT,
INCLUDING THE GAUGE CONSOLE
AND LED DISPLAY, AS DESCRIBED IN
THIS INSTRUCTION AND CORRECT ANY
DAMAGE FOUND. DO NOT SUBSTITUTE
ANY PARTS OR COMPONENTS. USE ONLY
THE BATTERIES AS SPECIFIED IN THIS
INSTRUCTION. THE FAILURE TO CORRECT
ANY DAMAGE, THE INSTALLATION
OF INCORRECT BATTERIES, OR
THE SUBSTITUTION OF ANY OTHER
COMPONENTS MAY LEAD TO A FIRE OR
AN EXPLOSION WHICH COULD RESULT IN
SERIOUS INJURY OR DEATH.
BATTERY INSTALLATION
FIGURE 6
"–" END
OUT
"+" END
OUT
CAUTION
USE BATTERIES ONLY FROM THE LIST
PROVIDED, DO NOT MIX OLD BATTERIES
WITH UNUSED BATTERIES, AND DO
NOT MIX BATTERIES FROM DIFFERENT
MANUFACTURERS.
1
EnergizerisaregisteredtrademarkofEvereadyBatteryCompany,Inc.,St.Louis,MO.
2
Duracell is a registered trademark of The Procter & Gamble Company, Cincinnati, OH.

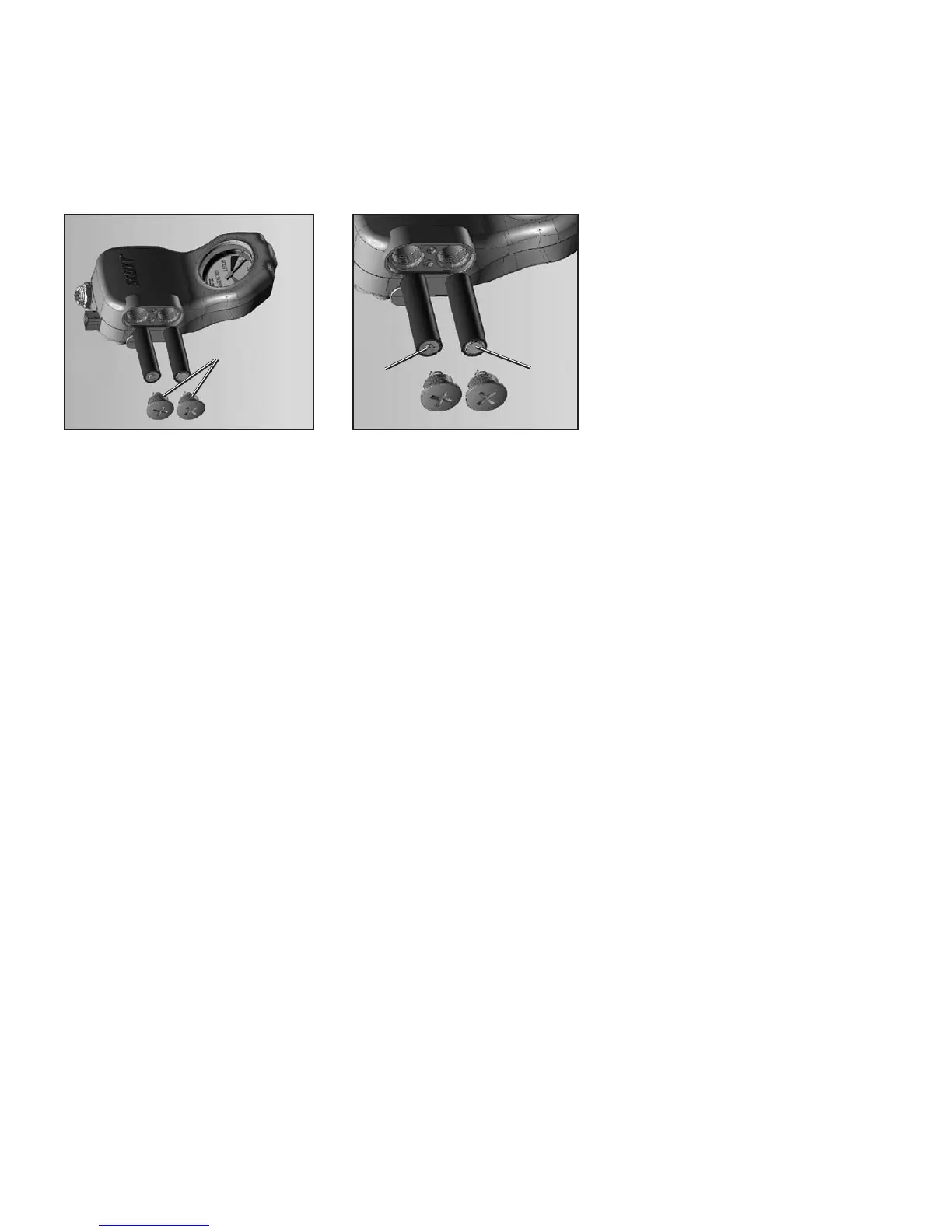

FIGURE 5
REMOVE
BOTH CAPS
