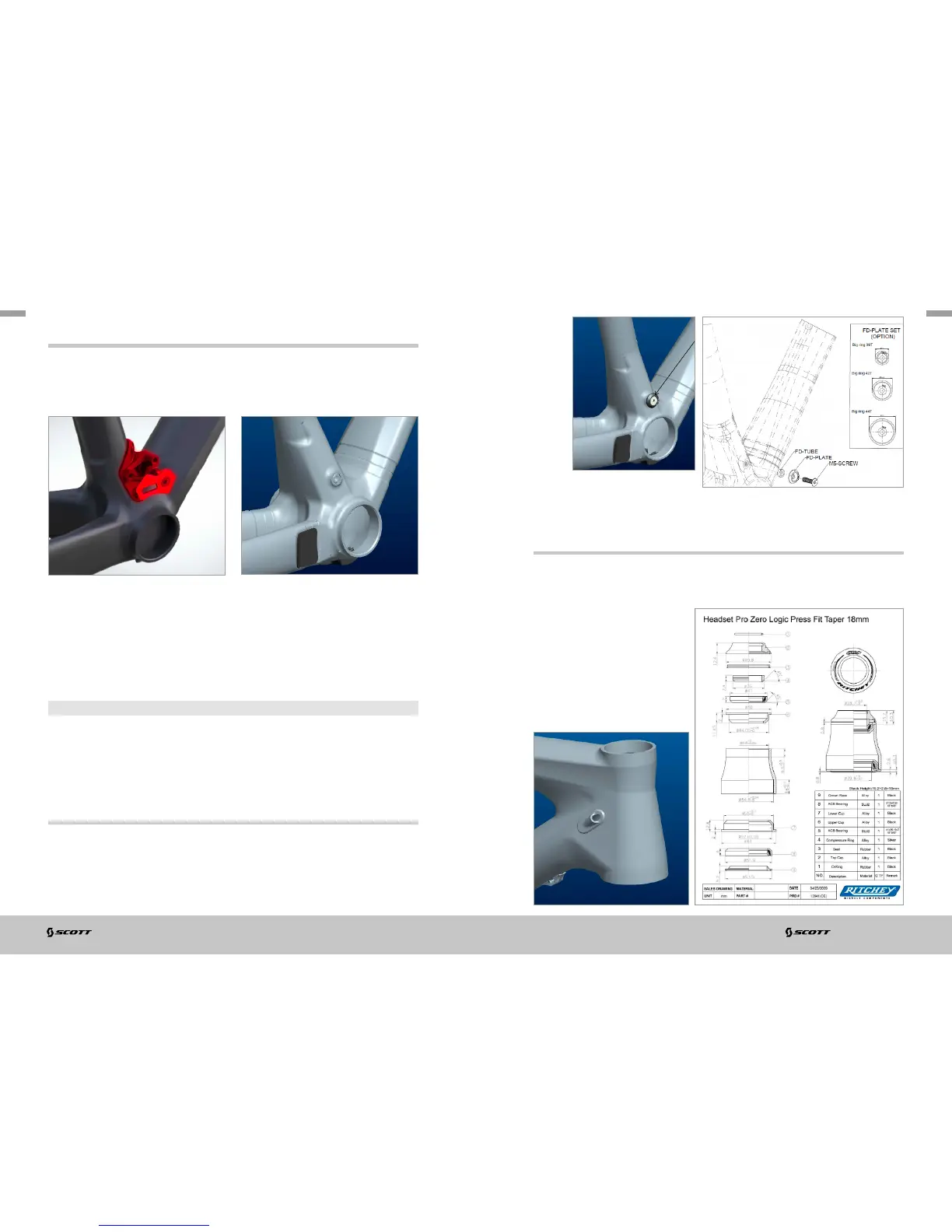

BB STANDARDS/FD MOUNTING DETAILS
Scale Carbon is available for PressFit 92 Cartridges (PF92).
PF BB 92 has a housing width of 92mm (Scale 700) or 89.5mm plus a 2.5mm
additional washer (Scale 900) with an inner diameter for the cartridges of 41mm.
Scale 700 (27.05”) FD
The front derailleur (FD) fixation for
Scale 700 is a direct mount system.
It is made for Shimano E-Type
derailleurs or SRAM S3 assembly
In addition it has an integrated
chainguide assembled on this
fixation plate.
Scale 900 (29”) FD
The Front Derailleur (FD) clamp is with
an inner diameter of 34.9mm, the cable
routing on the frame is for “down route/
pull - down swing” models.
IMPORTANT!
Please note that the maximum tightening torque on the FD clamp is 5Nm/44in/lbs.
A higher tightening torque might cause damage to the FD camp and/or frame
tube! Please also refer to the related manuals of the manufacturer of the FD.
CHAINGUIDE
On some Scale 900 (29”) Carbon models you will find a chainguide system to
support the shifting performance when using 2 chainring cranksets.
3 different mounting plates are available to match the different sizes of the outer
chainrings (39/42/44T).
Please note the max. tightening torque of 5Nm/44 in/lbs on the mounting screw of
the plate.
HEADSET OPTIONS
Scale Carbon features a tapered headset and fork steerer system to match with
semi-integrated headsets of the “50-61”mm range.
The steerers of those forks are
tapered from 1.5” to 1 1/8”.
This bigger diameter of the fork
steerer as well as on the frame
headtube helps to increase the
stiffness and handling of the bike.

SCOTT SCALE CARBON Specifications

General

Frame Material	Carbon
Wheel Size	29"
Wheelset	Syncros (depending on the specific model)
Saddle	Syncros (depending on the specific model)
Fork	RockShox / FOX / Suntour (depending on the specific model)
Drivetrain	Shimano or SRAM (depending on the specific model)
Brakes	Shimano or SRAM disc brakes (depending on the specific model)
Tires	Schwalbe or Maxxis (depending on the specific model)
Handlebar	Syncros Alloy or Carbon (depending on the specific model)
Seatpost	Syncros Alloy or Carbon (depending on the specific model)
