SCALE CARBON | BIKE OWNER’S MANUAL 2015 BIKE OWNERS MANUAL 2015 | SCALE CARBON
11
ENGLISH
ENGLISH
REPLACEABLE REAR DERAILLEUR HANGER
SEATTUBE CLAMP
Scale Carbon uses the same replaceable rear derailleur hanger system (called IDS
SL2) as SCOTT Spark, Genius and Genius LT.
Depending on the different models you’ll find following options:
1. 142mm axle with RWS 142/12
This is available via the SCOTT distribution with:
219574 complete set of RWS 142/12
219577 right side replaceable RD hanger
2. 135mm axle with RWS 135/5
This is available via the SCOTT distribution with:
219572 complete set of RWS 135/5
219575 right side replaceable RD hanger
If you want to use another RWS standard SCOTT can also offer the following as
after-market parts for specific wheelsets via the SCOTT distribution:
219574 RWS 135/12 parts set
219576 right side replaceable RD hanger
Please make sure to only use a seatclamp with an inner diameter of 34.9mm (Scale
700) or 38.2mm (Scale 900) and please note the maximum tightening torque on the
fixing bolt of 5Nm/44 in/lbs
REAR DISC BRAKE MOUNT
FRONT FORK SET-UP/CHANGE OF FRONT FORK

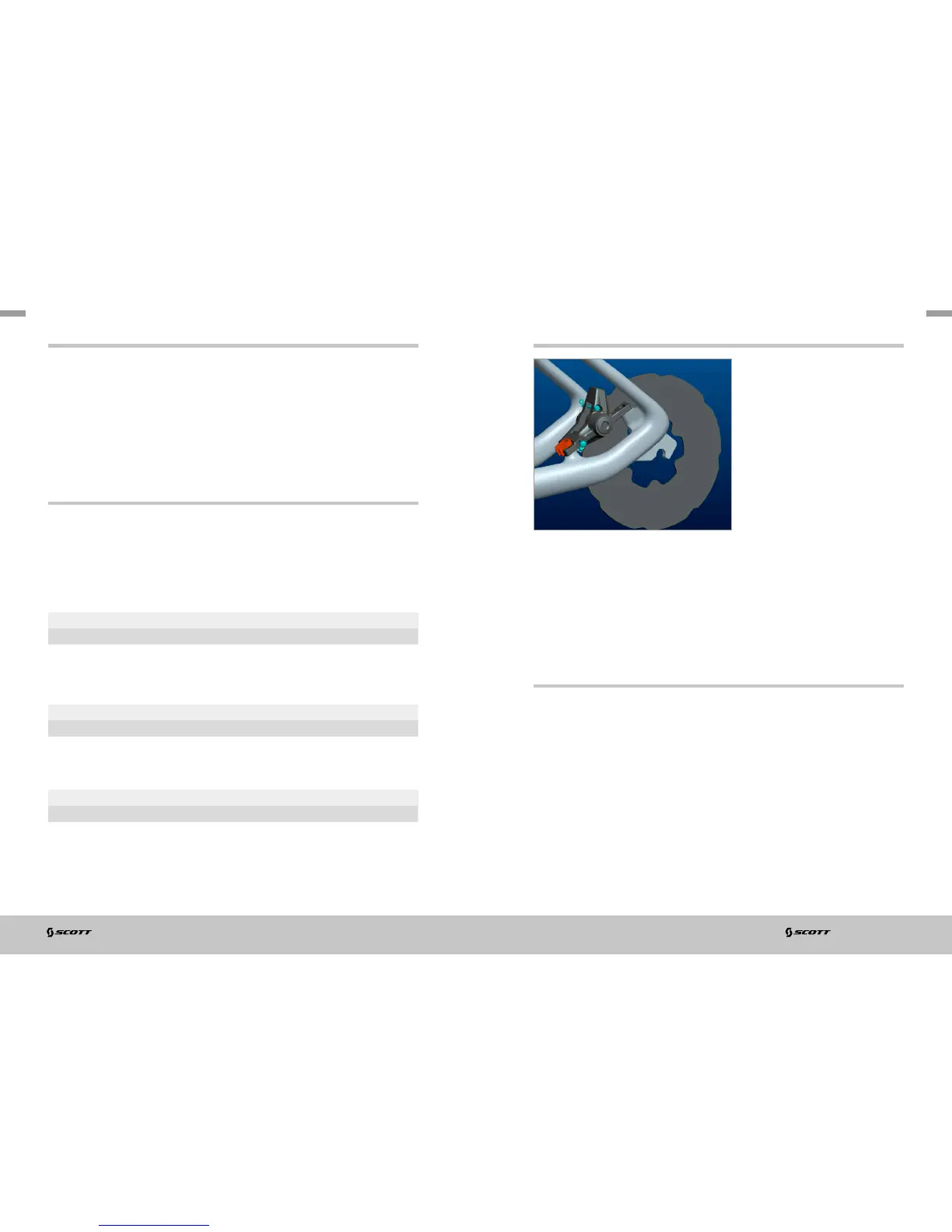

The rear disc brake on Scale Carbon
is Postmount (PM) Standard on the
left chainstay and optimized for
160mm/6” rotors, so the calliper
can be mounted directly without
adapters on the Postmount fixation.
Please note Scale Carbon is
designed for disc rotors between
160mm/6” and 185mm/7” (adapter
needed from manufacturer of the
brake) only.
For the set up of the front fork please use the fork specific manual attached to
the bike.
We recommend using front forks with distance of
487mm/19.2” for Scale 700 and
506mm/19.9” for Scale 900
between mid of axle to top of crown, as this will not influence the geometry and alter
handling of the bike.
