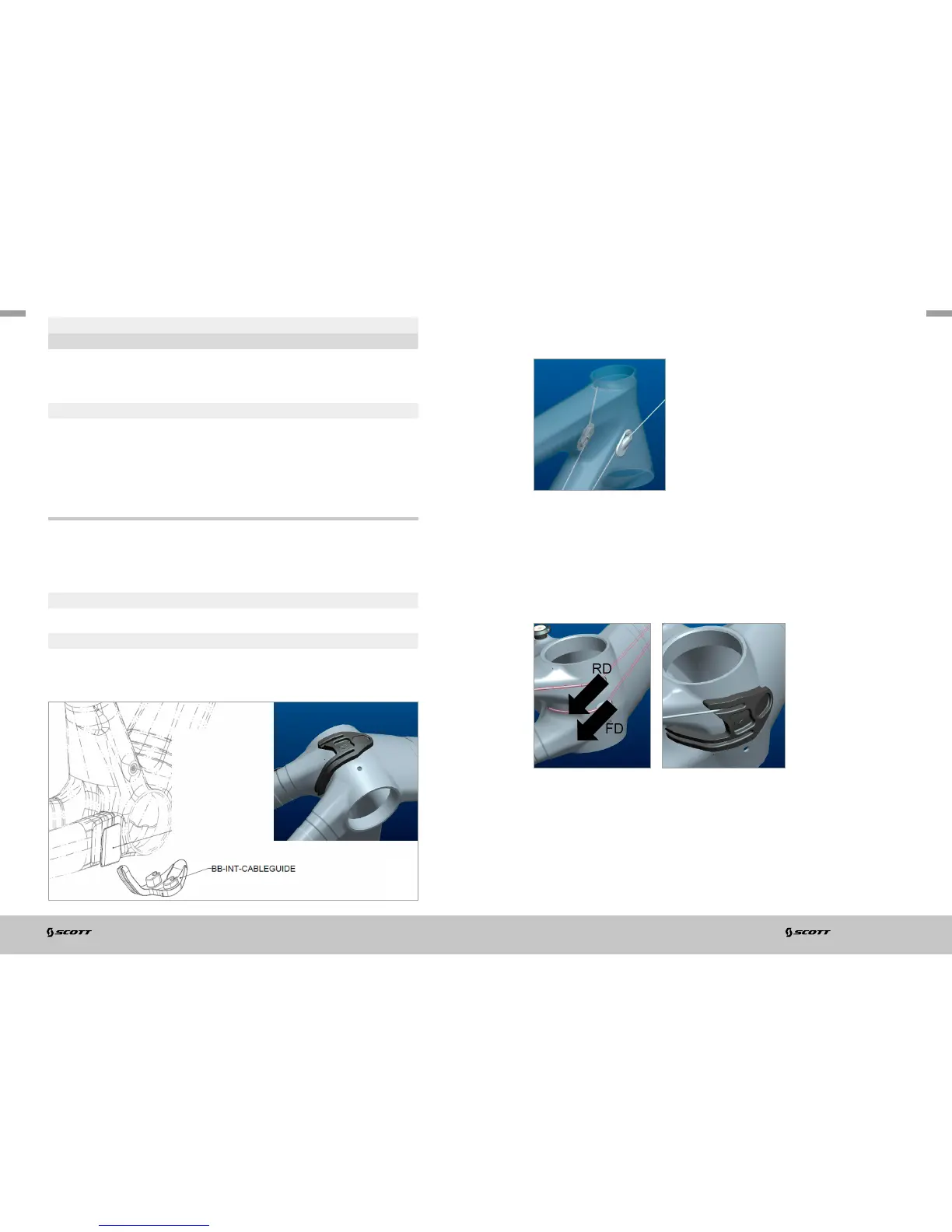

BB CABLE GUIDE/CABLE ROUTING
Scale Carbon features also an internal cable routing for front and rear derailleur.
A special BB Cable Guide was developed for Scale Carbon which is available as a
spare part at the SCOTT distribution with article number
for Scale 700
235285 Cableguide BB Scale Carbon 700 2014
and for Scale 900
219579 Cableguide BB Scale Carbon
Please note that those 2 cableguides are not interchangeable between the
frame sizes.
Ritchey WCS Carbon Zero Tapered PF 50-61mm 18mm UD PRD 13636
Ritchey PRO Tapered PF 50-61mm 12.9mm PRD 13640
It is also possible to use forks with a standard 1 1/8” steerer tube when using a
reducer headset such as e.g.
Ritchey WCS Carbon Zero Tapered PF 50-61mm 18mm UD for 1 1/18" fork PRD 14860
Please note that the outer housing of the FD and RD cables will stop at the cable
stop/port on the front end of the down tube.
If you want to replace the cables, please follow these steps:
1. Remove the clip-in BB Guide in the BB housing
2. Push the inner cables from the front downward inside the downtube to the BB
housing.
3. Pull them out of the related holes (RD on right side, FD on left side) on the BB
housing.
4. Push them through the related holes on the BB Guide and clip the BB Guide into
the BB housing
5. Follow the standard set up and assembly instructions of the shifting system
manufacturer for final adjustment of the shifting system

SCOTT SCALE CARBON Specifications

General

Frame Material	Carbon
Wheel Size	29"
Wheelset	Syncros (depending on the specific model)
Saddle	Syncros (depending on the specific model)
Fork	RockShox / FOX / Suntour (depending on the specific model)
Drivetrain	Shimano or SRAM (depending on the specific model)
Brakes	Shimano or SRAM disc brakes (depending on the specific model)
Tires	Schwalbe or Maxxis (depending on the specific model)
Handlebar	Syncros Alloy or Carbon (depending on the specific model)
Seatpost	Syncros Alloy or Carbon (depending on the specific model)
