SCOTT SCALE RC User Manual

2023 SCALE | ENGLISH 3
|
SCALE

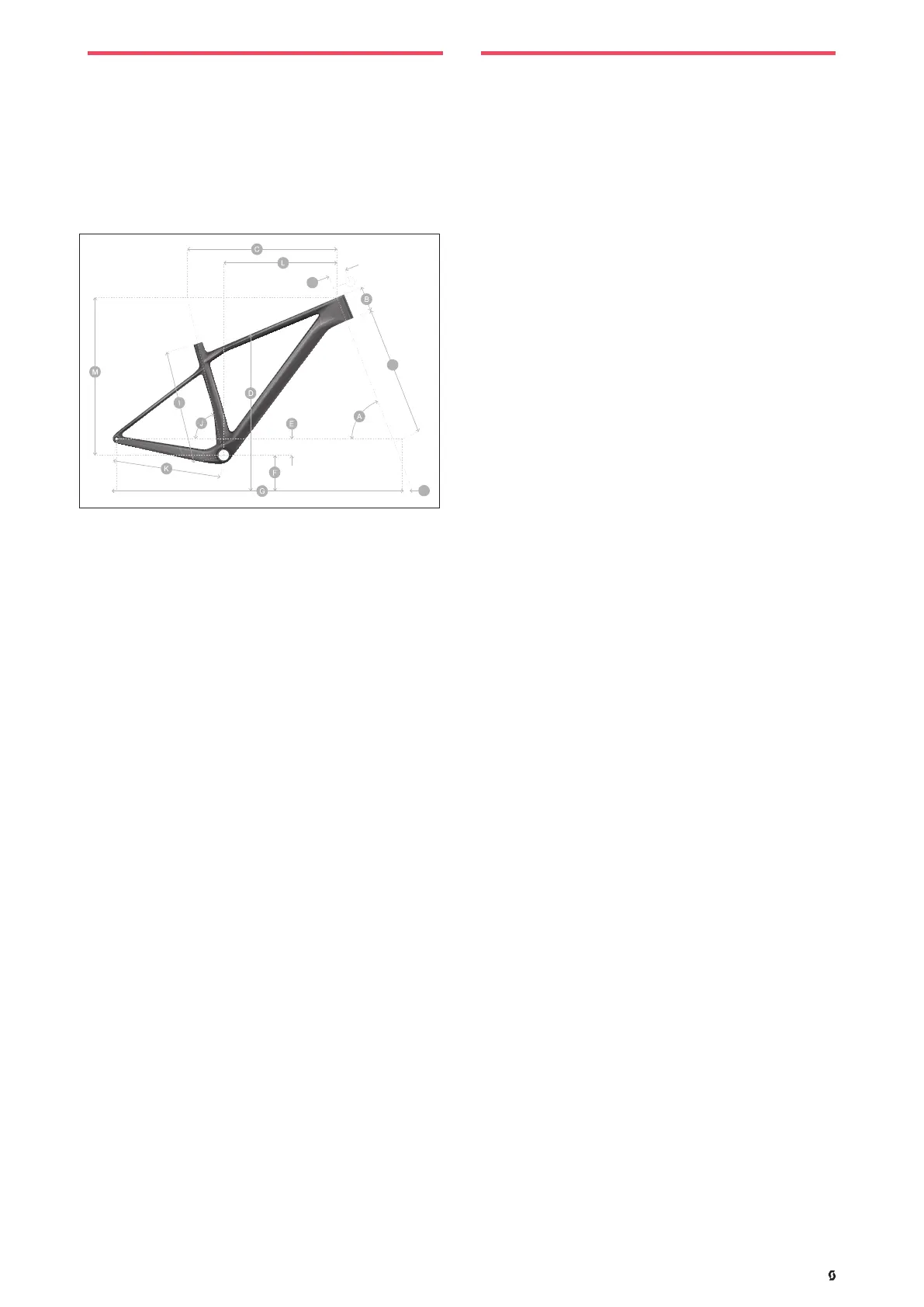

GEOMETRY & TECHNICAL DATA
SEATPOST
mm 31.6 (use carbon grease)
SEATPOST CLAMP
mm 34.9
TRAVEL
mm 100 Ft
SHOCK LENGTH
mm 185
MAX ROTOR
mm 180 Rr/Ft (160 Rr Small)
MAX CHAINRING
Tooth 38
MAX TYRE WIDTH
in 2.5
CHAINLINE
mm 55
N
O
P
Alloy/Carbon Alloy/Carbon Alloy/Carbon Alloy/Carbon Alloy
MY23 SCALE SM MED LG XL XXL
A Head tube angle
° 67.4/67.9 67.4/67.9 67.4/67.9 67.4/67.9 67.4
B Head tube length
mm 90/90 100/95 110/110 120/120 120
C Top tube horizontal
mm 580/575 605/600 630/626 660/656.5 680
D standover height
mm 755/752 786/781 805/800 835/835.1 870
E BB offset
mm -60/-62 -60/-62 -60/-62 -60/-62 -60/-62
F BB height
mm 315/313 315/313 315/313 315/313 315
G Wheelbase
mm 1111.8/1105.4 1138.2/1131.1 1164.6/1158 1195.9/1189.4 1215.9
I BB center to TST
mm 390/390 440/440 480/480 530/530 580
J Seat angle
°
75/75.4 75/75.4 75/75.3 75/75.3 75
K Chainstay
mm 425/425 425/425 425/425 425/425 425
L Reach
mm 420.3/418.5 442.8/442.3 463.3/463.6 492.9/491.2 512.9
M Stack
mm 596.1/600.3 605.3/604.9 614.6/618.9 623.8/628.1 623.8
Fork Rake
mm 44 44 44 44 44
Trail
mm
112.6/105.1 112.6/105 112.6/105 112.6/105 112.6

SCOTT SCALE RC Specifications

General

Fork	RockShox SID SL Select
Rear Derailleur	SRAM GX Eagle
Crankset	SRAM X1 Eagle, 32T
Tires	SCHWALBE RACING RAY 29X2.25" EVO / SUPER RACE / TLE / 67EPI / SCHWALBE RACING RALPH 29X2.25" EVO / SUPER RACE / TLE / 67EPI
Shifters	SRAM GX Eagle
BB-Set	SRAM DUB
Chain	SRAM GX Eagle
Cassette	SRAM XG-1275, 10-52T
Seat	Syncros Belcarra Regular
