SCOTT SPARK Manual

SPARK
6 2011 SCOTT BIKE OWNERS MANUAL
SPARK
7
ENGLISH

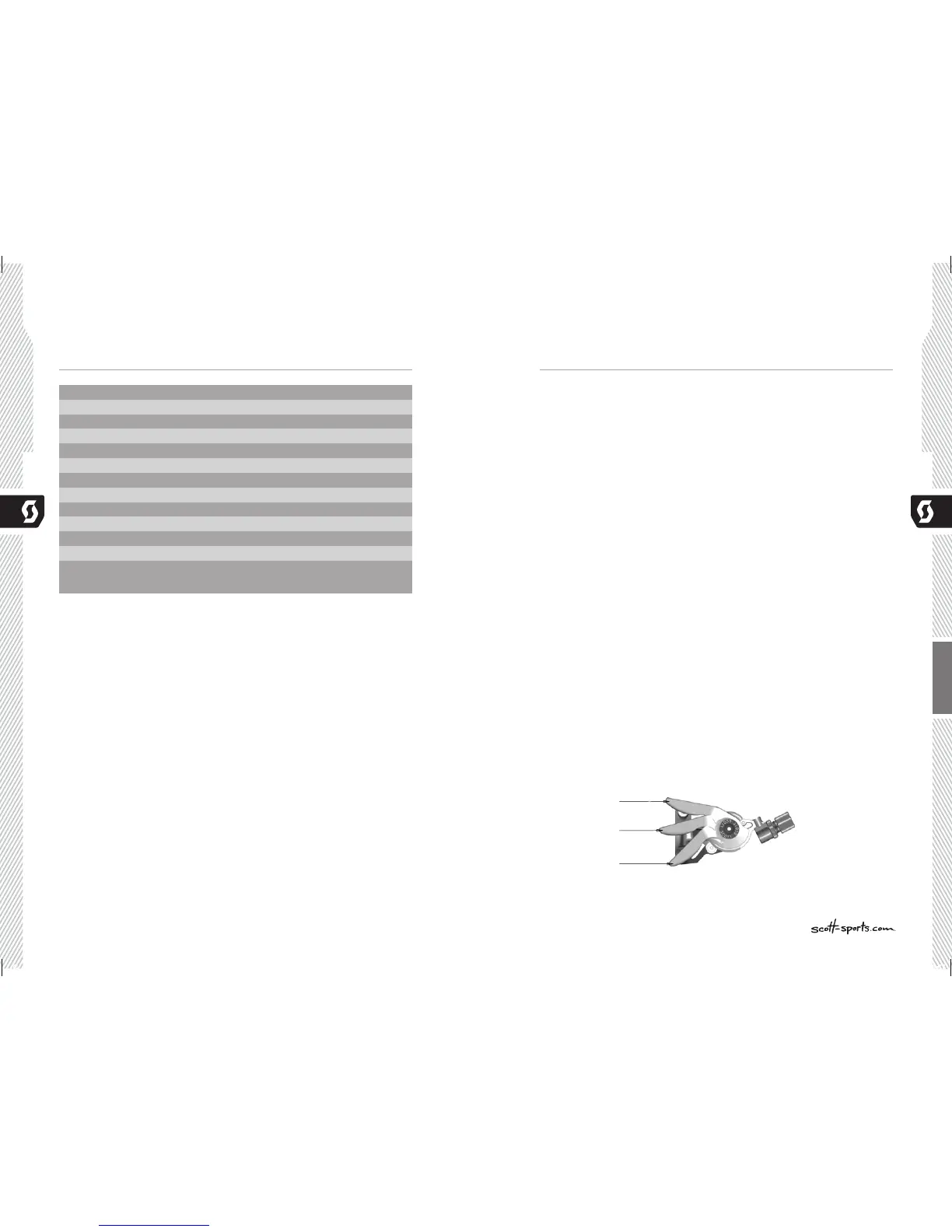

TECHNISCHE DATEN SPARK TWINLOC – REMOTE CONTROL LEVER
Travel 110/70/0mm
Suspension Ratio 2.97
Piston stroke 37mm
Shock (Eye to Eye) 165mm
Hardware Mainframe 22,2mm x 6mm
Hardware Swingarm 22,2mm x 6mm
Seatpost diameter carbon frames 34,9mm; alloy frames 31.6mm
Headset 1 1/8“semi integr. with 44.0mm cups
Fork travel 100 - 120mm
Fork length 471 - 491mm
BB housing 73mm
Front derailleur Downswing 34.9mm Downpull
Bearings 2 x 61900 (22x10xT6)
6 x 63800 (19x10xT7)
The TWINLOC remote control lever is the evolution of the already outstanding
TRACLOC system of Scott.
While TRACLOC allows the change on the Scott rear shocks Nude TC and Equalizer
2 between the Scott patented Lock-out, traction and full-mode on the fly from the
handlebar, the TWINLOC now allows also the remote control of the front fork to shift
between lock-out and open mode at the same time when you change the modes on
the Scott rear shox.
The 3 modes on the lever and suspension units are:
- FullTravelMode: full travel rear, full travel front
- TractionMode: traction mode rear, full travel front
- Lock-outMode: lock-out rear, lock-out front
Scott offers different TWINLOC levers with following fork/rear shock combinations:
- Nude TC with adapters for SRAM /RockShox fork and FOX fork/DT Swiss fork
(Scott Article number: 216351)
- DT M210 with adapters for SRAM /RockShox fork and FOX fork/DT Swiss fork
(Scott Article number: 216352)
Please note that the DT Swiss M210 rear shock does not offer a traction mode, but only
lock-out and full-mode.
Important: You can only assemble the TWINLOC remote lever in “left side upward
position” on the handlebar.
You have 3 positions on the TWINLOC remote lever.
- mostforwardposition: lock-out rear, lock-out front
- middleposition: traction mode rear, full travel front
- mostbackwardposition: full travel rear, full travel front
Information and data contained in this document is confidential and proprietary to SCOTT SPORTS SA.
Copying, using or disclosing such information and data without written permission of SCOTT SPORTS SA is prohibited.
Project
TWINLOC
Adress Part name Weight General tol. Format
SCOTT SPORTS SA
Route du Crochet 17
1762 Givisiez
SWITZERLAND
ALL MODES
- -
A3
Scale Material Projection
Version: 01
1:1
-
Division Pro-E file Drawn by Date Page
BIKE cable-adapter.prt VL 03/06/09 1 / 1
4
3
2
1
F E D C B A
4
3
2
1
F E D C B A
LOCK OUT MODE
TRACTION MODE
ALL TRAVEL MODE
PRESS TO RELEASE
Lock Out Mode
Traction Mode
Full Travel Mode
C_spark_en.indd 6-7 03.04.10 13:57

SCOTT SPARK Specifications

General

Suspension	Full Suspension
Wheel Size	29"
Rear Travel	120mm
Fork Travel	120mm
Fork	Fox 34 Float
Rear Shock	Fox Nude
Wheels	Syncros Silverton 2.0
Brakes	Shimano
Stem	Syncros
Saddle	Syncros
Seatpost	Syncros Duncan
Frame Material	Carbon
