Model CHL86200
OPERATION
USE THIS BATTERY CHARGER ONLY WITH
Scotts® 62V LITHIUM-ION BATTERY PACKS.
CHARGING BATTERY PACK
Battery packs are shipped in a low charge condition to
prevent possible problems. Therefore, you should
charge them prior to use.
NOTE: Batteries will not reach full charge the first time
they are charged. Allow several cycles (operating tool
followed by recharging batteries) for them to fully
charge.
TO CHARGE
• Use this battery charger only with Scotts® Lithium
62V lithium-ion battery packs.
• Make sure power supply is normal house voltage,
120 volts, 60 Hz, AC only.
• Connect charger to power supply. The light will be
constant red indicating that the power is on.

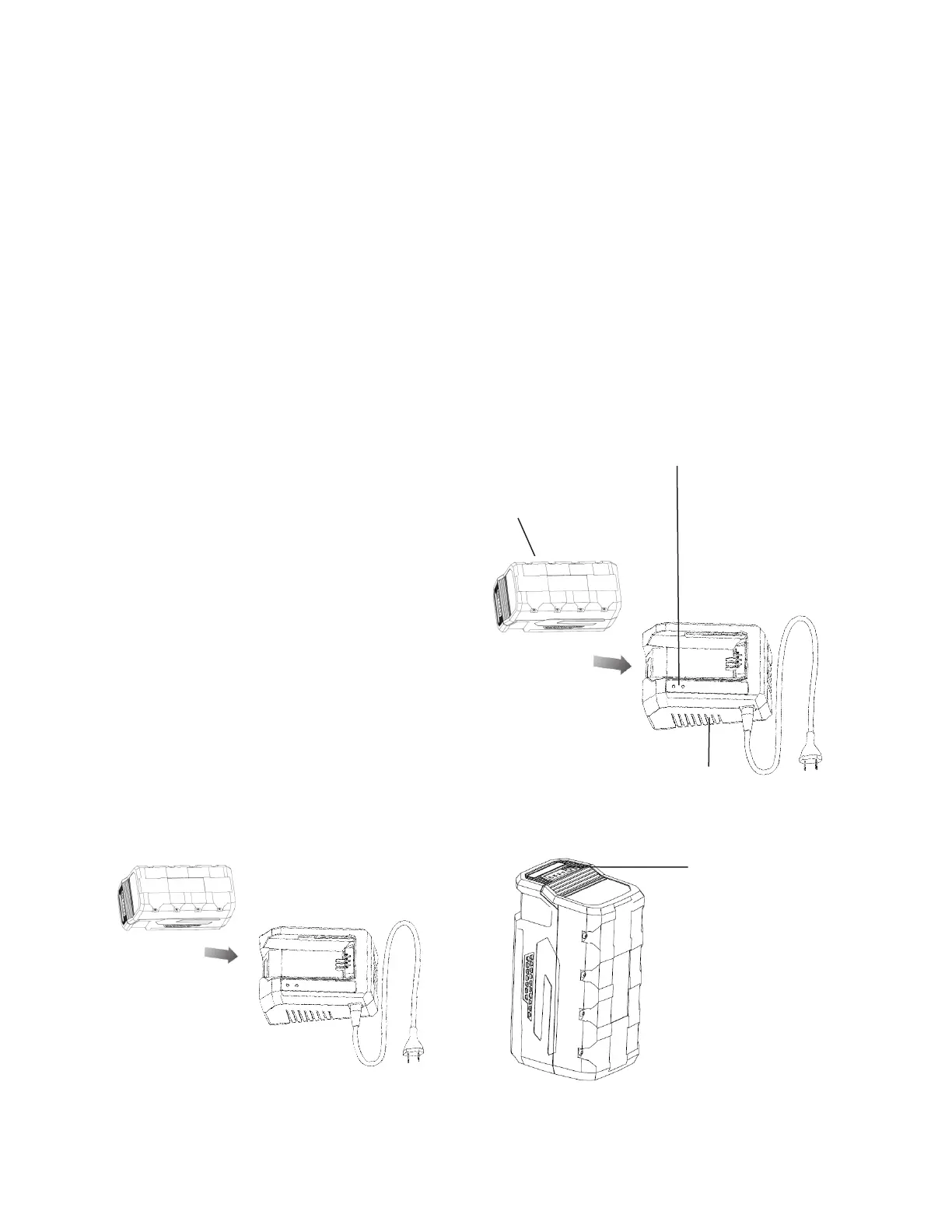

• Slide battery pack into charger. (Fig. 1)
• Press down on battery pack to be sure contacts on
battery pack engage properly with charger
contacts.
• Charger lights will be illuminated. (Fig. 2)
A constant RED light and a flashing green light
indicates the battery is charging.
Constant RED AND GREEN lights indicate the
battery is fully charged.
• The battery pack will become slightly warm to the
touch while charging. This is normal and does not
indicate a problem.
• DO NOT place charger in an area of extreme heat
or cold. It will work best at normal room
temperature.
• When the battery is fully charged, unplug your
charger from power supply and remove the battery
pack.
• Charge time is dependent upon the type of battery
pack.
BL86225 charges in approximately 90 minutes.
BL86240 charges in approximately 140 minutes.
BL86250 charges in approximately 180 minutes.
Button– press to check
battery’s capacity
Constant Red + Flash Green = Battery is charging
Constant Red + Constant Green = Battery is fully charged
