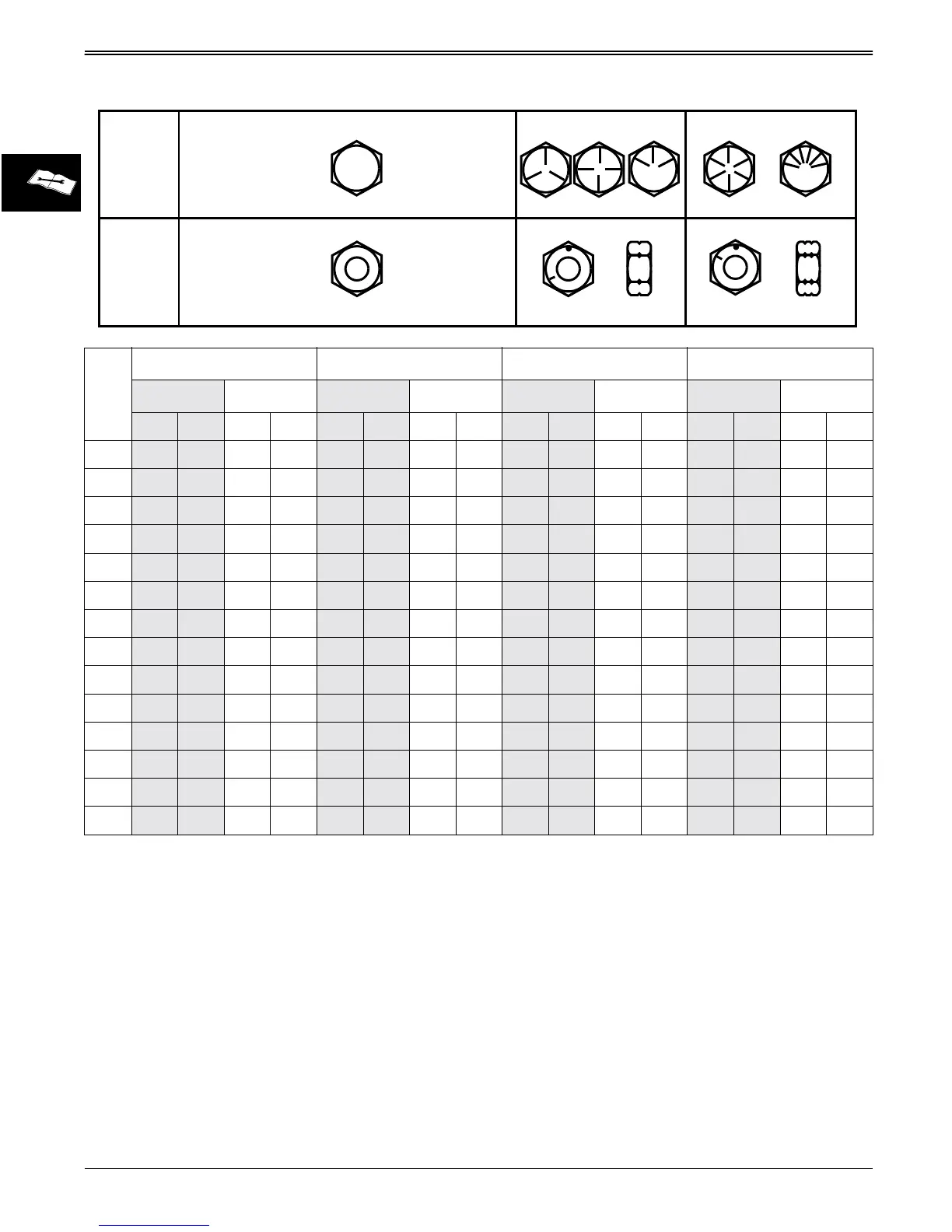

INCH TORQUE VALUES
SPECIFICATIONS & INFORMATION
INCH TORQUE VALUES
DO NOT use these values if a different torque value or tightening procedure is given for a specific application.
Torque values listed are for general use only. Check tightness of fasteners periodically.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same or higher grade. If higher grade fasteners are used, these should only
be tightened to the strength of the original.
Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from
failing when tightening.
Tighten plastic insert or crimped steel-type lock nuts to approximately 50 percent of the dry torque shown in the
chart, applied to the nut, not to the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value.
a
“Lubricated” means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings.
“Dry” means plain or zinc plated without any lubrication.
b
Grade 2 applies for hex cap screws (not hex bolts) up to 152 mm (6 in.) long. Grade 1 applies for hex cap screws over
152 mm (6 in.) long, and for all other types of bolts and screws of any length.
Size
Grade 1
Grade 2
b
Grade 5, 5.1 or 5.2 Grade 8 or 8.2
Lubricated
a
Dry
a
Lubricated
a
Dry
a
Lubricated
a
Dry
a
Lubricated
a
Dry
a
Nm lb-ft Nm lb-ft Nm lb-ft Nm lb-ft Nm lb-ft Nm lb-ft Nm lb-ft Nm lb-ft
1/4
3.8 2.8 4.7 3.5 6 4.4 7.5 5.5 9.5 712913.5 10 17 12.5
5/16
7.7 5.7 9.8 7.2 12 9 15.5 11.5 19.5 14.5 25 18.5 28 20.5 35 26
3/8
13.5 10 17.5 13 22 16 27.5 20 35 26 44 32.5 49 36 63 46
7/16
22 16 28 20.5 35 26 44 32.5 56 41 70 52 80 59 100 74
1/2
34 25 42 31 53 39 67 49 85 63 110 80 120 88 155 115
9/16
48 35.5 60 45 76 56 95 70 125 92 155 115 175 130 220 165
5/8
67 49 85 63 105 77 135 100 170 125 215 160 240 175 305 225
3/4
120 88 150 110 190 140 240 175 300 220 380 280 425 315 540 400
7/8
190 140 240 175 190 140 240 175 490 360 615 455 690 510 870 640
1
285 210 360 265 285 210 360 265 730 540 920 680 1030 760 1300 960
1-1/8
400 300 510 375 400 300 510 375 910 670 1150 850 1450 1075 1850 1350
1-1/4
570 420 725 535 570 420 725 535 1280 945 1630 1200 2050 1500 2600 1920
1-3/8
750 550 950 700 750 550 950 700 1700 1250 2140 1580 2700 2000 3400 2500
1-1/2
990 730 1250 930 990 730 1250 930 2250 1650 2850 2100 3600 2650 4550 3350
1 or 2
b
2
5
5.1
5.2
5
8
8.2
8
No Marks
No Marks
SAE
Grade
and Nut
Markings
SAE
Grade
and Head
Markings
