Assembly - 30
ASSEMBLY

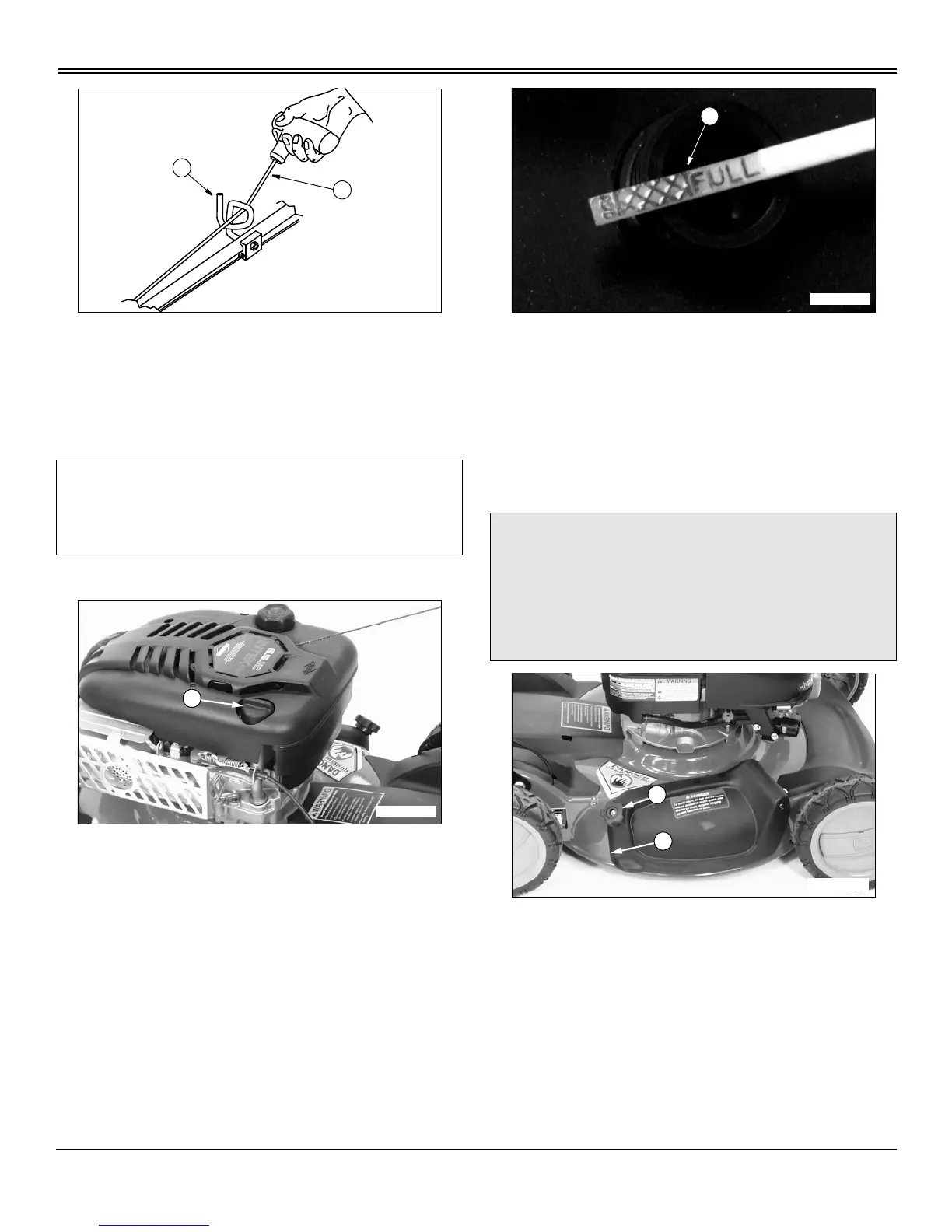

Pull and install starter rope (A) onto rope guide (B)
mounted on the right side of the handle.
AddEngineOil
1. Park mower on a level surface.
2. Turn oil dipstick (A) 1/4 turn to the left. Remove dipstick.
3. Add 0.47 L (16 oz) oil through dipstick filler tube.
4. Check oil level:
• Install dipstick. Turn dipstick 1/4 turn right to tighten.
• Remove dipstick.
• Check oil level. Oil should be to the FULL mark (B). If
not, add oil.
5. Install and tighten dipstick.
6. Remove "NO OIL" tag from top of engine.
Install Grass Bag
1. Remove mulch guard knob (A).
2. Lift and hold spring loaded mulch guard (B) up.
3. Install bagging chute:
IMPORTANT: Avoid damage! ENGINE IS SHIPPED
WITHOUT OIL.
You MUST add oil before running the engine. See
Service section for correct oil application.
M88828
B
A
MX1567
A
cCAUTION: Avoid injury! DO NOT operate mower
unless mulch guard, side discharge chute or
grass bag and bagging chute are in place.
BaggingchuteMUSTberemovedandmulch
guard secured in place when grass bag is not
being used.
M61459
B
MX1566
A
B
