Assembly - 31
ASSEMBLY

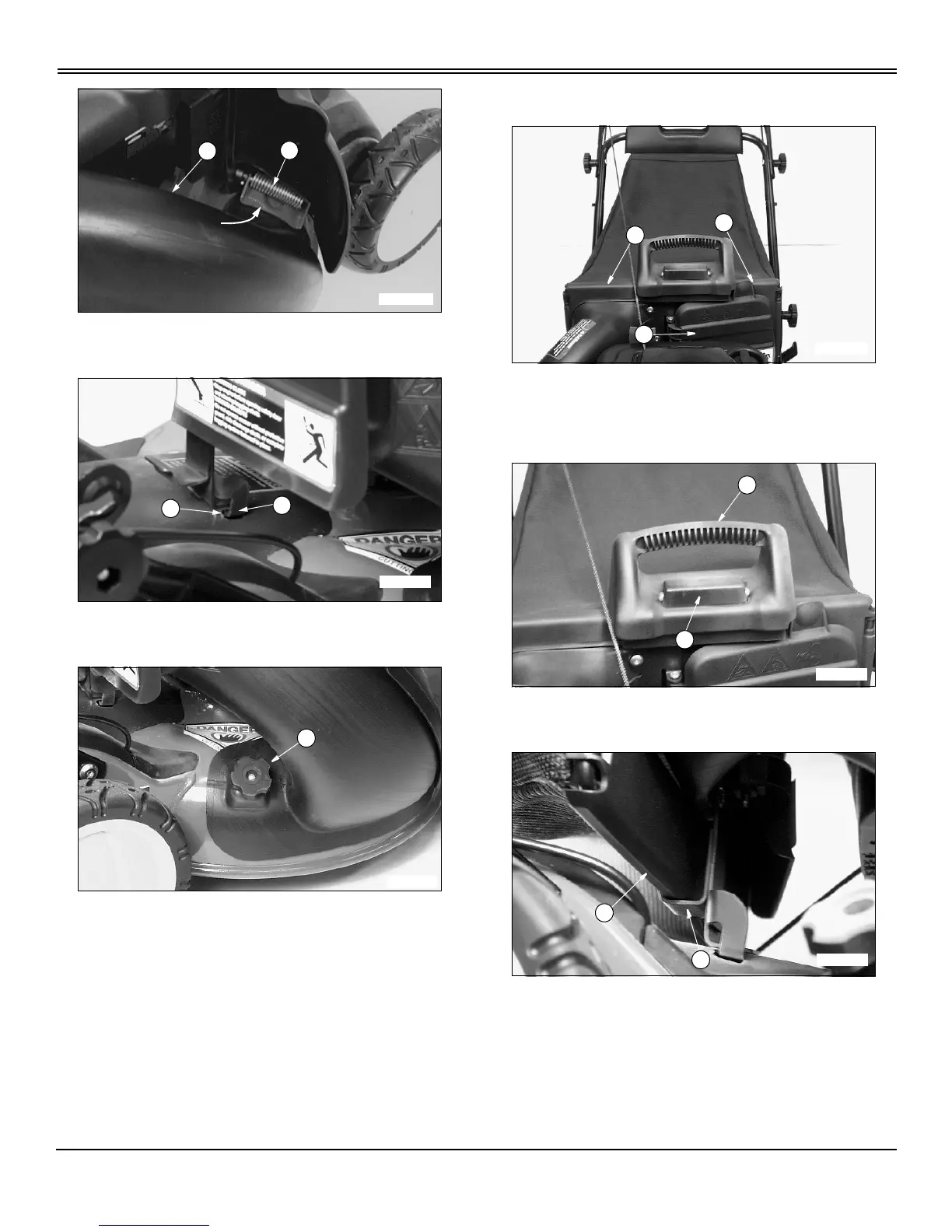

• Slide bagging chute (C) into position under the mulch
guard mounting bracket (D).
• Insert bagging chute tab (E) into rear mower shield
slot (F).
• Reinstall and tighten knob (A).
NOTE: Doors (H) on grass bag must be closed prior to
installation onto the bagging chute.
4. Hang grass bag on lower handlebar.
5. Open spring loaded bagging chute safety door (I).
6. Install grass bag onto bagging chute.
• Grass bag handle (J) should “snap” down onto tab
(K).
• Make sure front of grass bag (L) rests in bagging
chute bracket (M).
M93036
C
D
M96547
E
F
M96548
A
M96549
I
H
H
M96550
K
J
M96552
L
M
To Next Page
