EN ::: 28
EN
1

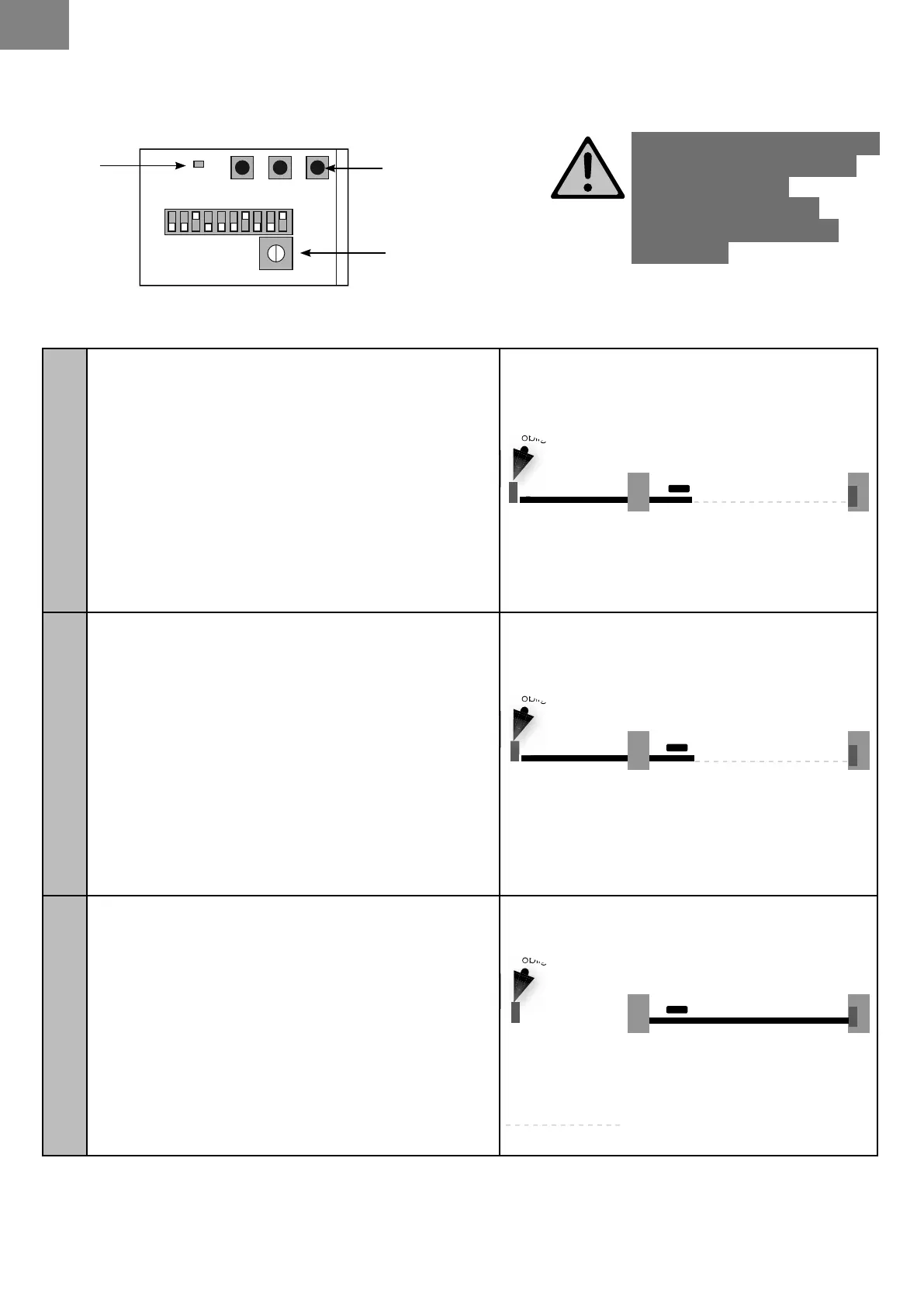

Manually position the gate in its fully open
position (Figure 1).
Use the manual unlocking system or a 24V
battery to put the motors in position.
NB: mandatory central and side stops
(non supplied)
2
Press and release the button p2, the gate
will close in order to automatically learn
the limit of travel.
(Figure 2).
If the gate doesn’t close completely, then
increase PV1.
3
Wait for the gate to be completely closed
and check that each motor stops at the
limit switches after 2 seconds of thrust.
(Figure 3)
> LEARNING THE TRAVEL OF THE GATE - CTR50
FIGURE 2
FIGURE 3
FIGURE 1
Butée latérale
obligatoire
Butée latérale
obligatoire
Butée latérale
obligatoire
Butée latérale
obligatoire
Butée latérale
obligatoire
Butée latérale
obligatoire
During gate travel learning, all
safety devices are ignored.
Take all necessary
precautions and keep
everyone away from the
installation.
1 2 3 4 5 6 7 8 9 10
20 21 22 23 24 25 26 27 28191817161514131211
P2 P3P1
DL1
ON
OFF
1 2 3 4 5 6 7 8 9 10
1 2 3
1
2
DL3
DL4
DL5
DL6
DL7
DL8
DL9
DL10
DL11
RV1
Indicator
LED DL1
Keys P1, P2 and P3
Potentiometer RV1
