SCS Sentinel Open3 - Motorization Connection

EN ::: 25
EN
> PREPARING THE 230 VOLT POWER SUPPLY
Cut off the power supply before making any connections. Implementation, electrical
connections and adjustments must be carried out in accordance with good practice by a
quali ed and specialized person. If in doubt, seek advice!
Read the safety instructions before making any connections. Follow the electrical
connection instructions on page 3.
Before start-up, make sure the protective covers are tightly secured and interlocked.

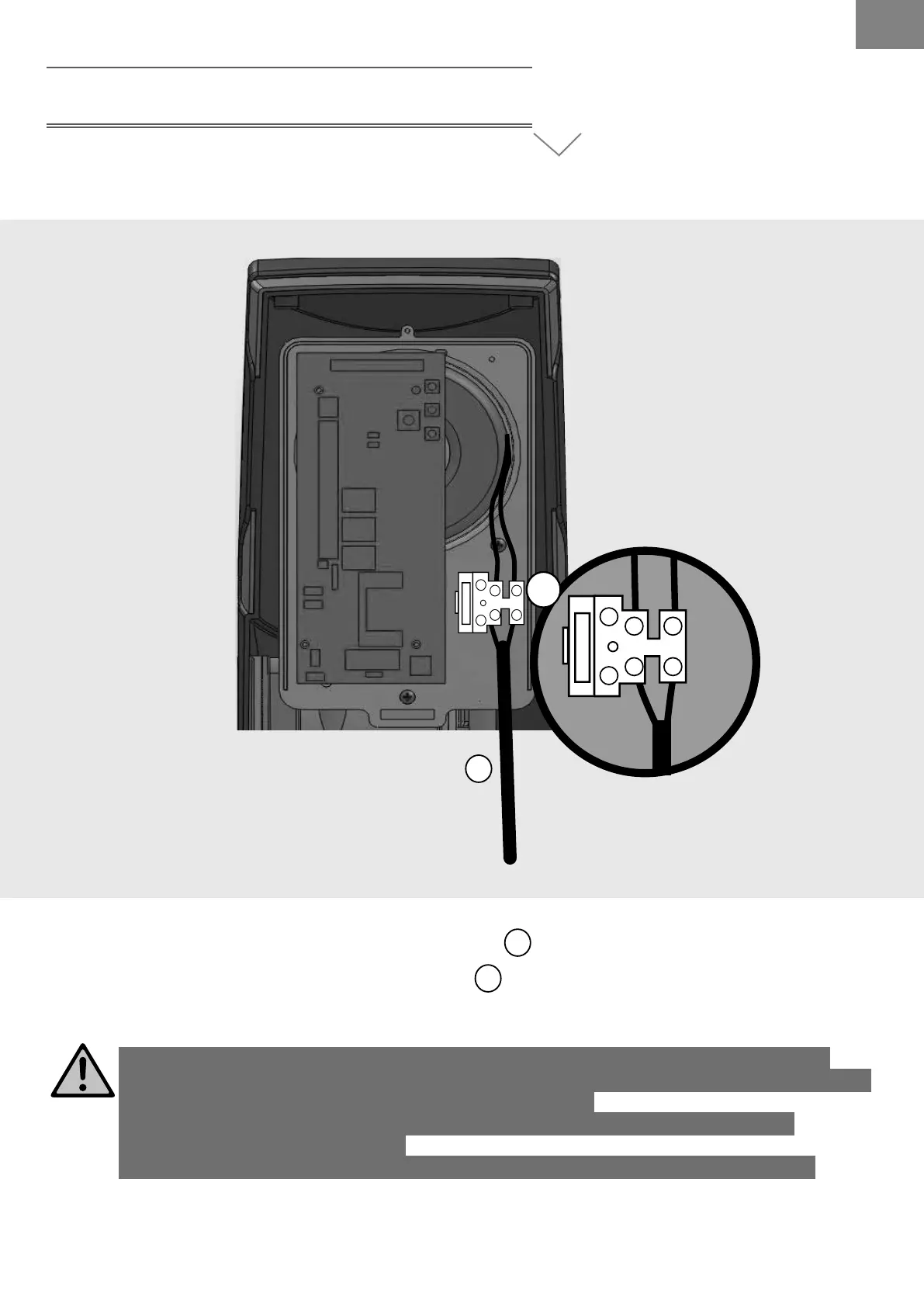

1
- Thread your power cable through under the motor
1
2 -
Connect your power cable to the terminal strip
2
.
1
CÂBLE
ALIMENTATION
230 VOLTS
230V
brown
blue
230 V
2
Transfo
MOTORIZATION CONNECTION
