EN ::: 35
EN
2-channel radio receiver, 230V 16A. Memorizes the programmed remote controls even in the event
of a power cut.
2 operating mode are possible:
1) «Flip-op» mode: The relay is activated by pressing the button and deactivated by pressing the
same button again.
Bridge terminals 2-3 (see diagram on next page) of JP1. (Bridge = cover the terminals with the
supplied jumper)
2) «Timer» mode: The relay is activated by pressing the button and remains activated for the set time
(4 minutes maximum).
Bridge terminals 1-2 (see diagram on next page) of JP1. (Bridge = cover the terminals with the
supplied jumper)
Learning the remote controls:
a) Press button P2 once to learn a remote control controlling channel 1.
b) Press button P2 twice to learn a remote control controlling channel 2.
PLEASE NOTE: Leave at least 1 second between the button P2 presses.
When you have chosen the channel you wish to control:
Wait for the LED to light up. Press the remote control key you wish to programme for at least 1
second.
Release the button, the LED will go out to indicate that the key has been memorized.
If learning fails, the LED stays on for 10 seconds then will go out. Repeat the operation and if need be
erase the previous programming by performing the following procedure.
ERASING ALL REMOTE CONTROLS:
Press button P2 until the LED goes out (for about 10 seconds).

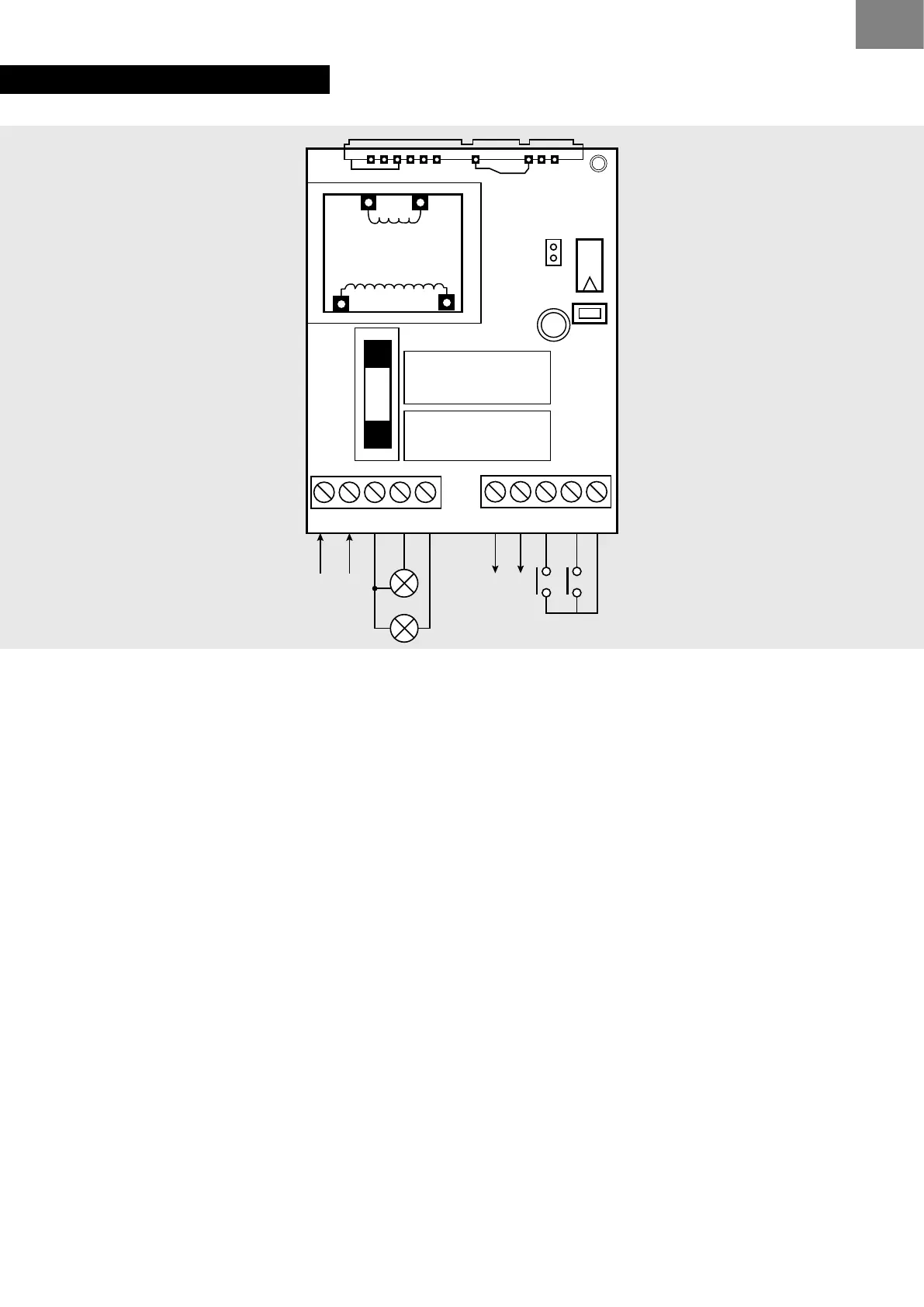

LIGHTING RADIO CONTROL
J2J1
K1
K2
P1
JP1
U2
TP1
12V
220V
FASE NEUT COM CH1 CH2 +12 COM CH1 CH2 COM
OUT
12 Vcc
DL1
RX1
1 2 3 4 5 6 7 8 9 10
IN
230 Vac
ANT
