SCULPFUN S9 - Preview the main parts; Main Unit Components

Preview the main parts
7、X Beam set
8、Laser module
1、Back Beam
2
、
Front
Beam
6、Mainboard support
3、Left Beam
4、Right Beam
5、Foot
support
5
5
Main Unit：
1、Back Beam
2、Front Beam
3、Left Beam
4、Right Beam
5、Foot support
6、Mainboard support
7、X Beam set
8、Laser module

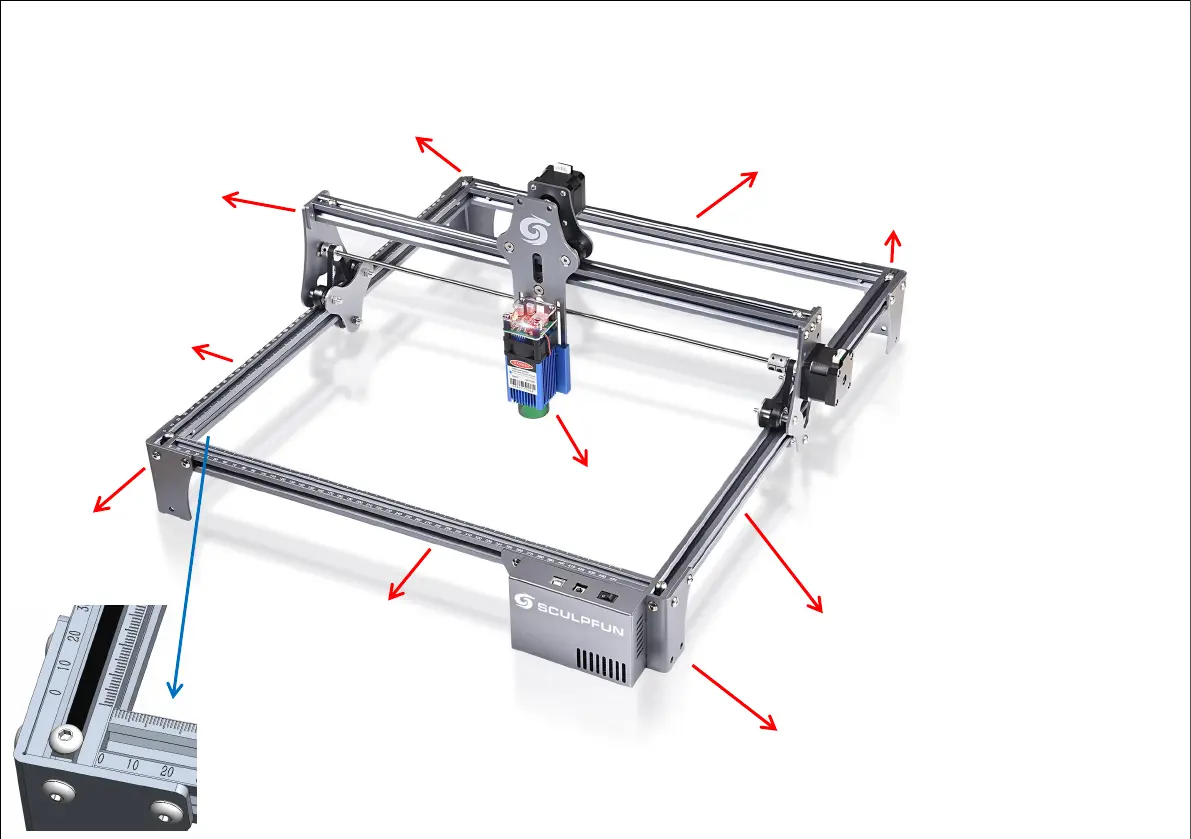

Note!
This picture is the total
picture after the
assembly is completed.
In the subsequent steps,
if you are unclear about
the installation details,
you can check it with
this picture.
Note! Pay attention to the details of
the scale line on the lower left corner
beam, refer to this picture to judge
whether the installation is correct
