SDC 45 Series - Page 2

P:\INSTALLATION INST\ELECTRIC STRIKES\INST-45\INST-45.vsd REV L 05-18 Page 2

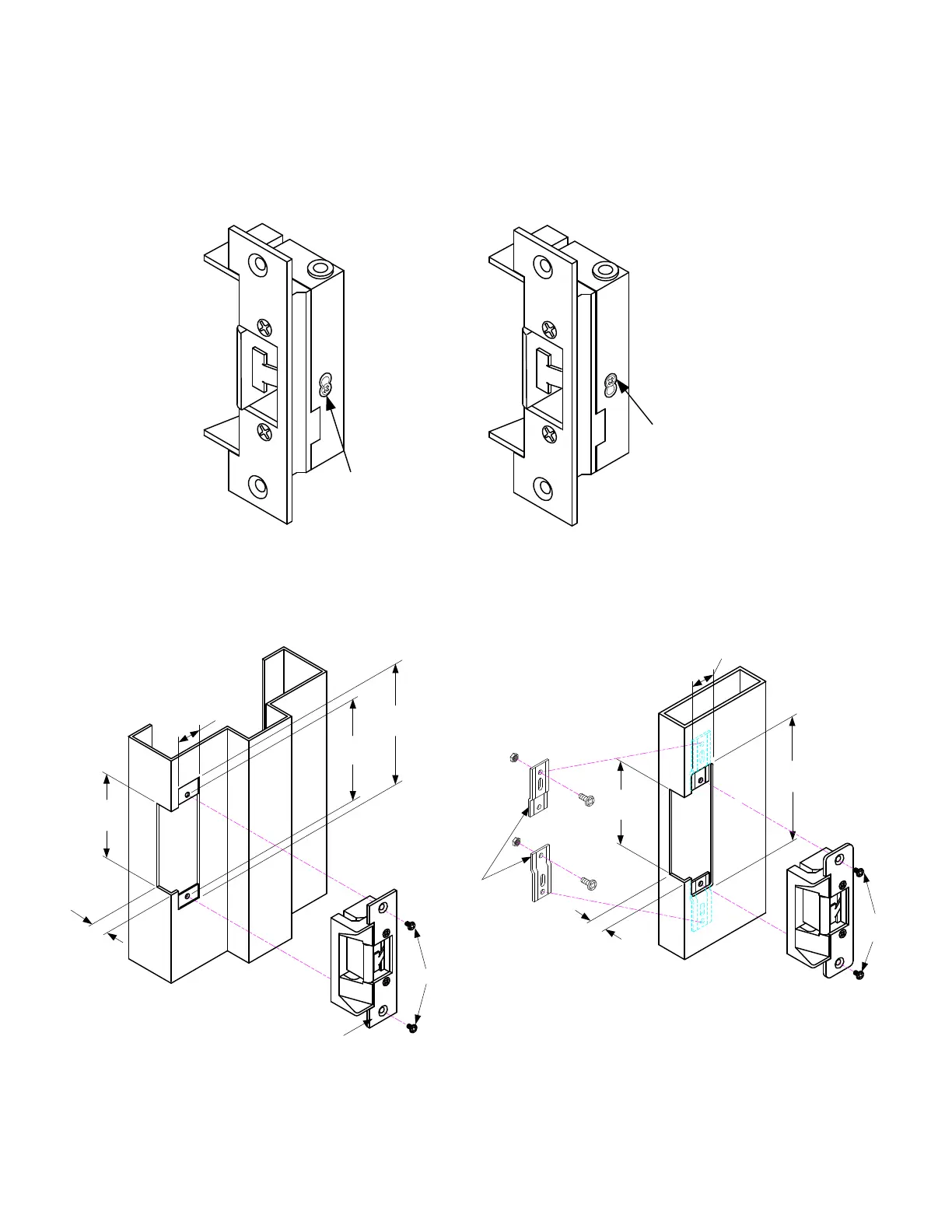

Typical Aluminum Frame
Failsecure standard. Field adjustable from Failsecure to Failsafe as shown.
[30.48]
1.2
[31.75]
1.25
[123.83]
4.875
[85.73]
3.375
#12-24
Screws
MOUNTING
TABS
Typical Hollow Metal Frame
[30.48]
1.2
[31.75]
1.25
[104.78]
4.125
[85.73]
3.375
[123.83]
4.875
#12-24 Screws
Faceplate
1-1/4 x 4-7/8
[31.75 x 123.83]
FAILSECURE
FAILSAFE
