SDC 45 Series - Frame Preparation Details; Hollow Metal Frame Preparation; Aluminum Frame Preparation; Aluminum;Wood Frame Preparation

P:\INSTALLATION INST\ELECTRIC STRIKES\INST-45\INST-45.vsd REV L 05-18 Page 4

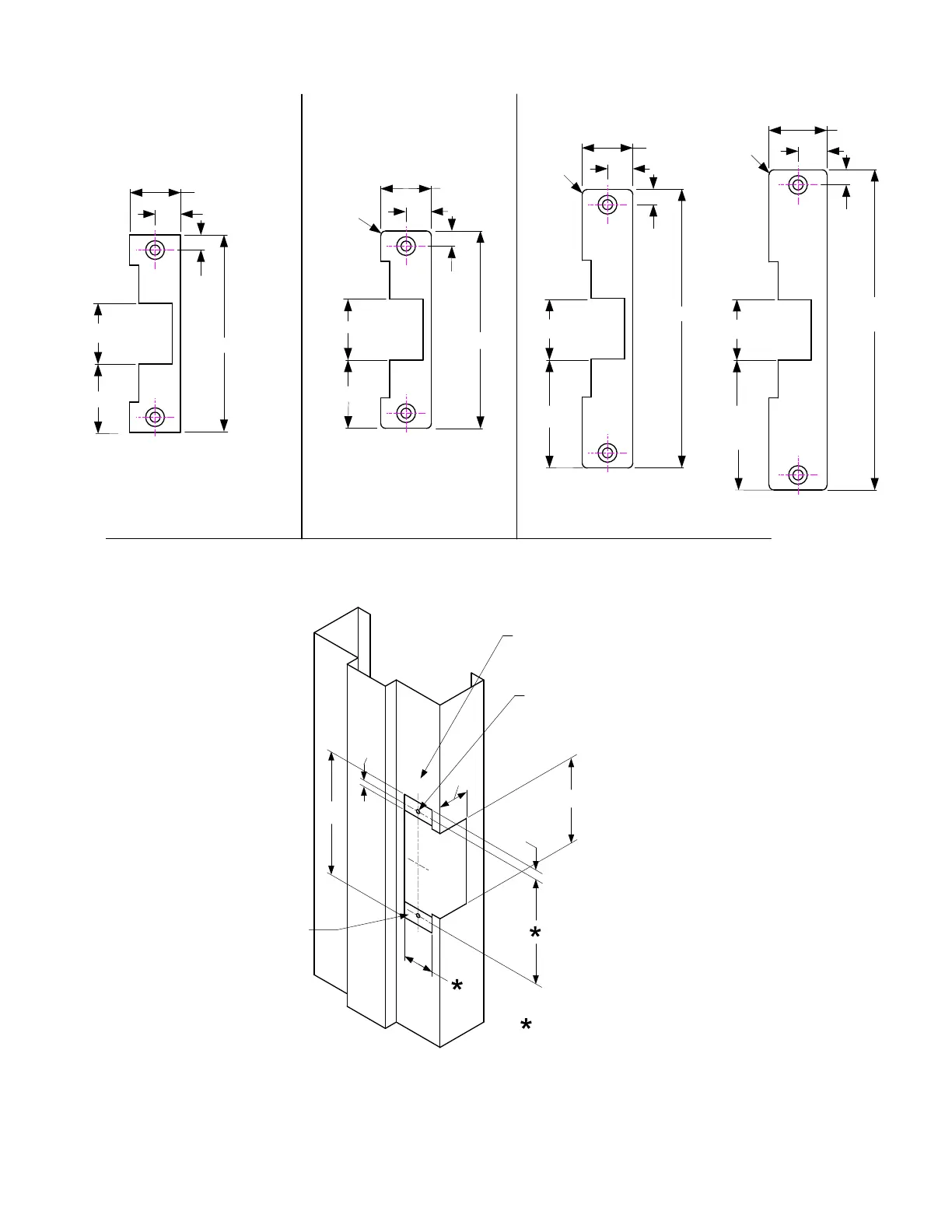

45 SERIES ELECTRIC STRIKE FRAME PREPARATION
FOR HOLLOW METAL FRAMES
HOLLOW METAL,
SQUARE CORNER
FACEPLATE
ALUMINUM / WOOD
RADIUS CORNER FACEPLATES
2X
.375
1.250
2X
.625
4.875
45-4S
1.500
2X 1.688
1.250
2X
.625
2X
.375
45-6R
6.875
1.500
2X
2.688
4X R
.125
MATERIAL THICKNESS = .110
CENTER LINE OF STRIKE
AND LOCK BOLT OF LOCK
SHOULD ALIGN HORIZONTALLY
C
L
C
L
.375
1.2
3.375
.250
4.875
2X TAP FOR
#12-24 UNC THDS
THRU
2X .110 MTG
TAB DEPTH
(TYP)
= SIZE DEPENDANT ON
MODEL ORDERED
45-7R
1.500
2X
3.219
1.438
2X
.719
4X R
.125
2X
.375
7.938
MATERIAL THICKNESS = .110
ALUMINUM
RADIUS CORNER
FACEPLATE
MATERIAL THICKNESS = .110
2X 1.688
2X
.375
1.250
2X
.625
45-4R
1.500
4X R
.125
4.875
