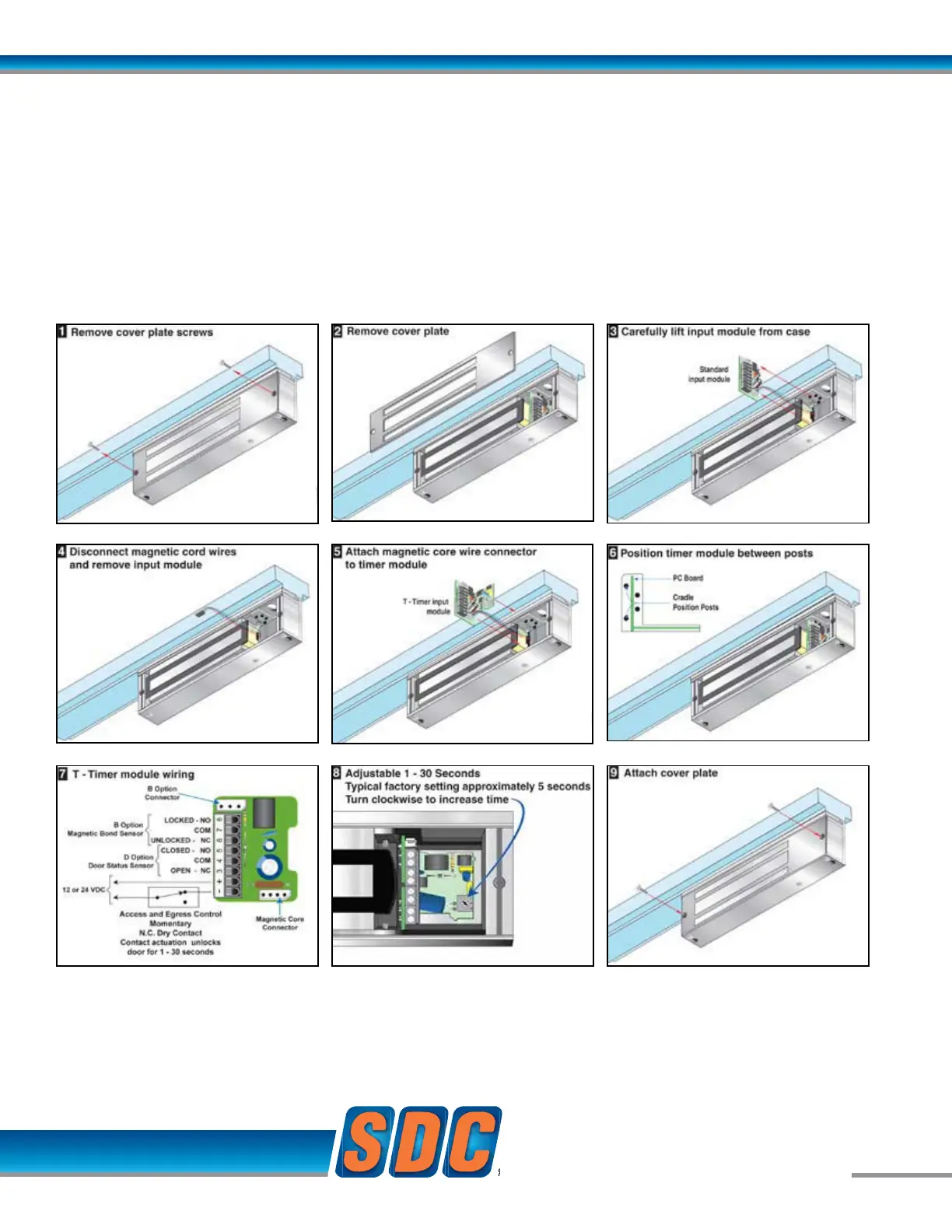

EZ-T-10 TIMER INPUT MODULE
Modular Kit
Relock Delay Timer, Adjustable 1 to 30 Seconds.
Application: The Timer Input Module delays relocking of access controlled doors to provide persons ample time needed
for entry or egress. Momentary interruption of power to the lock input activates the timer module.
Momentary, N.C. Dry Contact required. Contact actuation unlocks the door for 1 – 30 seconds.
