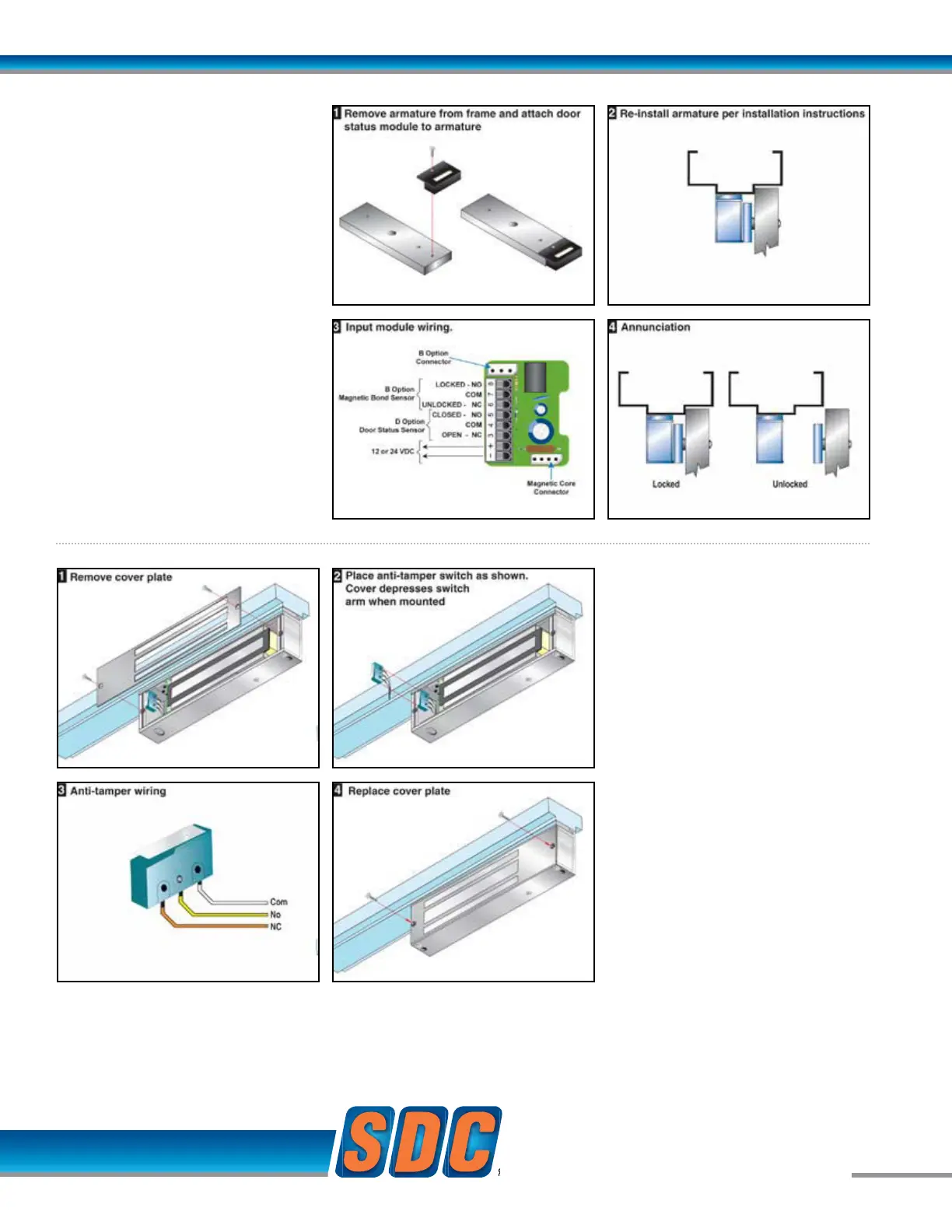

EZ-D-10: DOOR
POSITION SENSOR
Modular Kit
Indicates the door is open
and closed.
Application:
Door position status annunciation,
anti-tailgating, interlock, mantrap and
communicating bathroom system
logic.
Output:
SPDT Dry Contact, 250 mA
@ 12/24VDC
EZ-A: ANTI-TAMPER
SWITCH - Modular Kit
Indicates cover plate removal
Output:
SPDT Dry Contact, 3 Amp @ 12/24VDC
* Not available for 1513, 1573
