SECURITY DOOR CONTROLS
EZ Option Upgrade Kits - Emlock© 1512 / 1572
2

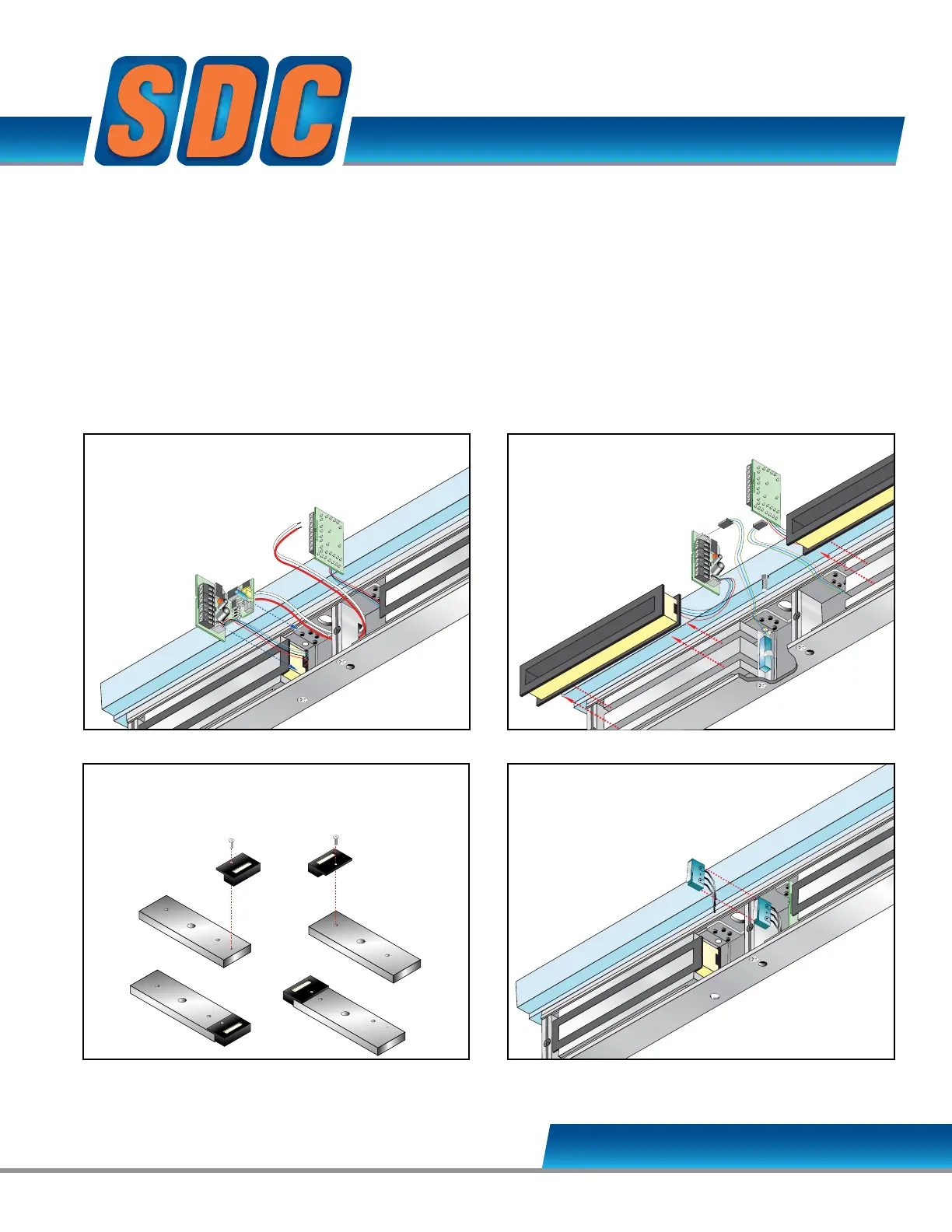

Re-install armature per installation instructionsAttach door status module to each armature
Remove cover plate
Place anti-tamper switch as shown.
Cover depresses switch
2
Attach magnetic core
wire connector to
timer module
Connect
output wires
of timermodule
to input terminals
1 and 2 of standards
input module.
5 6
Position timer modules
between posts
Cradle
Position Posts
9 Attach cover plate
T - Timer input
module
EZ-T-10 TIMER INPUT MODULE
Modular Kit
1 2
Re-install armature per installation instructionsAttach door status module to each armature
EZ-D-10: DOOR POSITION SENSOR
Modular Kit
EZ-A: ANTI-TAMPER SWITCH
Modular Kit
EMLock EZ Upgrade Kits
Field Upgradeable Option Modules for 1512 and 1572
SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution.
The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
Field Upgradeable by Distributors, Installers and Maintenance Staff
No need to ever remove a lock from the frame to upgrade or exchange
internal components.
FIELD UPGRADE
• Relock Delay Timer
• Magnetic Bond Sensor
• Door Status Sensors
• Anti-Tamper Switch
• Holding Force Upgrade
• Energy Saver Upgrade
9
Attach cover plate.
5
The Magnetic Bond
Sensor should be
positioned as shown
below, after step 4.
+
3
4
5
6
7
8
