SDC Exit Check 101-DE User Manual

P:\INSTALLATION INST\Delayed Egress\INST-101DE_KDE.vsd Rev F 05-16 Page 3

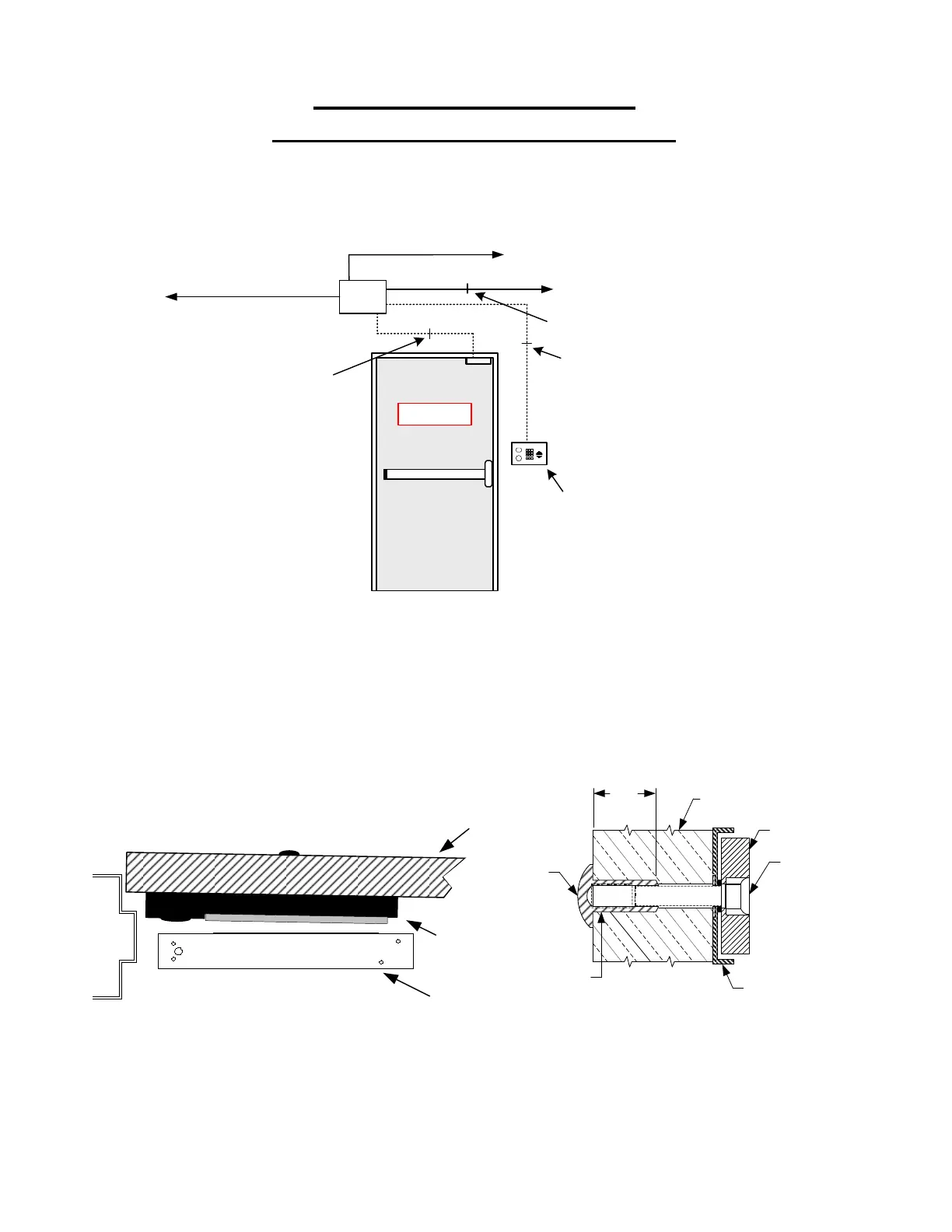

Typical System Wiring –
Single Door w/ Latching Hardware
WARNING:
APPLICATION OF VOLTAGE TO THE DRY CONTACT INPUTS OF THIS UNIT
WILL CAUSE PERMANENT DAMAGE AND VOID THE WARRANTY
Armature tray
assembly
Note: Armature assembly with tray
required for proper operation of the
trigger switch.
EMLock
Door
Mount magnet and armature
tray assembly per template
ARMATURE HOLDER
ARMATURE
1/2”
DOOR
1–1/4"
SEX NUT
5/16 – 18
ARMATURE
MOUNTING
SCREW
Models: 1511DE, 1571DE & 1581DE
101-DE
101-KDE
2 conductors
6 conductors
4 conductors
Power
Supply
To Fire Panel – Dry, Closed Contact
AC Mains
2 conductors
PUSH UNTIL ALARM
SOUNDS. DOOR CAN BE
OPENED IN 15 SECONDS.
To Smoke Detection
System – Dry, Closed
Contact
3 conductors
