SDC Exit Check 101-DE User Manual

P:\INSTALLATION INST\Delayed Egress\INST-101DE_KDE.vsd Rev F 05-16 Page 4

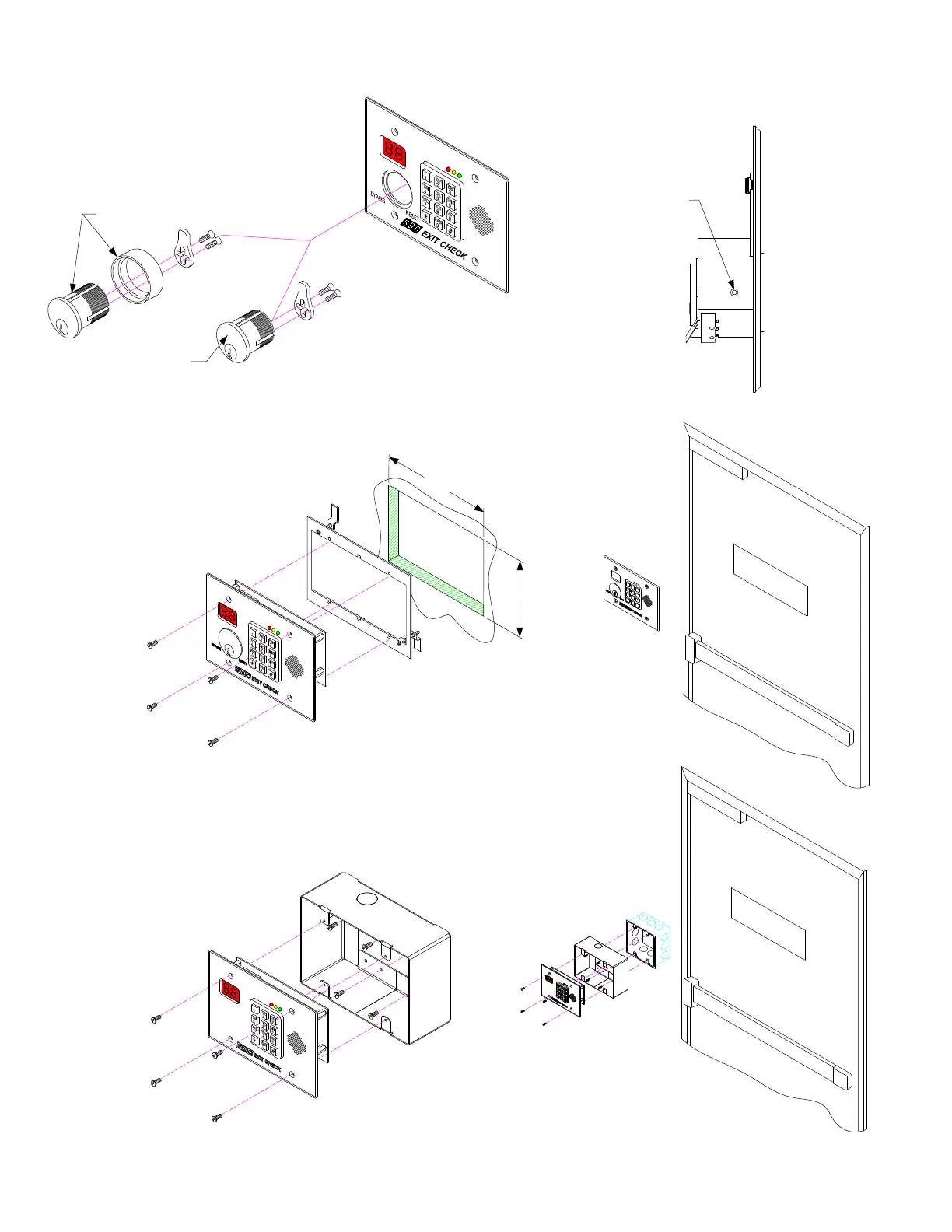

SURFACE MOUNT 3 GANG BOX OVER
EXISTING RECESSED 2 GANG BOX
2) Carefully insert unit and
secure with screws
supplied.
1) Attach optional 3 Gang Surface
Mount Box to existing recessed 2 gang
box using screws supplied.
P
U
S
H
U
N
T
I
L
A
L
A
R
M
S
O
U
N
D
S
.
D
O
O
R
C
A
N
B
E
O
P
E
N
E
D
I
N
1
5
S
E
C
O
N
D
S
.
RECESSED MOUNTING
DRY WALL
3-3/4"
P
U
S
H
U
N
T
I
L
A
L
A
R
M
S
O
U
N
D
S
.
D
O
O
R
C
A
N
B
E
O
P
E
N
E
D
I
N
1
5
S
E
C
O
N
D
S
.
KEY CYLINDER INSTALLATION
(KDE Model Only)
1) Cut hole in dry wall to
dimensions shown.
2) Mount wall bracket
over hole.
3) Carefully insert unit and
secure with screws
supplied.
5-3/4”
1-1/8” KEY CYLINDER
7185SC1-26D-KD
1-1/4” KEY CYLINDER
REQUIRES COLLAR
WITH KEY CYLINDER IN PROPER
POSITION INSIDE SWITCH BLOCK,
TIGHTEN THE SET SCREW TO
LOCK CYLINDER IN PLACE.
