P:\INSTALLATION INST\Delayed Egress\INST-101DE_KDE.vsd Rev F 05-16 Page 6

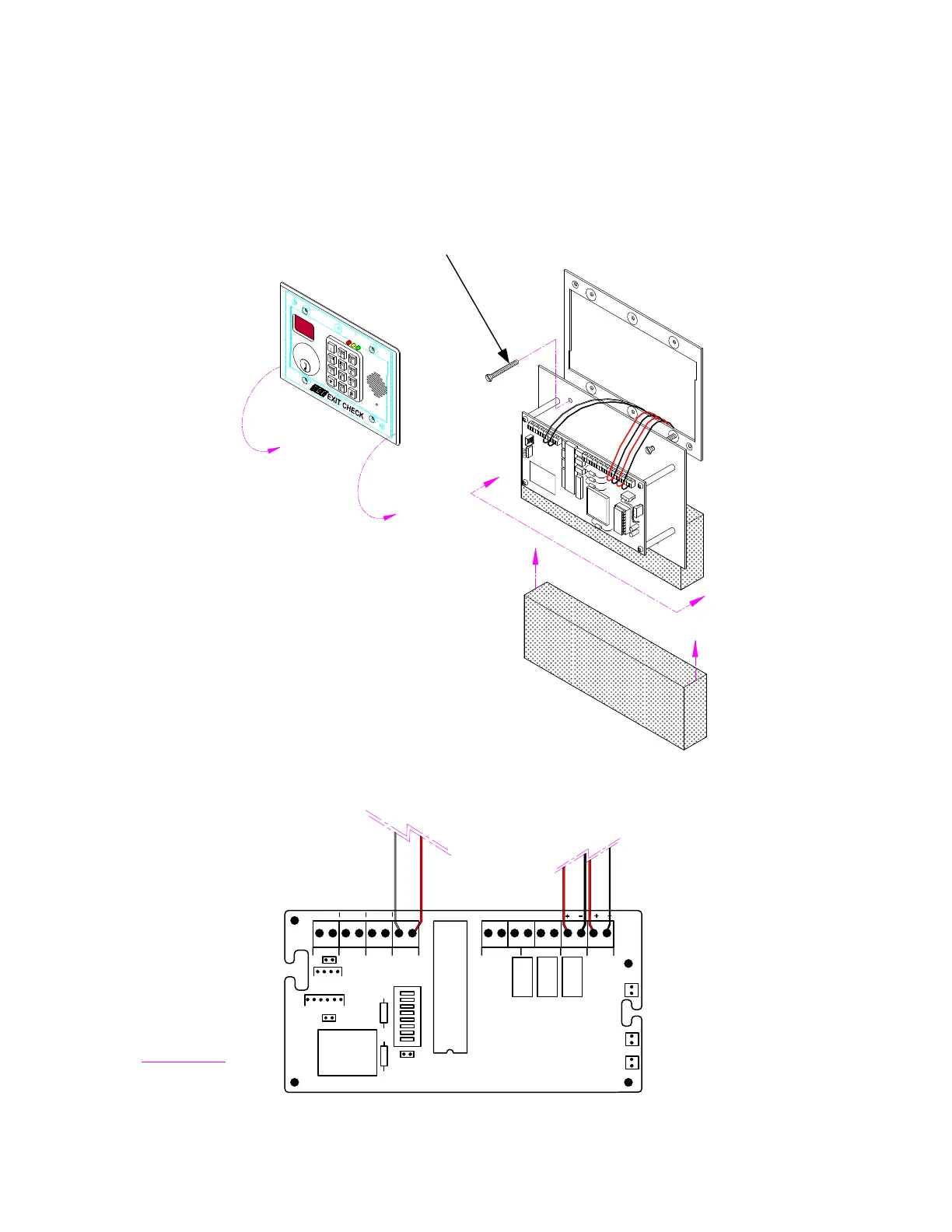

RECOMMENDED MOUNTING
PROCEDURE
A
A
SLIDE PACKING FOAM BETWEEN WALL
AND UNIT TO PREVENT DAMAGE TO FACEPLATE
USE 1-1/4” SCREWS SUPPLIED WITH
WALL MOUNT FRAME TO HANG UNIT
TEMPORARILY FOR WIRING PURPOSES
VIEW A-A
WIRE UNIT AS SHOWN
(SHOWN WITH NO OPTIONS).
REXTRIG RESET IBO
J4
J6
J1
KEYPAD
RESET
CNO C NO CNO
CNO
CNCNOCNCNO
PWR
LOCK RED RLY GRN RLY
SP1
