Programmer Mounting, 3-1/8” Style Programmer unit
Some people may choose to install the older panel mount programmer which fits in a standard 3 1/8
instrument cutout. Both programmers have dimmable internal backlighting of the LCD. Programmer
serial cables are available in 3, 6, 10 and 15 foot lengths. Unlike the Design1 programmer, this
programmer uses external switches for LOP activation and accessing A or B ECU.

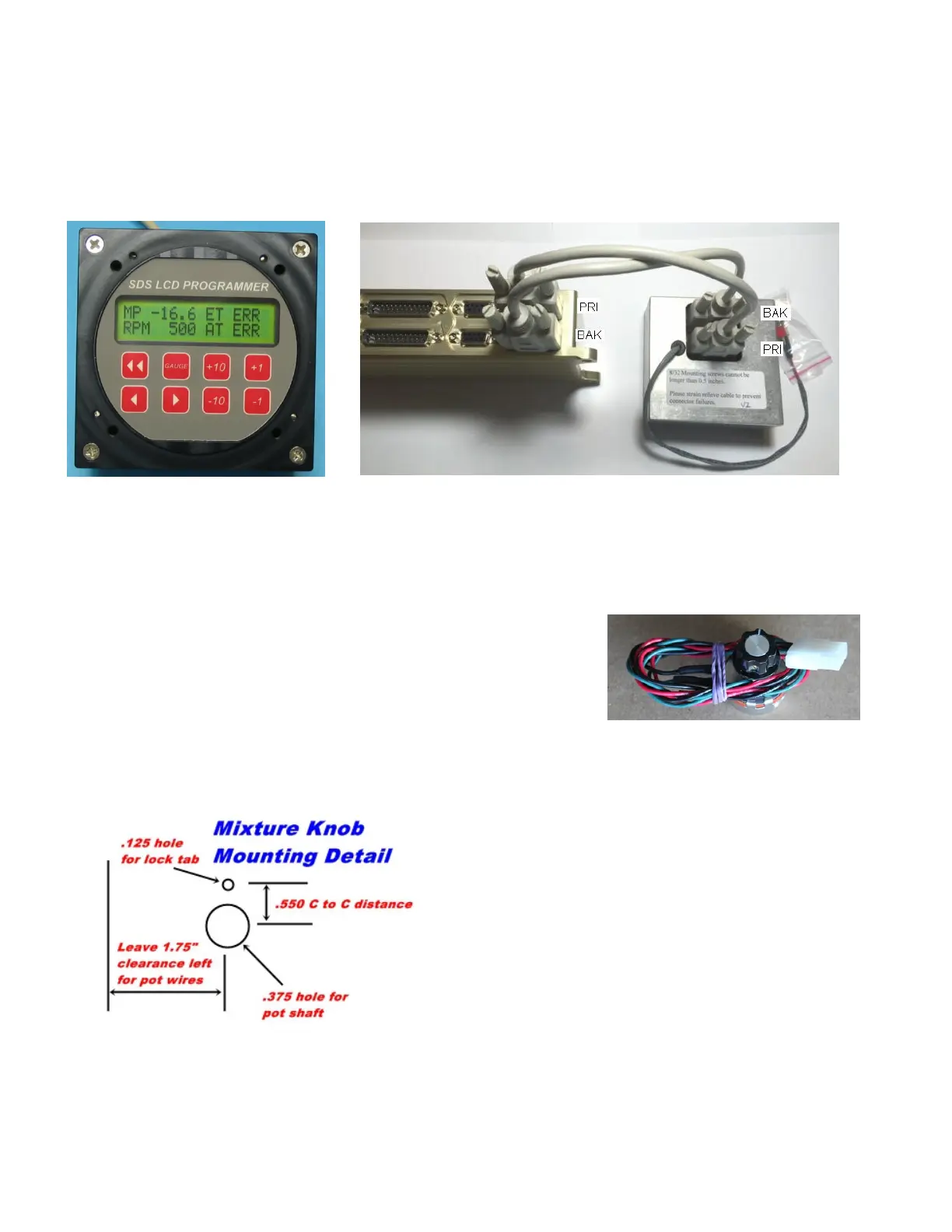

3-1/8” Programmer unit cable connections:
Dual board ECU with dual board 3 1/8 round programmer and toggle switch. See end programming
section for details.
Mixture knob Mounting
The mixture knob allows quick leaning and richening of the mixture
without any reprogramming. It can be used to lean the engine in
cruise if you run LOP. Think of it as a conventional mixture control.
We recommend that it’s always permanently installed as it
gives the user important override control in the event of some
sensor and fuel system malfunctions. Try to mount it in such a
way and location where it cannot be inadvertently be bumped. The tang should engage a 1/8 inch hole
vertically above the main 3/8 inch diameter mounting hole in the panel. This indexes it properly for full
range control (+/- 50%).
