Sea-doo Spark Series User Manual

108
LLHH AACCCCEESSSS CCOOVVEERR

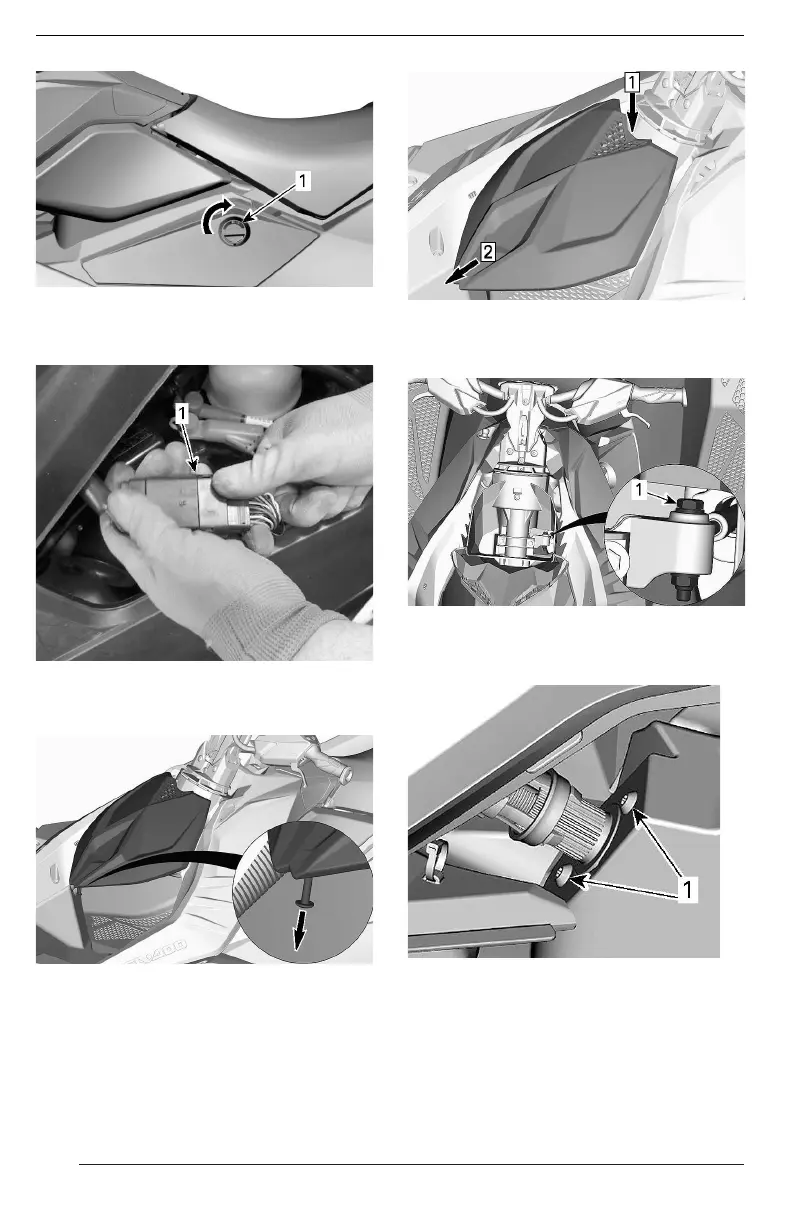

1. To unlock, turn the knob 1/4 turn clockwise
2. Disconnect the steering connector.
1. Connector
3. Remove the front trim retaining
screw.
4. Remove the front trim.
1. Push tab
2. Slide towards front
5. Disconnect the steering cable.
1. Steering cable retaining bolt
6. Remove two screws from the cable
assembly.
1. Cable assembly screws
7. Remove nut, bolt, and washer to
disconnect rod from steering
column.
MAINTENANCE PROCEDURES

Sea-doo Spark Series Specifications

General

Displacement	899 cc
Hull Material	Polytec
Model	Spark, Spark Trixx
Engine Type	Rotax 900 ACE
Horsepower	60 hp / 90 hp
Fuel Type	Gasoline
Fuel Capacity	7.9 US gal (30 L)
Seating Capacity	2 or 3
Length	120 inches (305 cm)
Width	46 in (117 cm)
