Sea-doo Spark Series User Manual

109

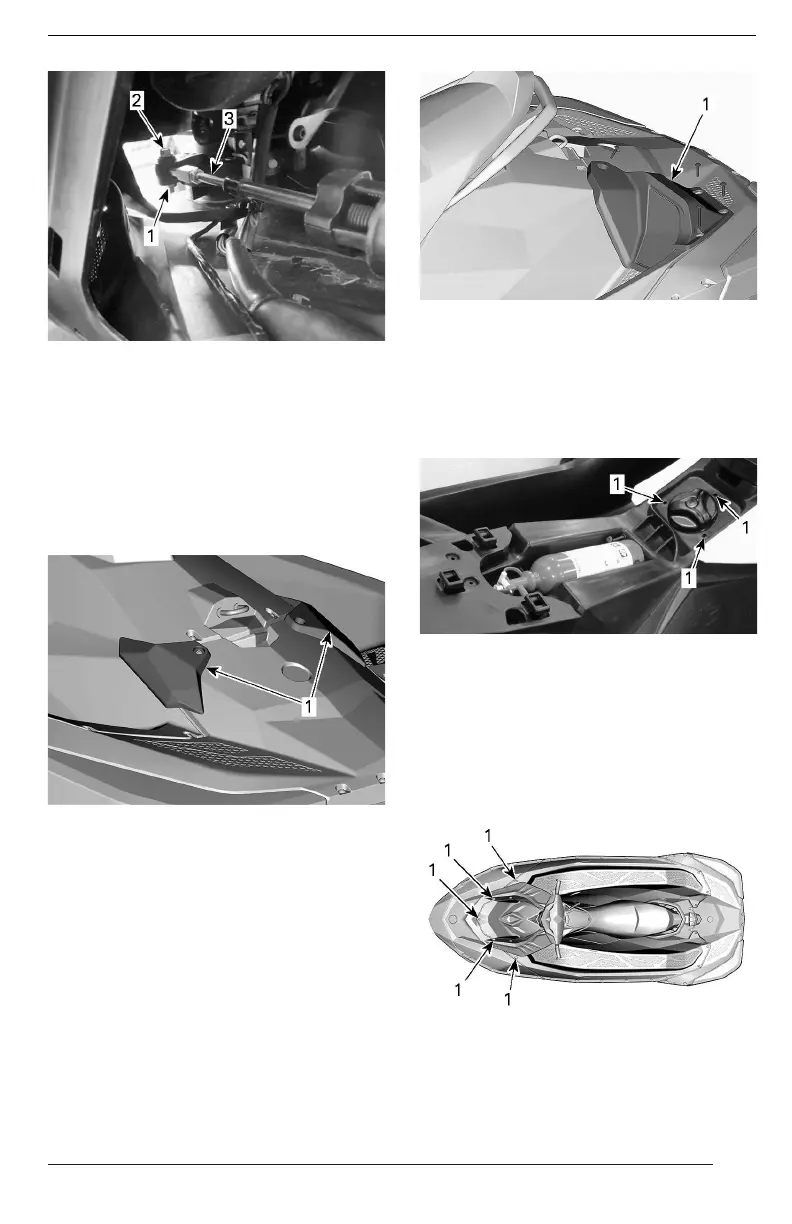

1. Nut and washer
2. Bolt
3. Rod
AAllll MMooddeellss EExxcceepptt TTrriixxxx MMooddeellss
8. Remove two self-tapping screws
from each rear panel trim at rear of
vehicle.
9. To remove the rear panel trims,
slide trims towards the outside of
PWC.
TTYYPPIICCAALL
1. Rear panel trims
TTrriixxxx MMooddeellss
10.Remove both rear footrests.
LLHH SSHHOOWWNN
1. Footrest
AAllll MMooddeellss
11.Remove seat. Refer to
Seat in
Equipment .
12.Remove three self-tapping screws
around the fuel cap
1. Screws
13.Remove five self-tapping screws
at front of central body.
NNOOTTEE::
If equipped with a storage bin, open
the storage bin first. Refer to
Storage
Bin
.
1. Self-tapping screws
14.Remove six self-tapping screws at
rear of central body.
MAINTENANCE PROCEDURES

Sea-doo Spark Series Specifications

General

Displacement	899 cc
Hull Material	Polytec
Model	Spark, Spark Trixx
Engine Type	Rotax 900 ACE
Horsepower	60 hp / 90 hp
Fuel Type	Gasoline
Fuel Capacity	7.9 US gal (30 L)
Seating Capacity	2 or 3
Length	120 inches (305 cm)
Width	46 in (117 cm)
