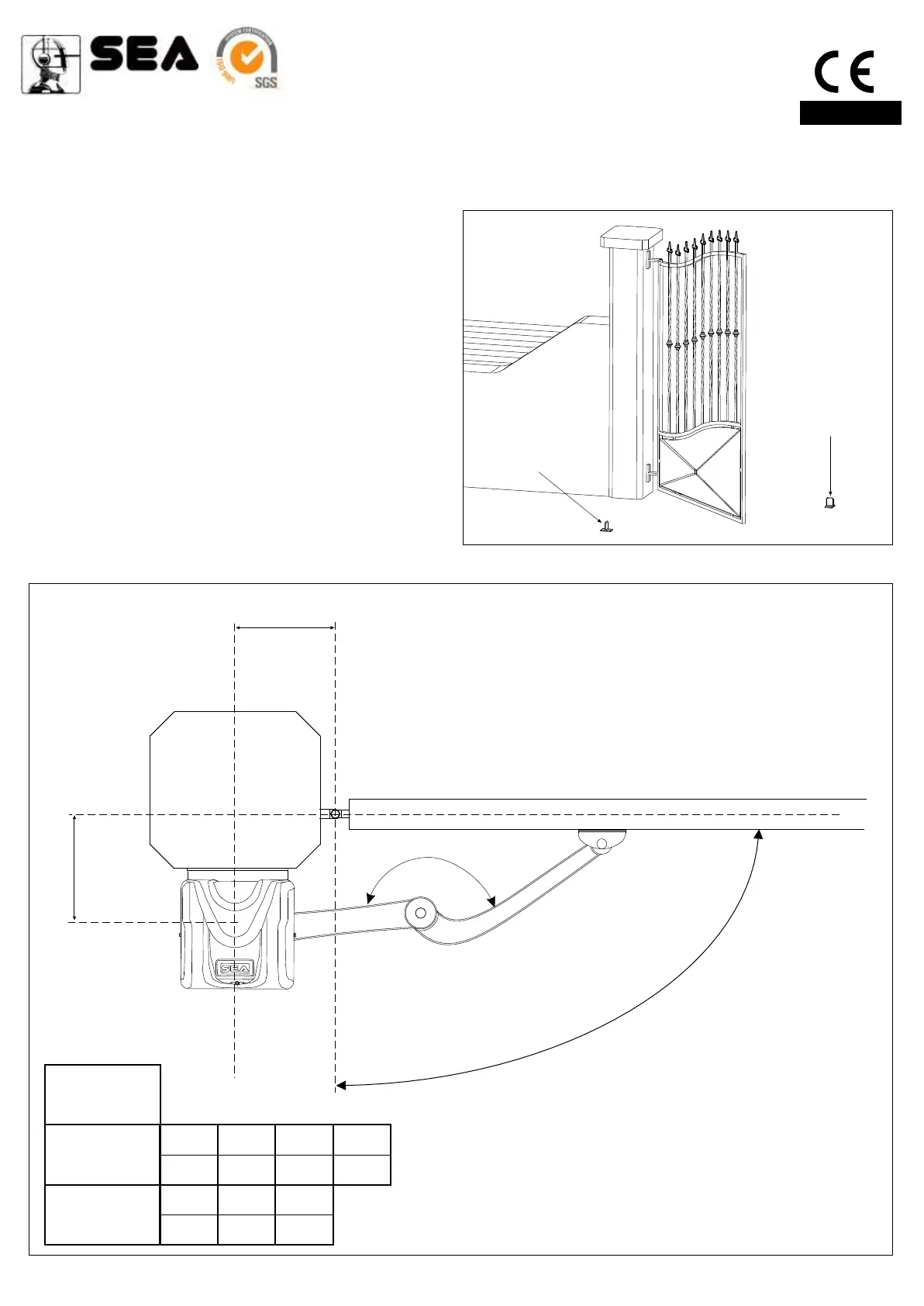

1. GATE ARRANGEMENT
It is necessary to make controls on the gate to make sure the application of ARM automation can be possible.
Make sure that:
Fig. 3
Limit Switch stop
in opening
Limit Switch stop
in closing
A. the gate fixed and moving parts have a strong and crush-
proof structure;
B. the length of each leaf is not over 1,8 meters;
C. the weight of each leaf is not over 180 Kg;
D. the hinges are hardly anchored and are able to support the
torque of the operator; they do not have irregular movements
and/or any friction during the whole movement of the leaf;
The ARM operator comes with limit switch stop in opening,
nevertheless it is recommended to install mechanical limit
switch stops to be fixed on the ground in closing and opening
(Fig. 3).
ARM
FITTING AND CONNECTION INSTRUCTIONS
A
B
A
B
90°
110°
150
200
150
200
200
150
200
220
250
150
Fig. 4
DIMENSIONS FOR THE INSTALLATION
PC: Point of central rotation
Opening angle
"
B
"
A
Min 150 mm
PC
130°
ENGLISH
REV 05 - 10/2007
