Fig. 5
Sistemi elettronici
di Aperture Porte e Cancelli
ARM
FITTING AND CONNECTION INSTRUCTIONS

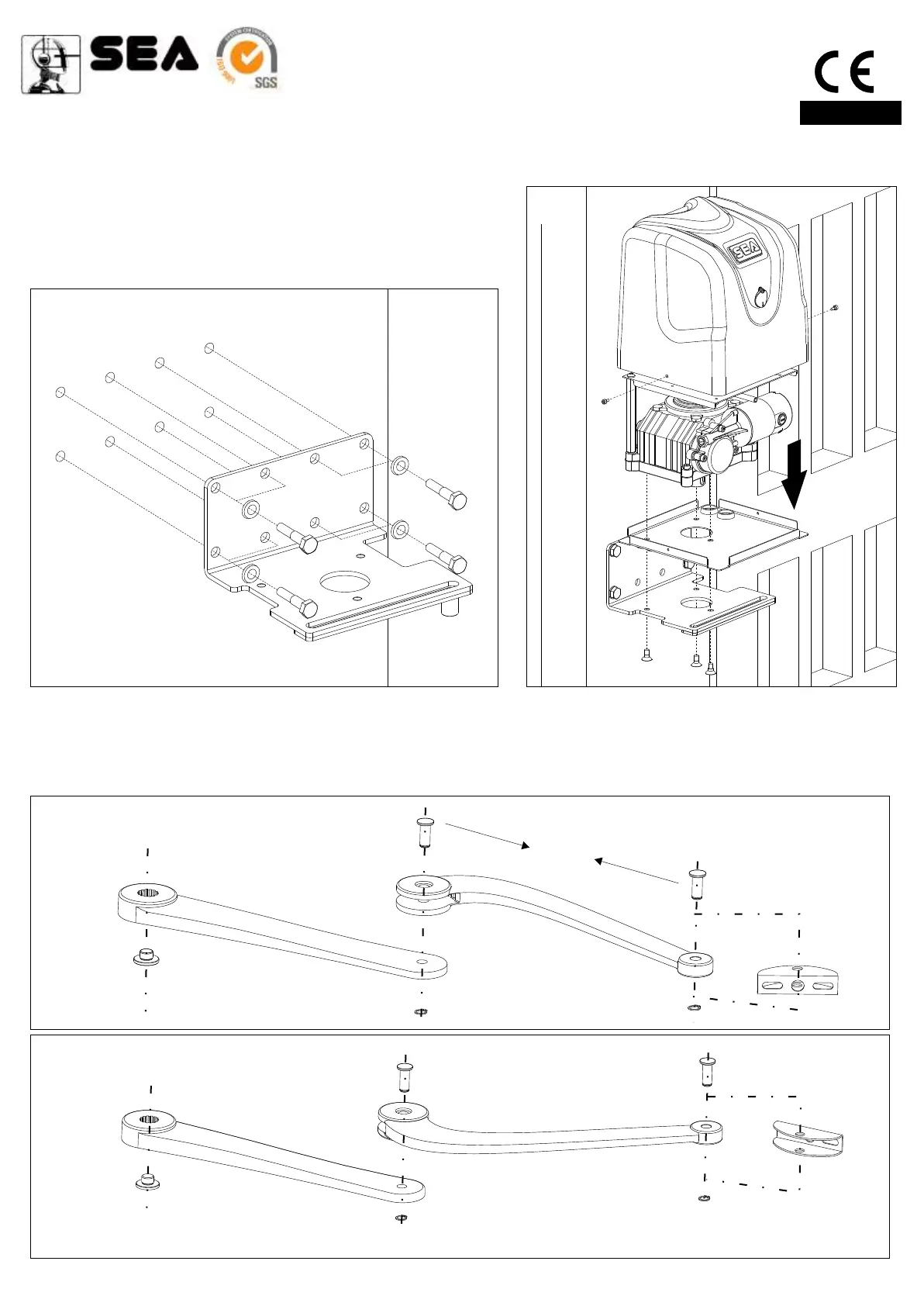

MOUNTING PLATE ATTACHMENT AND MOUNTING OF THE MOTOR
- Attach the mounting plate to the pilaster with 4 screws and 4 washers
(Fig. 5). Make sure that the plate is positioned perfectly levelled.
- Mount the motor on the plate using the 3 furnished screws and
successively mount the carter, fixing it laterally with the 2 furnished
screws (Fig. 6)
- The two articulated arms must be assembled differently, distinguishing the right arm from the left one.
See Fig. 7 and 8.
Note: Before inserting the pivots lubricate them with water repellent grease
ASSEMBLING OF THE ARTICULATED ARM
RIGHT HAND MOUNTING
LEFT HAND MOUNTING
Fig. 7Fig. 7
Fig. 8Fig. 8
PIVOTS
ENGLISH
REV 05 - 10/2007
Fig. 6
