FITTING AND CONNECTION INSTRUCTIONS
FIXING OF THE FRONT BRACKET
- Close the leaf completely
- Release the motor (see next paragraph)

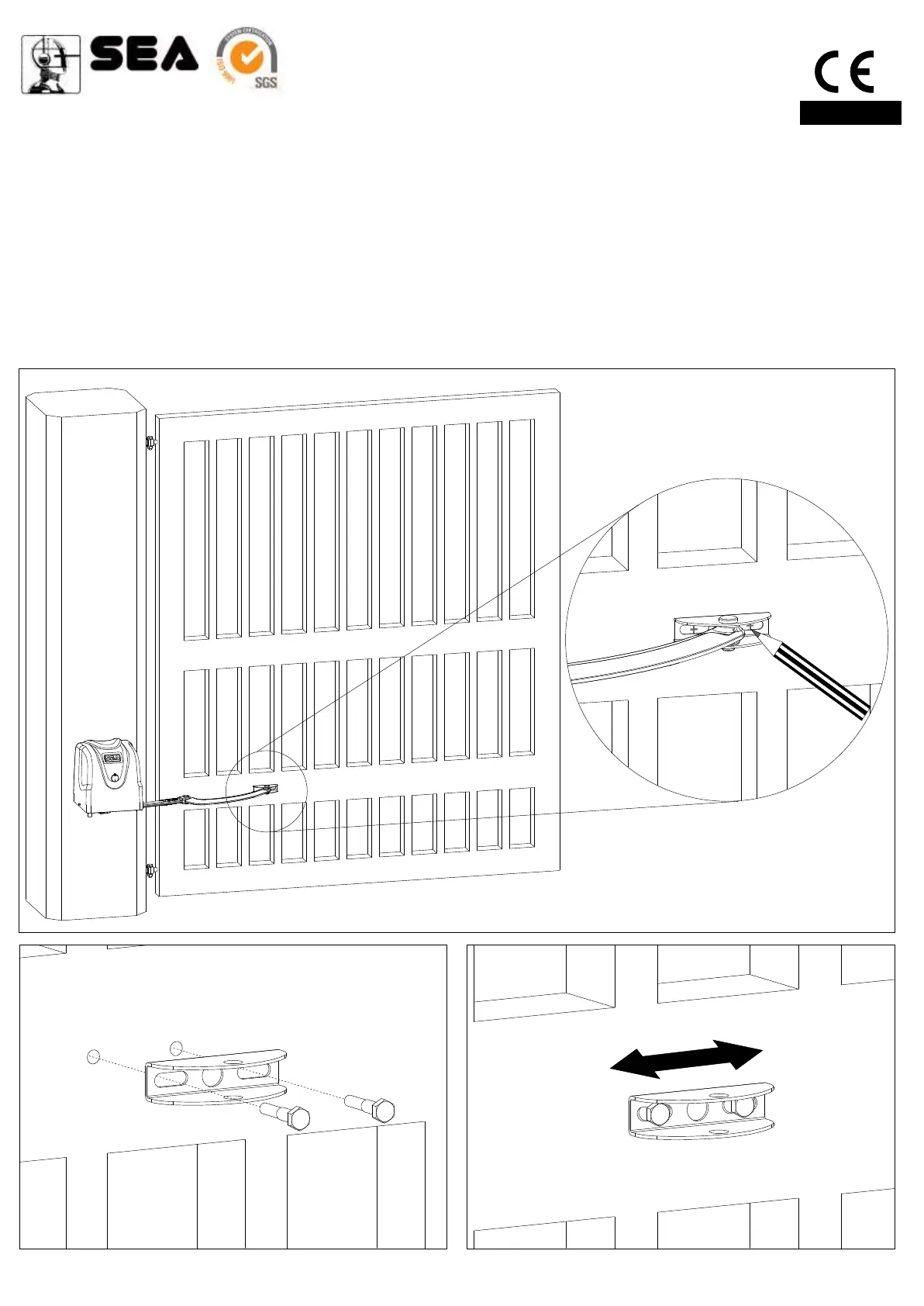

- Extend the articulated arm as in Fig. 4, lean the adjustable front bracket on the gate and make two marks on the centre of the two
buttonholes (Fig. 11)
- Perforate the leaf and attach the front bracket with the screws (Fig. 12)
- Before tightening the screws move the front bracket to the right or to the left for a good positioning of the arm on the gate (Fig. 13)
Fig. 11
Fig. 12 Fig. 13
