SEA FLIPPER - Mounting Plate and Motor Mounting; Assembling the Articulated Arm

Fig. 9
Fig. 11
Fig. 12
Fig. 10
FLIPPER
A
B
0m8 m
42 mm

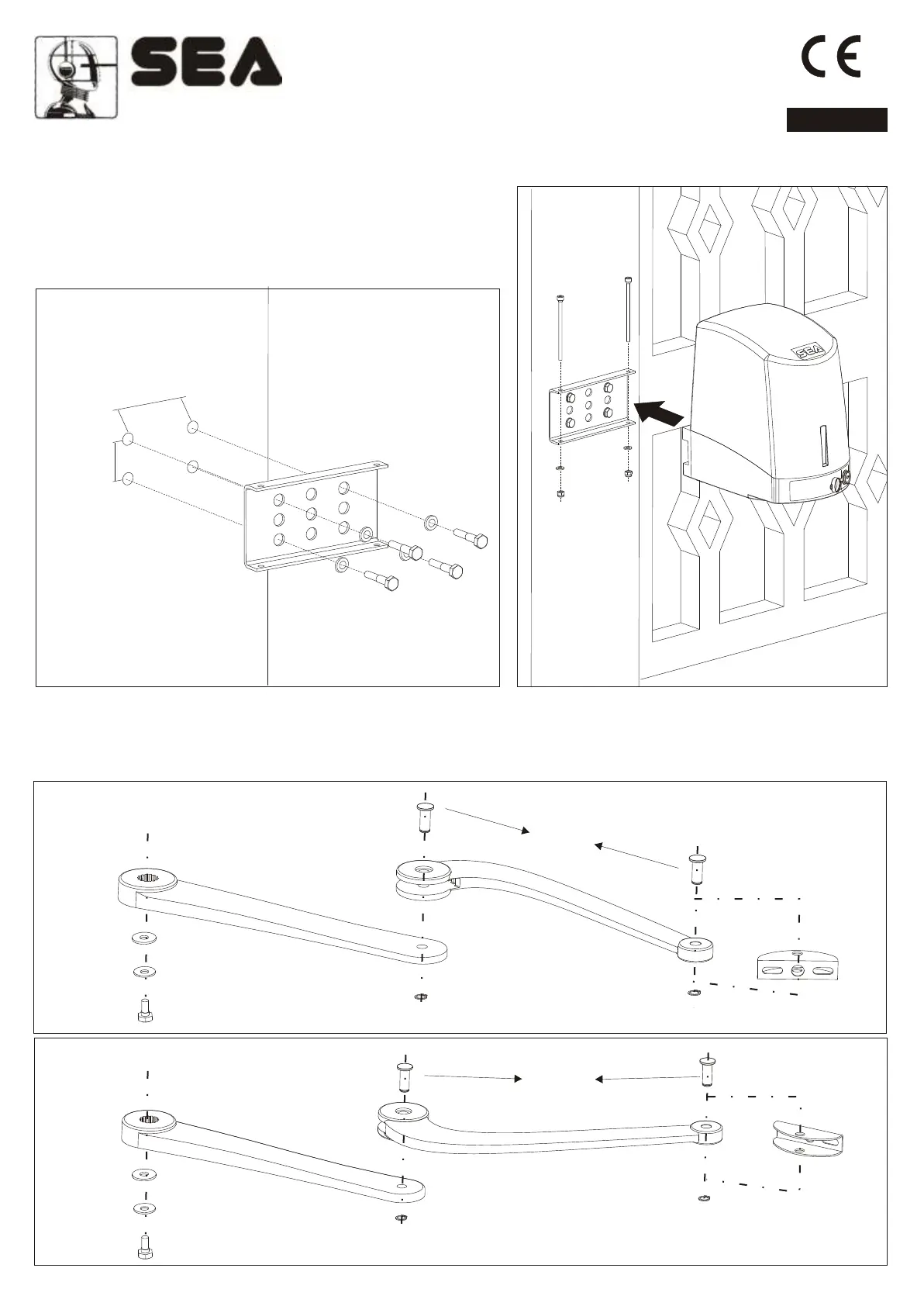

MOUNTING PLATE ATTACHMENT AND MOUNTING OF THE MOTOR
- Attach the mounting plate to the pilaster with 4 screws and 4
washers not included (Fig. 9).
- Make sure that the plate is in horizontal position (with level).
- Mount the motor on the plate using the 2 furnished screws.
- The two articulated arms must be assembled differently, distinguishing the right arm from the left one.
See Fig. 11 and 12.
Note: Before inserting the pivots lubricate them with water repellent grease
ASSEMBLING OF THE ARTICULATED ARM
RIGHT HAND MOUNTING
LEFT HAND MOUNTING
PIVOTS
PIVOTS
FITTING AND CONNECTION INSTRUCTIONS
ENGLISH
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
20 REV 02 - 03/2009
