SEA VELA - Technical Features; Installation Instructions; Spring Position and Mounting

Supply voltage
Force absorption
Opening/closing time
Thermoprotection
Oil quantity
Max. Beam length
Protection degree
Start condensator
Absorbed power
Working temperature
Manual release system
Usage frequency
Holding block
Slowdown
Barrier body treatment
Weight
Electronic equipment
: 230 V~ ± 5% - 50/60 Hz
: 220W
: 3,5 - 7,5 s
: 130°
: 1,8 L
: 5 m
: Ip55
: 12,5 uF
: 1,1 A
: -20°C/55°C
: yes
: 75%
: yes
: hydraulic (on request)
: Cataphoresis treated
and polyester painted
: 42 kg
: GATE 1 (cod. 23001120/1)
Technical features

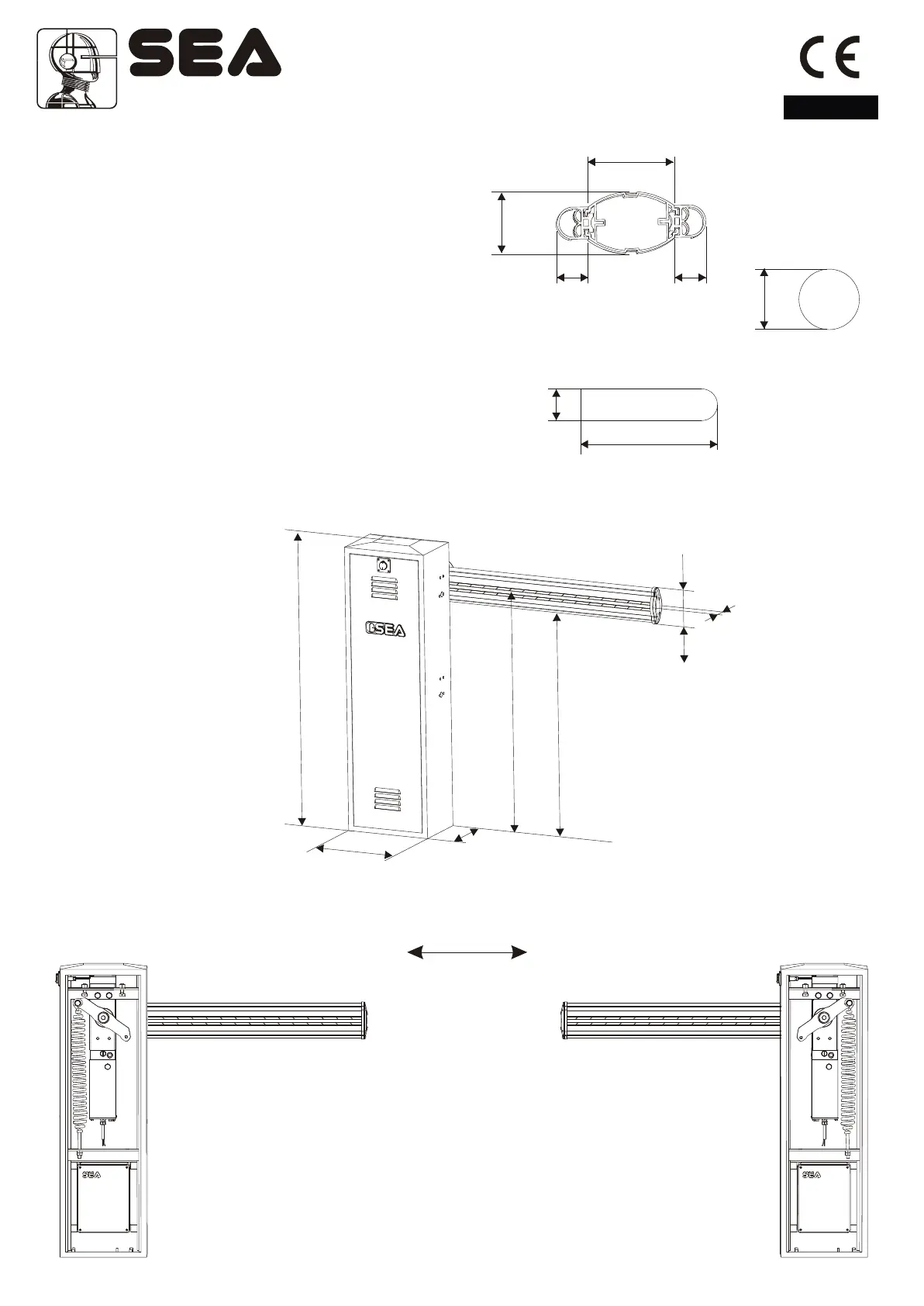

Overall dimensions:
85 (B am rotation axis0 e )
Round beam
profile
Rectangular beam
profile
English
INSTALLATION INSTRUCTIONS
1) Spring position
Thanks to its high flexibility, the barrier you are installing can be closed on the
right-hand or left-hand side of the post, according to your needs.
e.g. if the spring is on the right-hand side, the guard closes on the left (see Fig. 2).
Left-hand mounting
Right-hand mounting
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
Oval beam
profile
Fig.1
Fig.2
