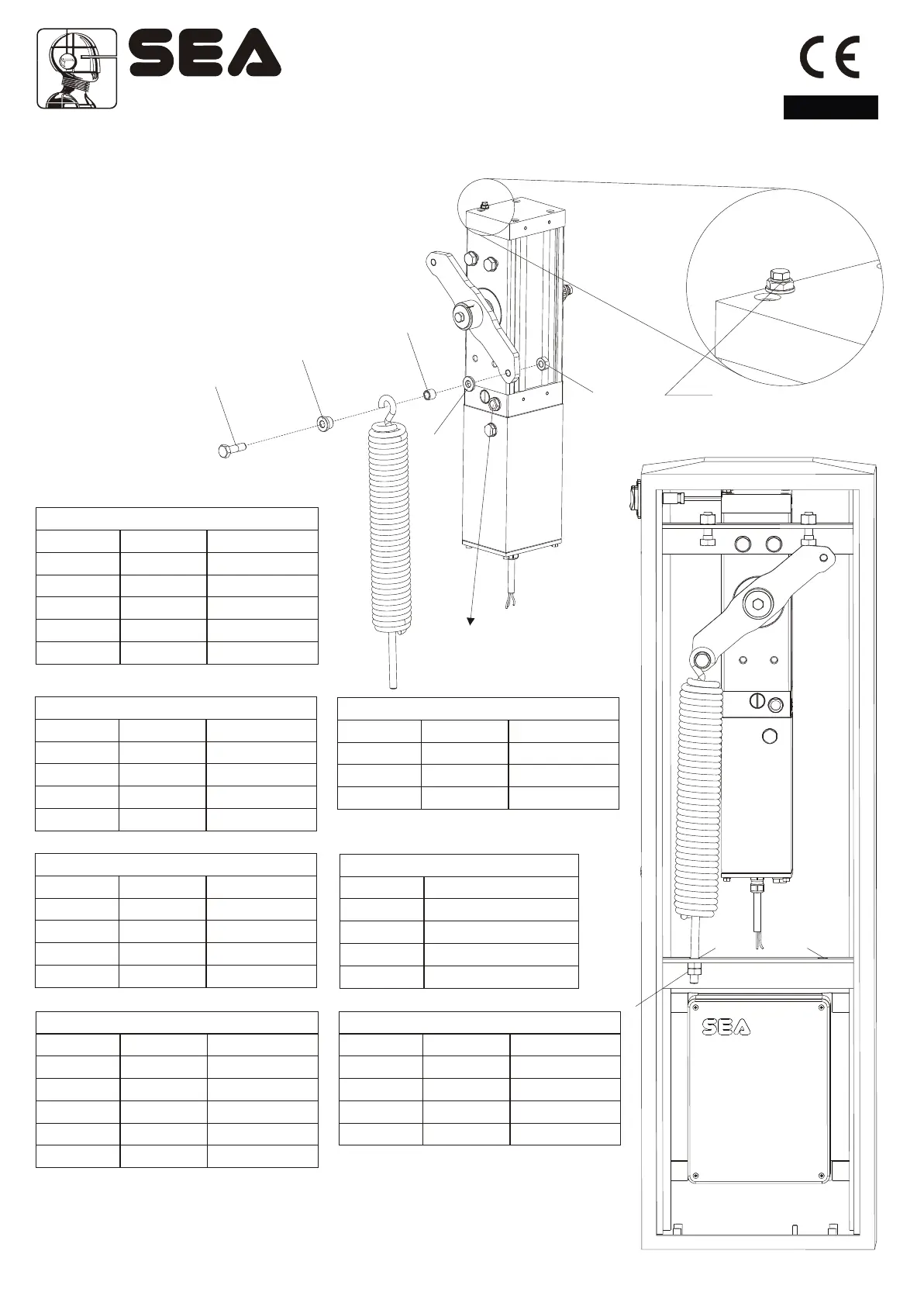

5) Mounting of the spring
-Insert the connecting rod of the spring into the hole (A or B) and
insert the dice (D) without locking them (Fig.6).
Fig.6
Note: The springs and the bracket of anchorage are supplied with the beam
Fig.5
A
B
D
Round beam
Barrier Length D. Spring Cod. kit beam
2 5 mm 11910045
2.5 5,5 mm 11910050
3 6 mm 11910055
4 6,5 mm 11910060
5 7 mm 11910065
Rectangular beam
Barrier Length D. Spring Cod. kit beam
2 5,5 mm 12710180
3 6 mm 12710185
4 7 mm 12710190
5 8 mm 12710195
Rectangular beam + skirt
Barrier Length D. Spring Cod. kit beam
3 6,5 mm 12710091
3,5 7 mm 12710092
4 8 mm 12710093
Articulated beam dx sx
Barrier Length D. Spring Cod. kit beam
3 7 mm 11902010
3 7 mm 11902020
3,5 8 mm 11902005
3,5 8 mm 11902015
Opening times
Pump Opening time
1 7,5 s
1,5 5,0 s
2 3,5 s
2 speed 2,5 s
4) Fixing of the spring on the rocker arm
- Insert with care the roller bearing (C) in the buckle (B) and execute the assemblage as Fig. 5.
- Lubricate with grease the bearing and the washers.
- Mount the resting devices as shown in Fig. 5
- At the end of installation take off the breather screws.
A
B
C
D
E
Breather screw
Before putting in function
replace the fill in cap with
the breather cap
English
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
Oval beam
Barrier Length D. Spring Cod. kit beam
2 5,5 16400005
2,5 6 16400008
3 6 16400008
4 7 16400015
5 8 16400026
Oval beam + skirt
Barrier Length D. Spring Cod. kit beam
2 5,5 16400005
2,5 6 16400008
3 6,5 16400010
4 8 16400026
